all oiling points. Then place a piece of fabric under the work clamp, prefer
ably remove the bobbin cose cap, and run the machine a short while
without being threaded. This done, apply sewing machine oil at all oiling
points (see Section 12).
In order to reach the oiling points in the machine bed, open the catch o;f
the belt guord, tip the belt guard back, tilt over the head of the machine
to the left and rest it carefully on the wooden machine rest pfini.
The oiling points ore marked by arrows in the illustrations and, as far as
feasible, are marked with red pqint and the work "OEL" on the machine.
UlUUIBBSf

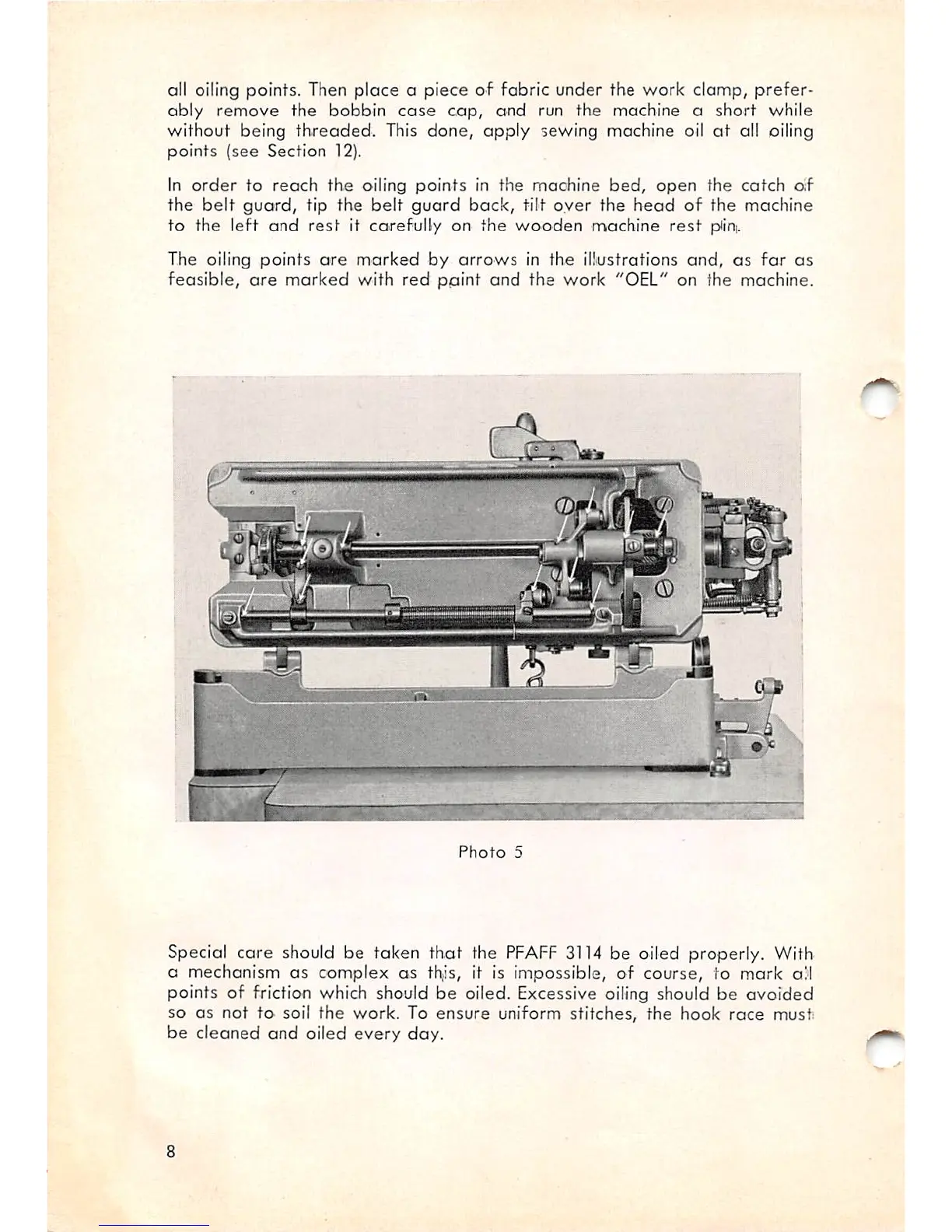

Photo 5
Special care should be taken that the PFAFF 3114 be oiled properly. With
a mechanism as complex as th,is, it is impossible, of course, to mark all
points of friction which should be oiled. Excessive oiling should be avoided
so as not to soil the work. To ensure uniform stitches, the hook race must
be cleaned and oiled every day.
