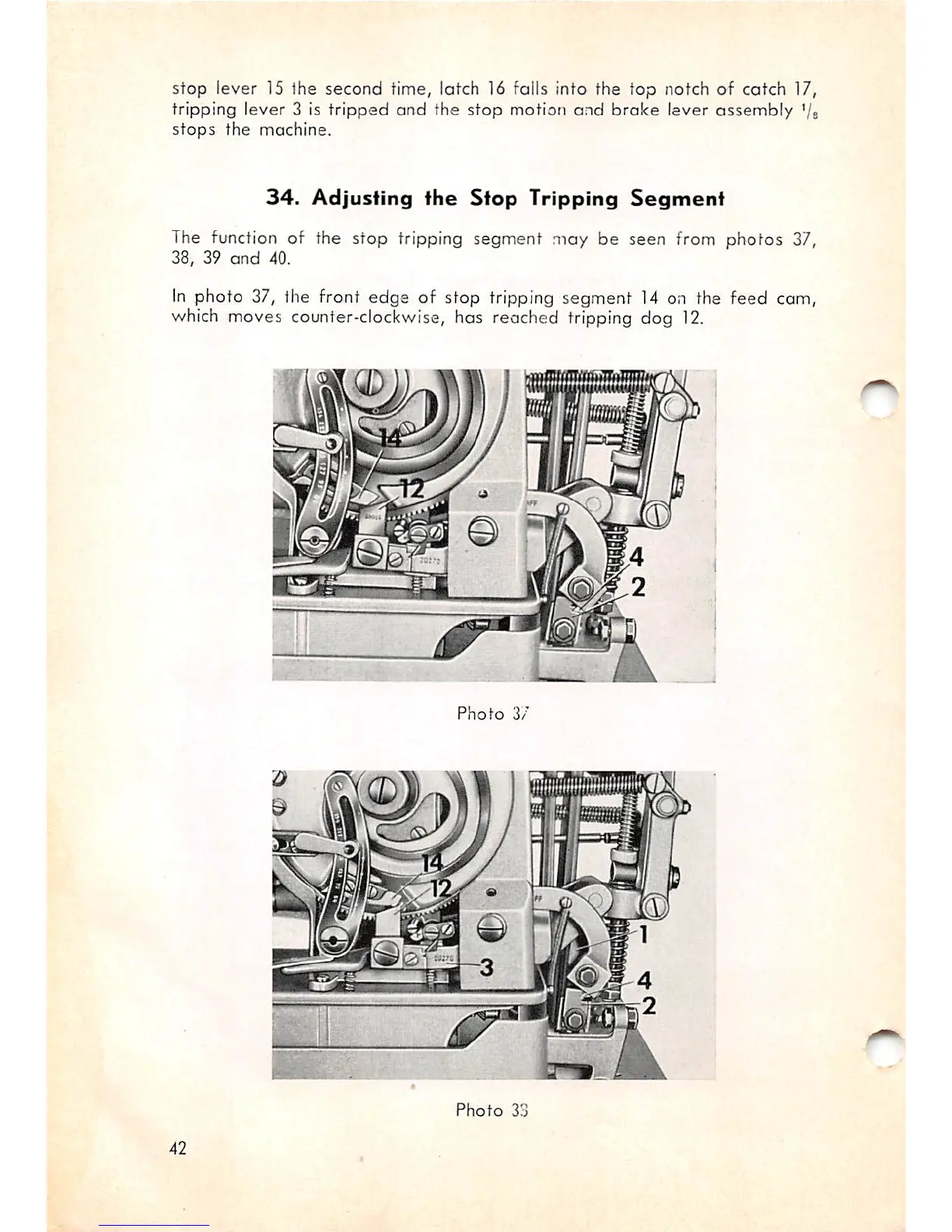

stop (ever 15 the second time, latch 16 falls into the top notch of catch 17,
tripping lever 3 is tripped and the stop motion and brake lever assembly '/a
stops the machine.
34. Adjusting the Stop Tripping Segment
The function of the stop tripping segment may be seen from photos 37,
38, 39 and 40.
In photo 37, the front edge of stop tripping segment 14 on the feed cam,
which moves counter-clockwise, has reached tripping dog 12.
Photo 3/
Photo 33
42
