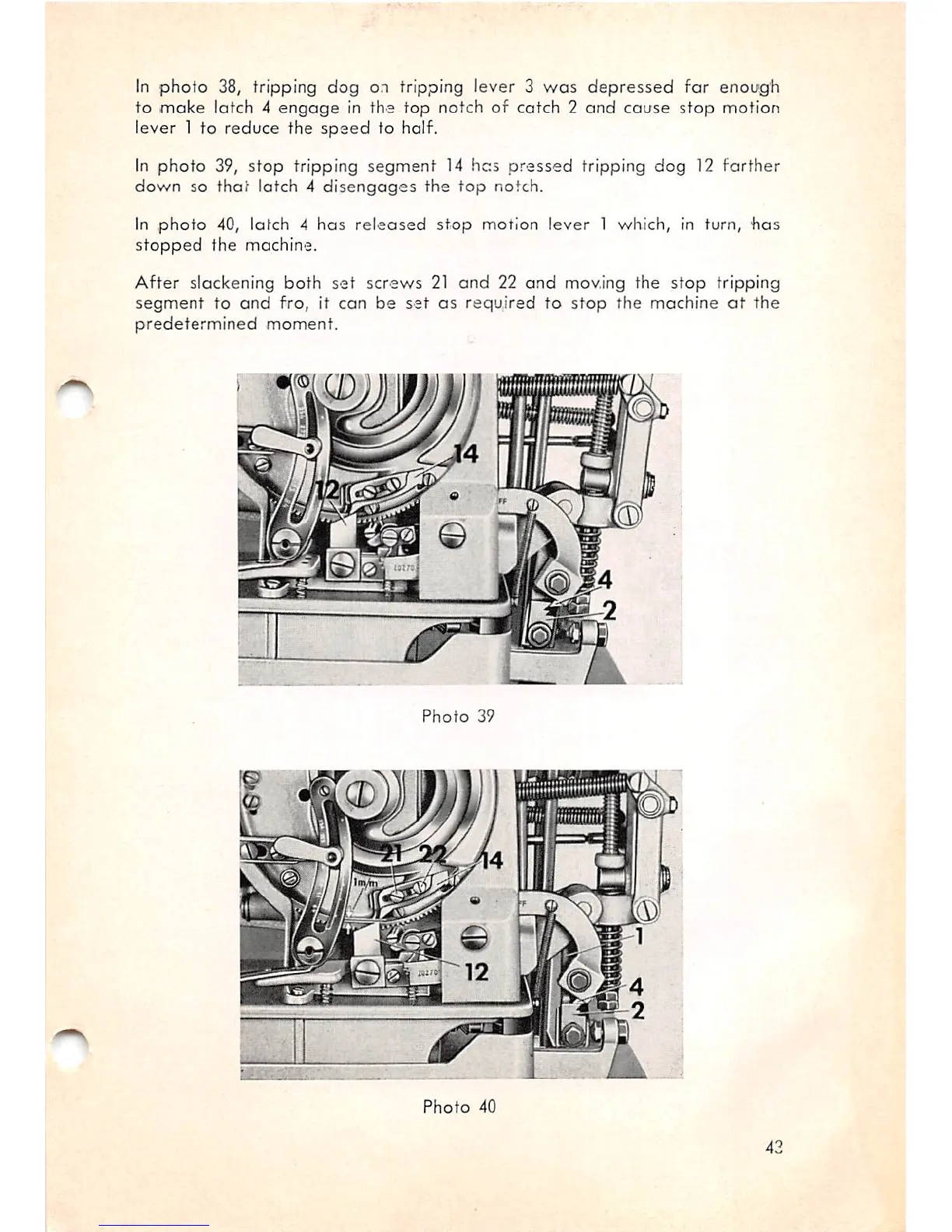

In
38, tripping dog on tripping lever 3
was
depressed
for enoi/g'h
to moke iotch 4
engage
in the top notch of catch 2
and
cause
stop
nnotion
lever 1 to
reduce
the
speed
to half.
In
39,
stop
tripping
segment
14
has
pressed
tripping
dog
12
farther
down
so
that
latch
4
disengages
the
top
notch.
In
40, latch 4
has
released
stop
motion
lever
1 which, in turn,
has
stopped
the machine.
After
slackening
both
set
screws
21
and
22
and
moving
the
stop
tripping
segment
to
and
fro, it con
be
set
as
required
to
stop
the machine
at
the
predetermined
moment.
n.
39
w
CD
m.
40
43
