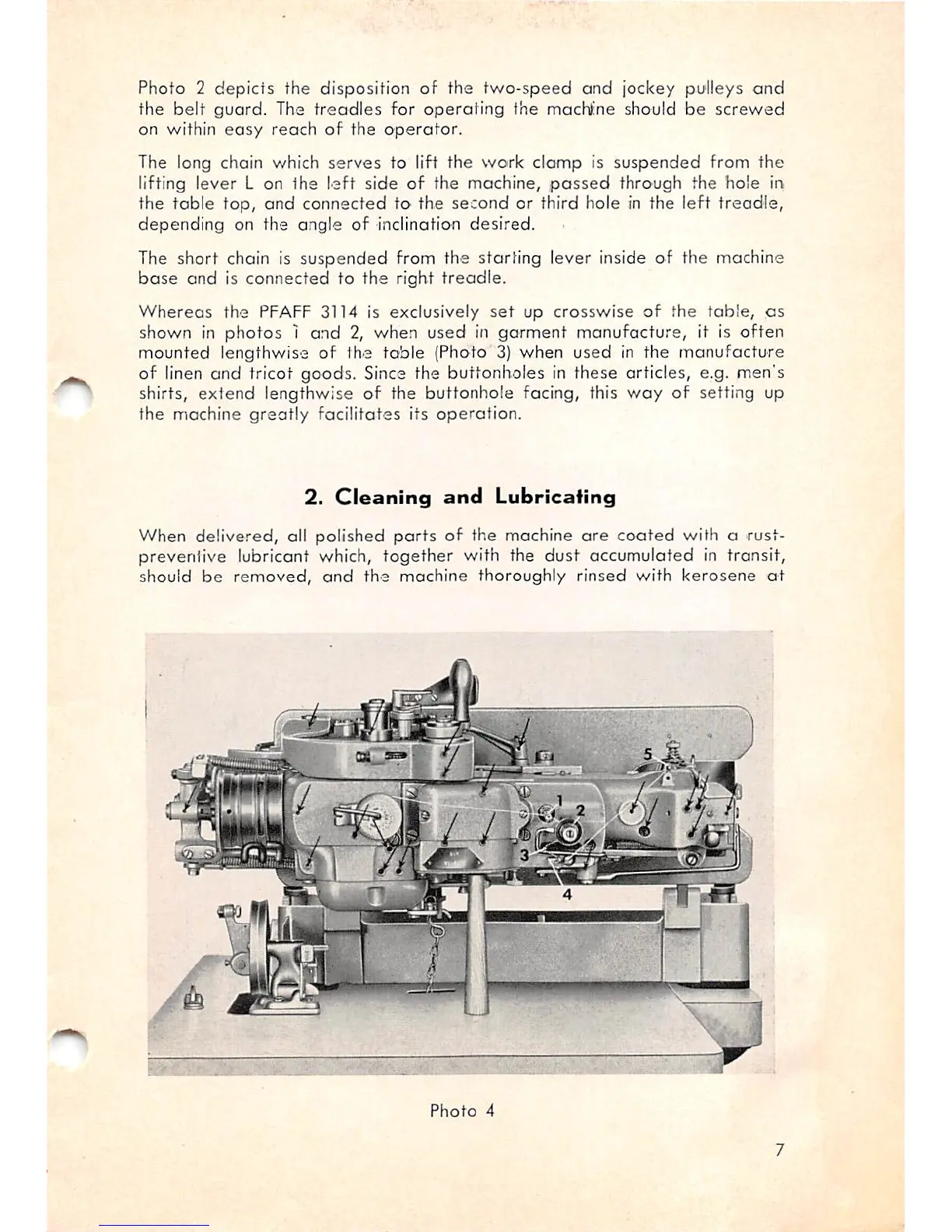

2
depicts
the
disposition
of
the
two-speed
and
jockey
pu'Ileys
and
the belt guard. The
treadles
for
operating
the macNine should be
screwed
on within
easy
reach
of
the
operator.
The long chain which
serves
to lift the
work
clamp
is
suspended
from
the
lifting lever L on the
left
side
of
the machine,
passed
through the
hole
ir>
the
toble
top,
and
connected
to
the
second
or third hole in the
left
treadle,
depending
on the angle
of
inclination
desired.
The short chain is suspended from the starting lever inside of the machine
base
end
is
connected
to
the
right
treadle.
Whereas
the
PFAFF 3114 is
exclusively
set
up
crosswise
of
the
table,
as
shown in
photos
1
and
2,
when
used
in
garment
manufacture,
it is
often
mounted
lengthwise of the
toble
(Photo 3)
when
used
in the
manufacture
of linen and tricot goods. Since the buttonholes in these articles, e.g. men's
shirts,
extend
lengthwise of the buttonhole facing, this
way
of setting up
the machine
greatly
facilitates
its
operotion.
2.
Cleaning
and
Lubricating
When
delivered,
all
polished
parts
of
the machine
are
coated
with a rust-
prevenlive
lubricant which,
together
with the
dust
accumulated
in transit,
should be
removed,
and
the machine thoroughly rinsed with
kerosene
ot
4
