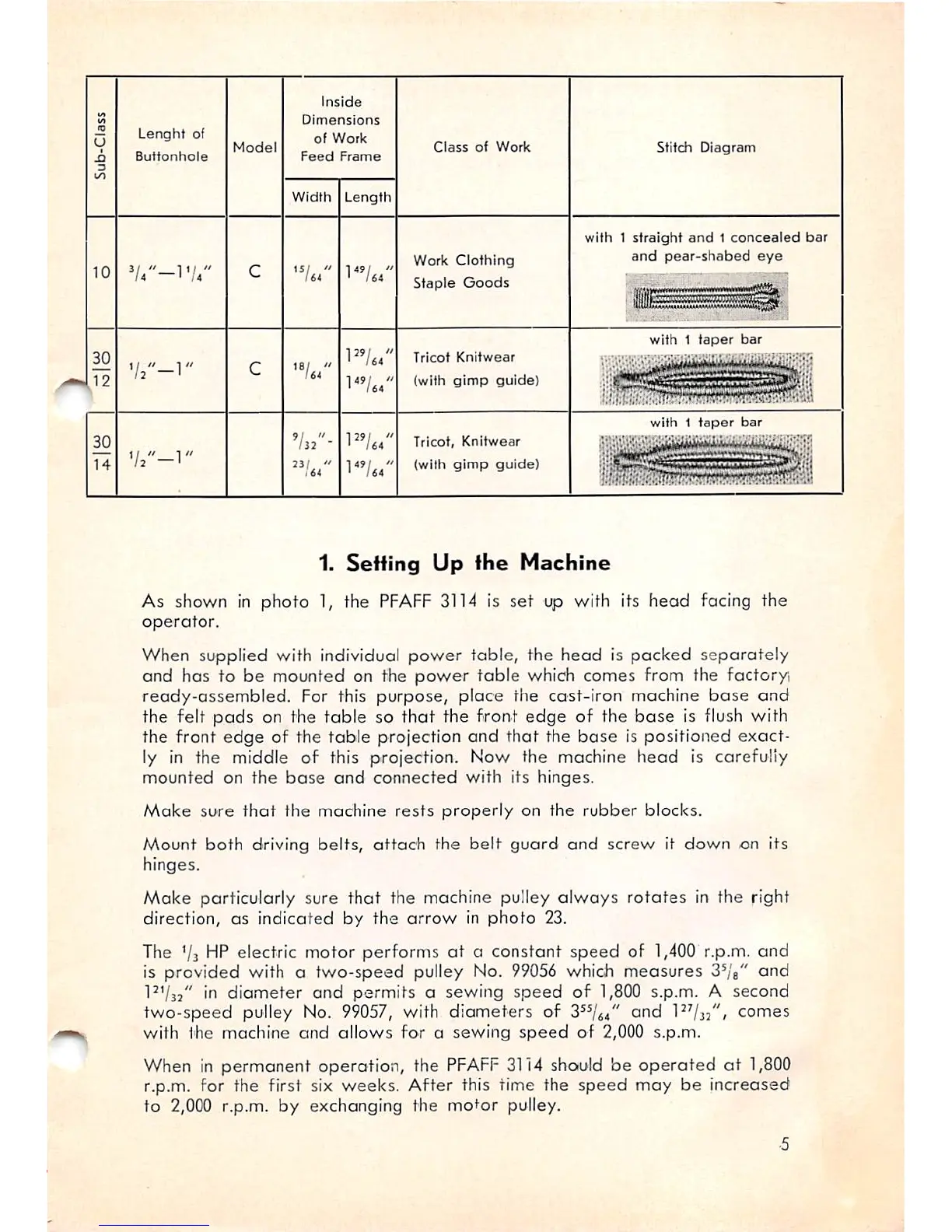

10
30
12
30
14
Lenght of
Buttonhole
^/4"-T/4'
V/'-V
Model
Inside
Dimensions
of Work
Feed Frame
Width Length
732
Jl/..
l"/64
1''/S4
Class of Work
Work Clothing
Staple Goods
Tricot Knitwear
(with gimp guide)
Tricot, Knitwear
(with gimp guide)
Stitch Diagram
with 1 straight and 1 concealed bar
and pear-shabed eye
with 1 taper bar
with 1 taper bar
1. Setting Up the Machine
As shown in photo 1, the PFAFF 3114 is set up with its head facing the
operator.
When supplied with individual power table, the head is packed separately
and has to be mounted on the power table which comes from the factor/i
ready-assembled. For this purpose, place the cast-iron machine base and
the felt pads on the table so that the front edge of the base is flush with
the front edge of the table projection and that the base is positioned exact
ly in the middle of this projection. Now the machine head is carefully
mounted on the base and connected with its hinges.
Make sure that the machine rests properly on the rubber blocks.
Mount both driving belts, attach the belt guard and screw it down on its
hinges.
Make particularly sure that the machine pulley always rotates in the right
direction, as indicated by the arrow in photo 23.
The Va HP electric motor performs at a constant speed of 1,400 r.p.m. and
is provided with a two-speed pulley No. 99056 which measures S^/g" and
in diameter and permits a sewing speed of 1,800 s.p.m. A second
two-speed pulley No. 99057, with diameters of ond P'/a:"* comes
with the machine and allows for a sewing speed of 2,000 s.p.m.
When in permanent operation, the PFAFF 3114 should be operated at 1,800
r.p.m. for the first six weeks. After this time the speed may be increased
to 2,000 r.p.m. by exchanging the mofor pulley.
-5
