Pfaff 3114 User Manual

a

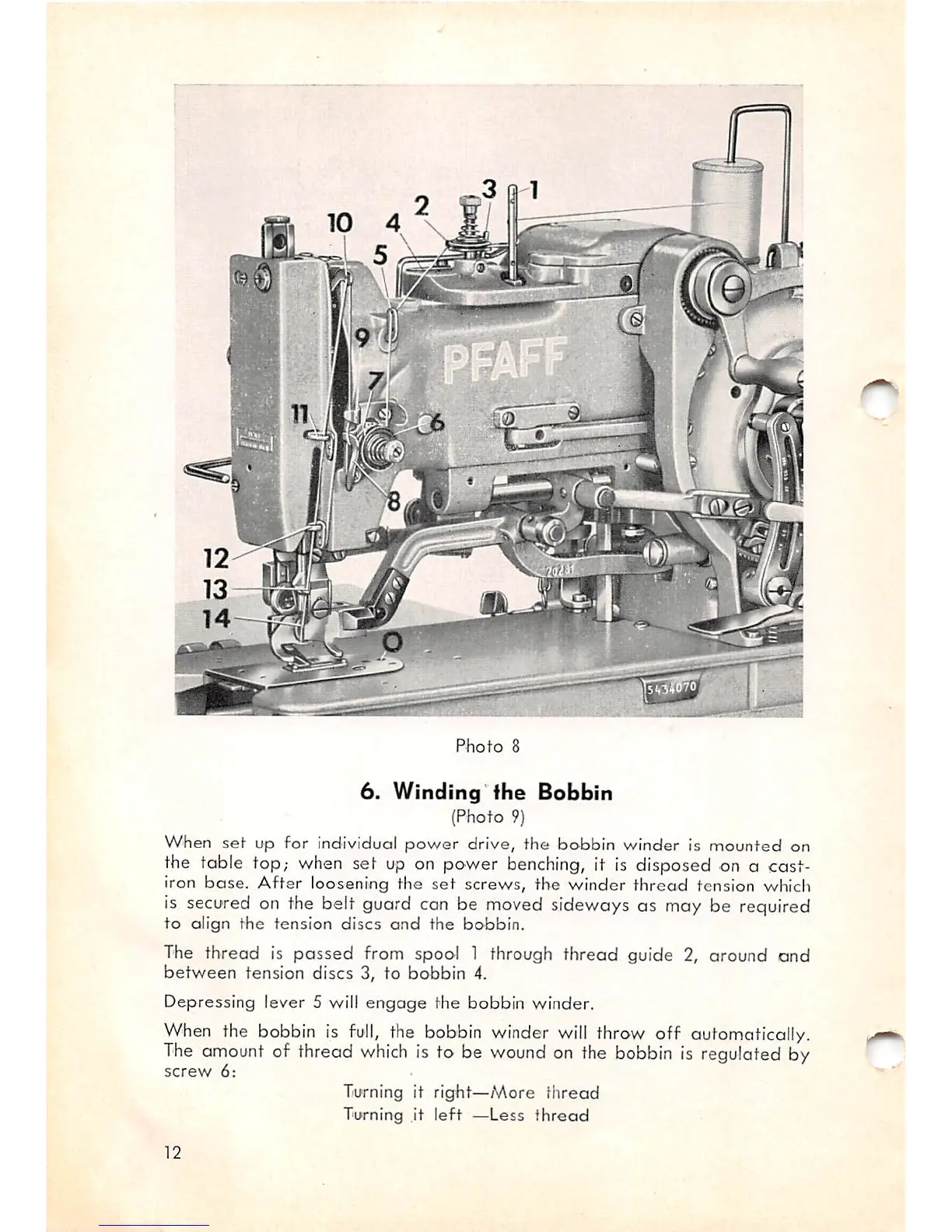

Phofo 8
6. Winding fhe Bobbin
(Photo 9)
When set up for individual power drive, the bobbin winder is mounted on
the table top; when set up on power benching, it is disposed on c cast-
iron base. After loosening the set screws, the winder thread tension which
is secured on the belt guard can be moved sideways as may be required
to align the tension discs and the bobbin.
The thread is passed from spool 1 through thread guide 2, oround and
between tension discs 3, to bobbin 4.
Depressing lever 5 will engage the bobbin winder.
When the bobbin is full, the bobbin winder will throw off automatically.
The amount of thread which is to be wound on the bobbin is regulated by
screw 6:
Turning it right—More thread
Turning it left —Less thread
12
