Pfaff 3114 User Manual

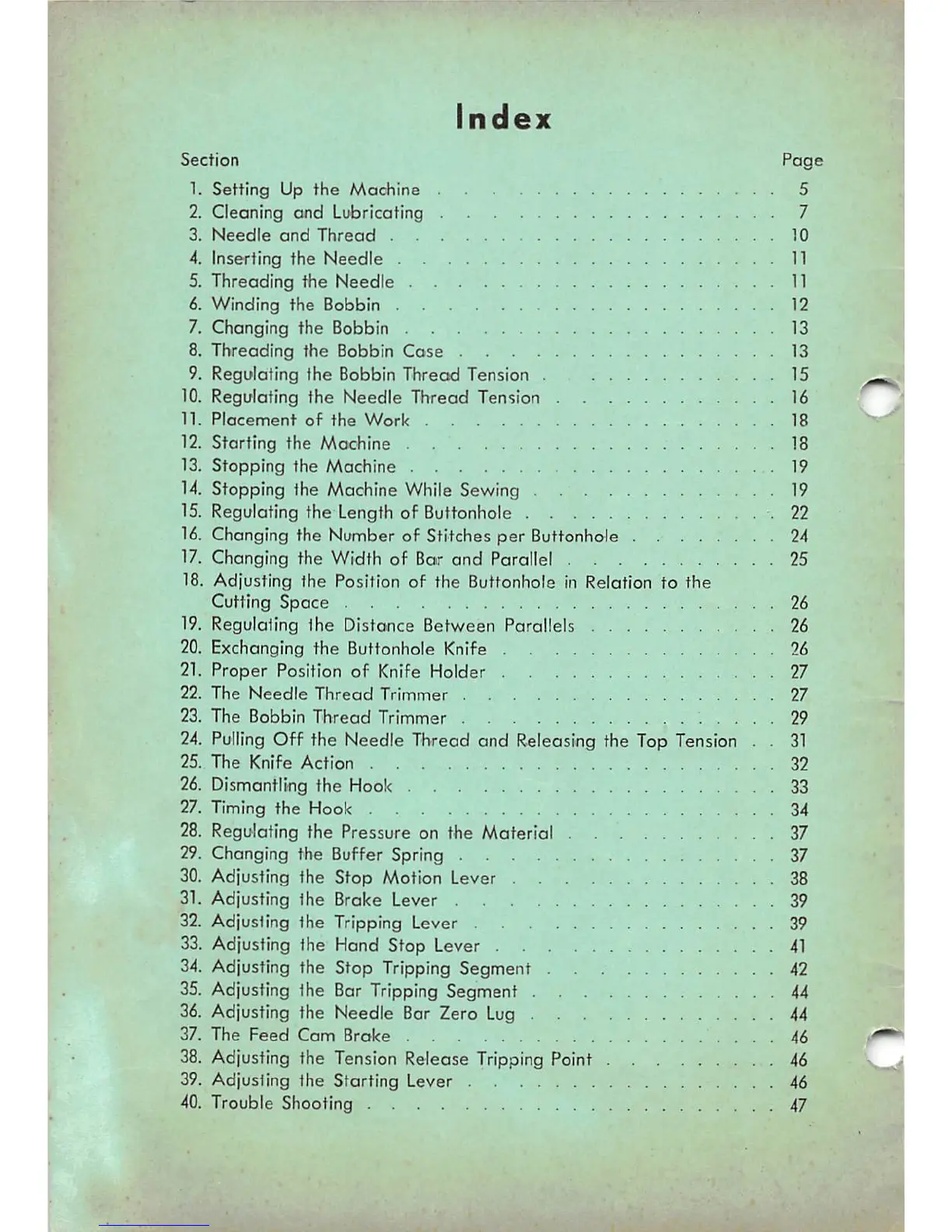

Inde X
Section Page
1. Setting Up the Machine 5
2. Cleaning
and Lubricating 7
3. Needle and Thread 10
4. Inserting the Needle 11
5. Threading
the Needle 11
6. Winding the Bobbin 12
7. Changing the Bobbin 13
8. Threading the Bobbin Cose 13
9. Regulating the Bobbin Thread Tension 15
10. Regulating the Needle Threod Tension 16
11. Placement of the Work 18
12. Starting the Mochine 18
13. Stopping the Machine 19
14. Stopping the Machine While Sewing 19
15. Regulating the Length of Buttonhole .22
16. Changing the Number of Stitches per Buttonhole 24
17. Changing the Width of Bcur and Parallel 25
18. Adjusting the Position of the Buttonhole in Relation to the
Cutting Space 26
19. Regulating the Distonce Between Parallels 26
20. Exchanging the Buttonhole Knife 26
21. Proper Position of Knife Holder 27
22. The Needle Thread Trimmer 27
23.
The Bobbin Thread Trimmer 29
24. Pulling Off the Needle Thread and Releasing the Top Tension . . 31
25. The Knife Action 32
26. Dismantling the Hook 33
27. Timing the Hook 34
28. Regulating the Pressure on the Material 37
29. Changing the Buffer Spring 37
30. Adjusting the Stop Motion Lever 38
31. Adjusting the Brake Lever 39
32. Adjusting the Tripping Lever 39
33. Adjusting the Hand Stop Lever 41
34. Adjusting the Stop Tripping Segment 42
35. Adjusting the Bar
Tripping Segment 44
36. Adjusting the Needle Bar Zero Lug 44
37. The Feed Cam Broke 46
38. Adjusting the Tension Release Tripping Point 46
39. Adjusting the Starting Lever 46
40. Trouble Shooting 47
