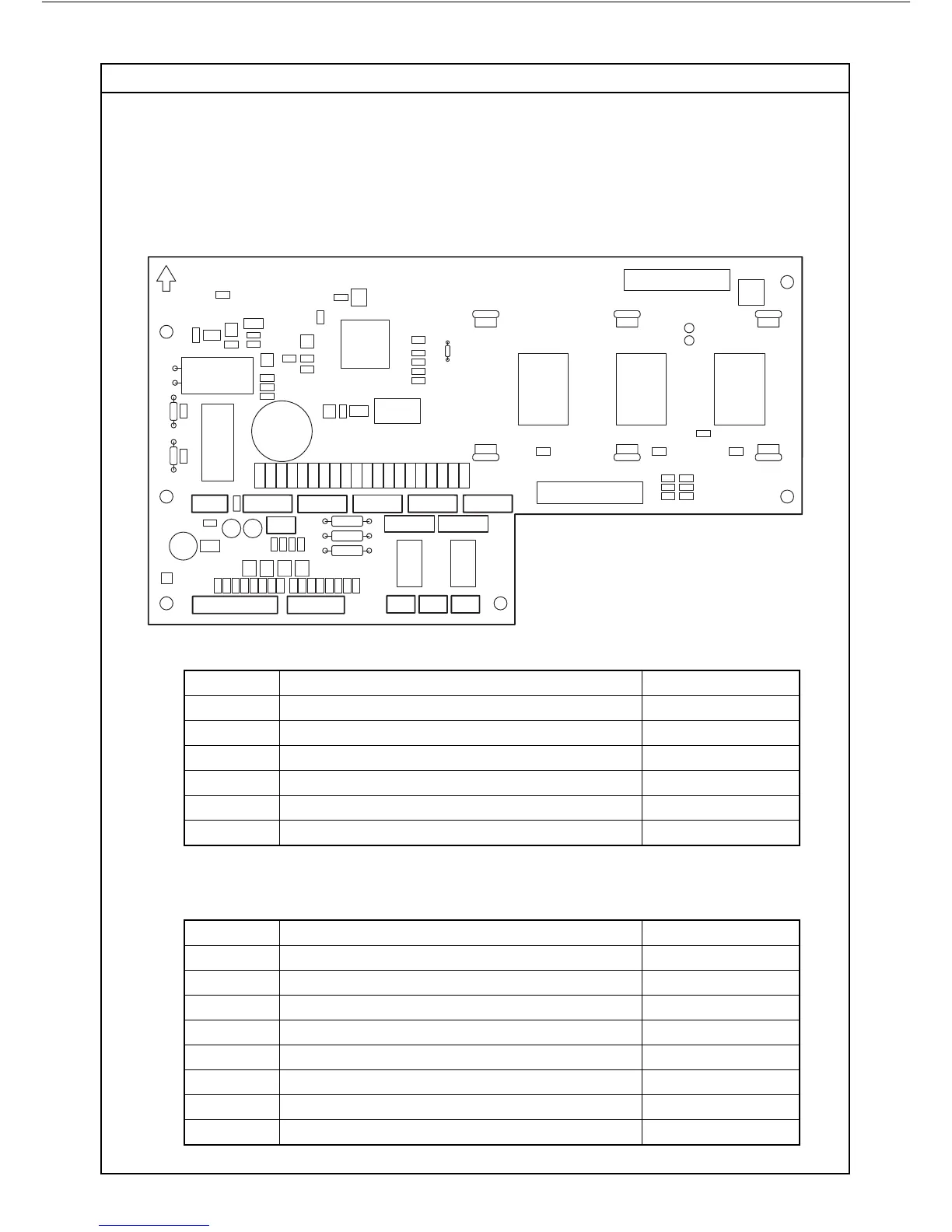

WIRING FOR THE CONNECTORS ON THE LCD CIRCUIT BOARD
3b
Secure respective wiring between each connectors and related
motors and sensors with wire-
harness as shown in the following tables.
SPD
DTS
DCM
DT4
DT5
DT3
DT2
DT1
SLM
DCSW
SLS
DFS
DCS
DFM
Wiring for Sensors
Connectors
Sensors
DTS
From DT Sensor P.C.B.
Page.3a
SLS
From S.L. Sensor P.C.B.
Page.3a
DFS
From D.F. Sensor P.C.B.
Page.3a
DCS
From DECO Sensor P.C.B.
Page.3a
DCSW
From DECO Switch
Page.3a
SPD
From Main P.C.B.
Page.3a
Wiring for Step Motors
Connectors
Step Motors
DT1
F
rom
DT1 Step Motor
Page.3a
DT2
F
rom
DT2 Step Motor
Page.3a
DT3
F
rom
DT3 Step Motor
Page.3a
DT4
F
rom
DT4 Step Motor
Page.3a
DT5
F
rom
DT5 Step Motor
Page.3a
DCM
F
rom
DECO Step Motor
Page.3a
DFM
F
rom
D.F. Step Motor
Page.3a
SLM
From S.L. Step Motor
Page.3a
22
24
