INSTALLING OF DECO UNIT 26

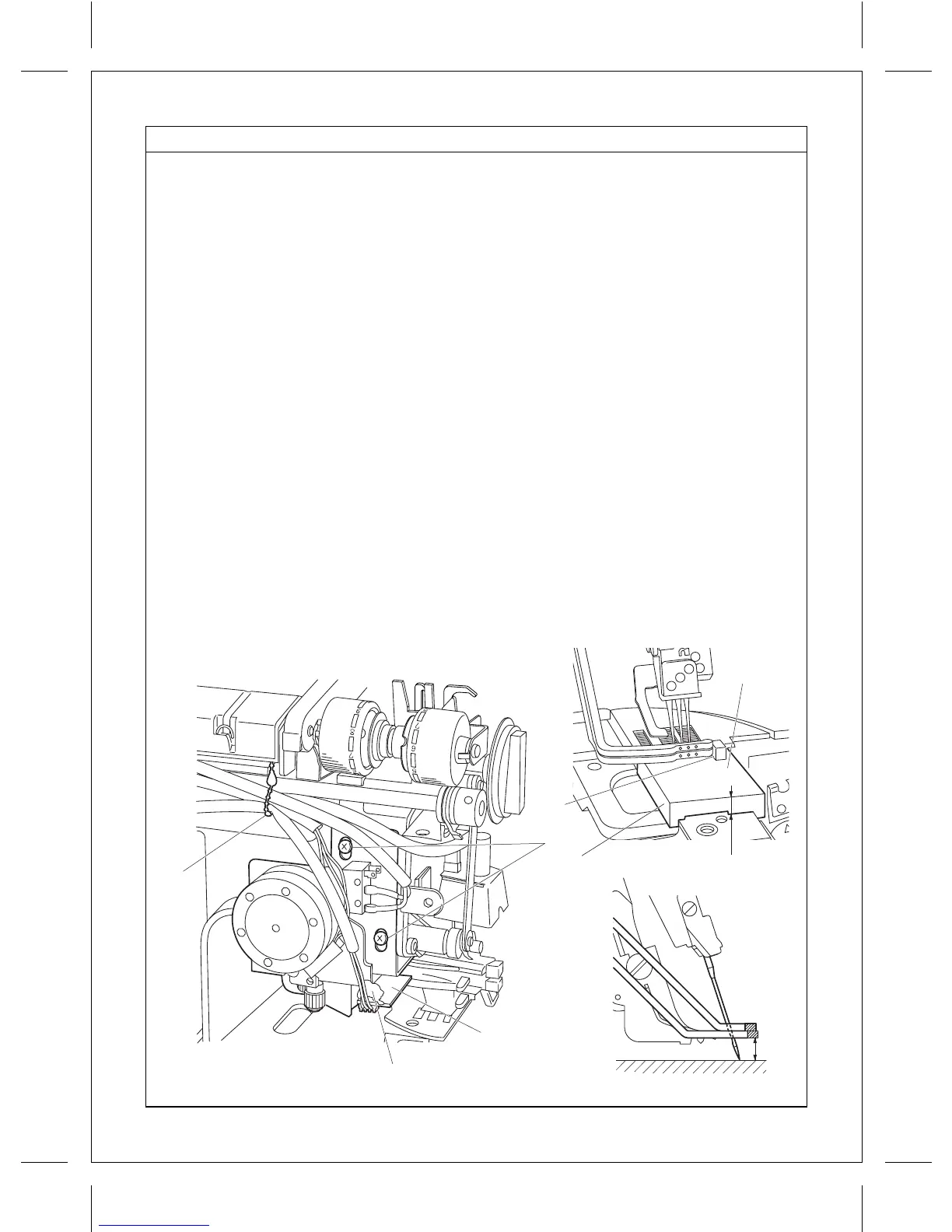

Install DECO UNIT on to the position as shown Fig.1, with following manner:
1) Prepare preassembled DECO UNIT with Blue and Yellow Decorative Thread Guide and
Gauge No.11687.
2) Before putting the guage on the needle plate, turn the handwheel in the normal direction
until the "L2" needle point enter into the needle hole of needle plate and feed dog must be
down under the needle plate surface. Then put the gauge on the Needle plate shown in the
Fig.2 and adjust the position of DECO UNIT as follows.
1. Make the points of Blue and Yellow Decorative Thread Guide touch slightly with
specified face "e"of the gauge and at the same time, make the bottom face of Yellow
Decorative Thread Guide touch slightly on the another specified face "f".
Note: This work, with the gauge, must be performed without any force, in order to have a
proper result in which Yellow Decorative Thread Guide has 6mm height from the
surface of needle plate and center of three thread holes of Blue and Yellow
Decorative Thread Guide coincide each other as well as center of three
corresponding needles uprightly. (Fig.2)
2. After recognizing necessary conditions, fit the DECO UNIT on to the position as shown in
Fig.1 and tighten the screws "a".
3. An alignment of DECO UNIT is stating in the page of "Adjustment for DECO UNIT".
a
b
d
Fig.1
c
Fig.3
6mm
Fig.2
6mm
f
e
No.11687
To Next Page
