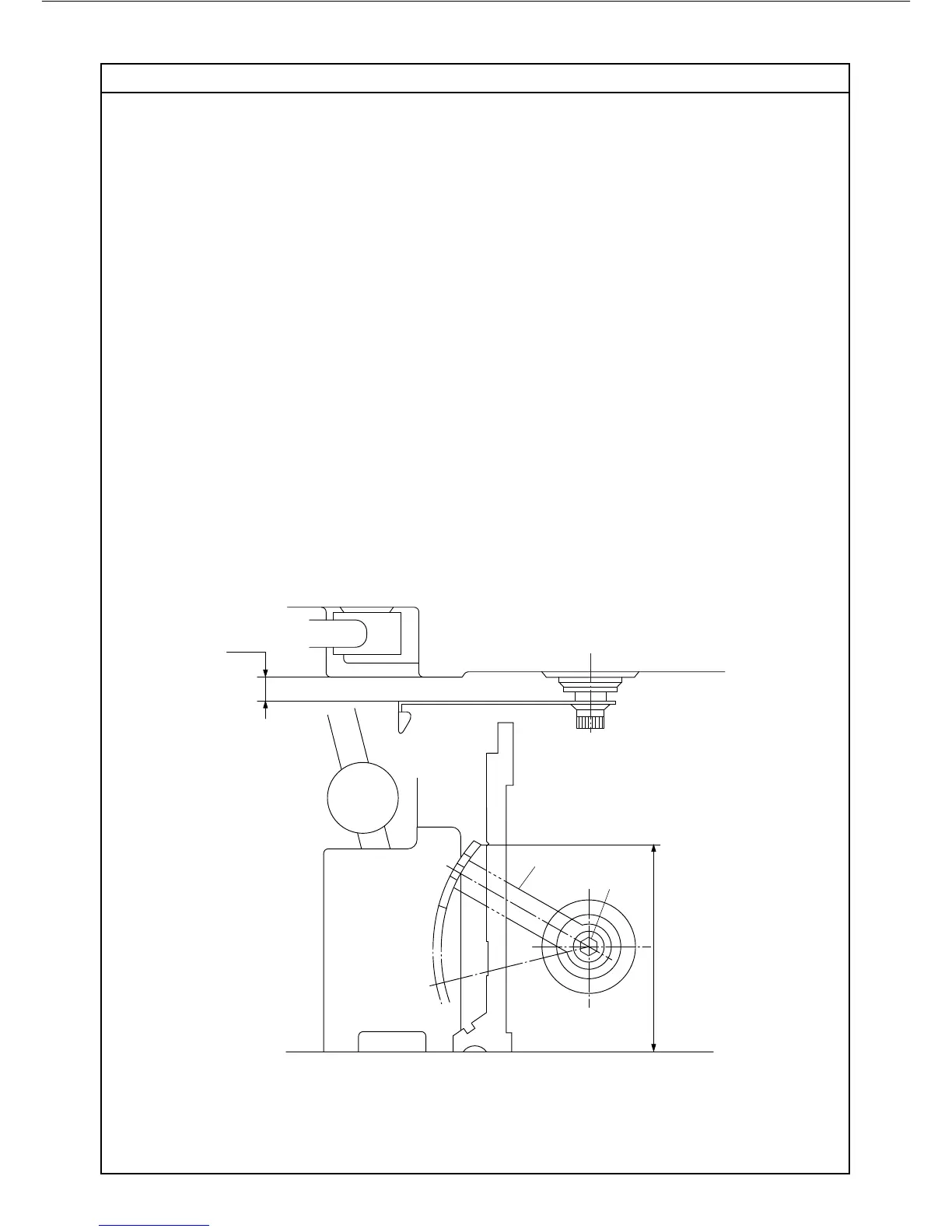

POSITION OF LOOPERS THREADS TAKE UP LEVER 19
47.3mm
5.0mm
a
b
1. Remove: Mains lead and loopers threads take up lever cover unit "6"on page 2.
2. Turn the handwheel and bring upper looper thread take up lever "a" in its highest position.
3. Check and make sure that the distance between thread take up lever guide and inside of the
machine base is at 47.3 mm.
4. If not, loosen allen screw "b" and adjust position.
Note: Check and make sure that the space between back of thread take up lever and casing is
at 5mm.
To Next Page
