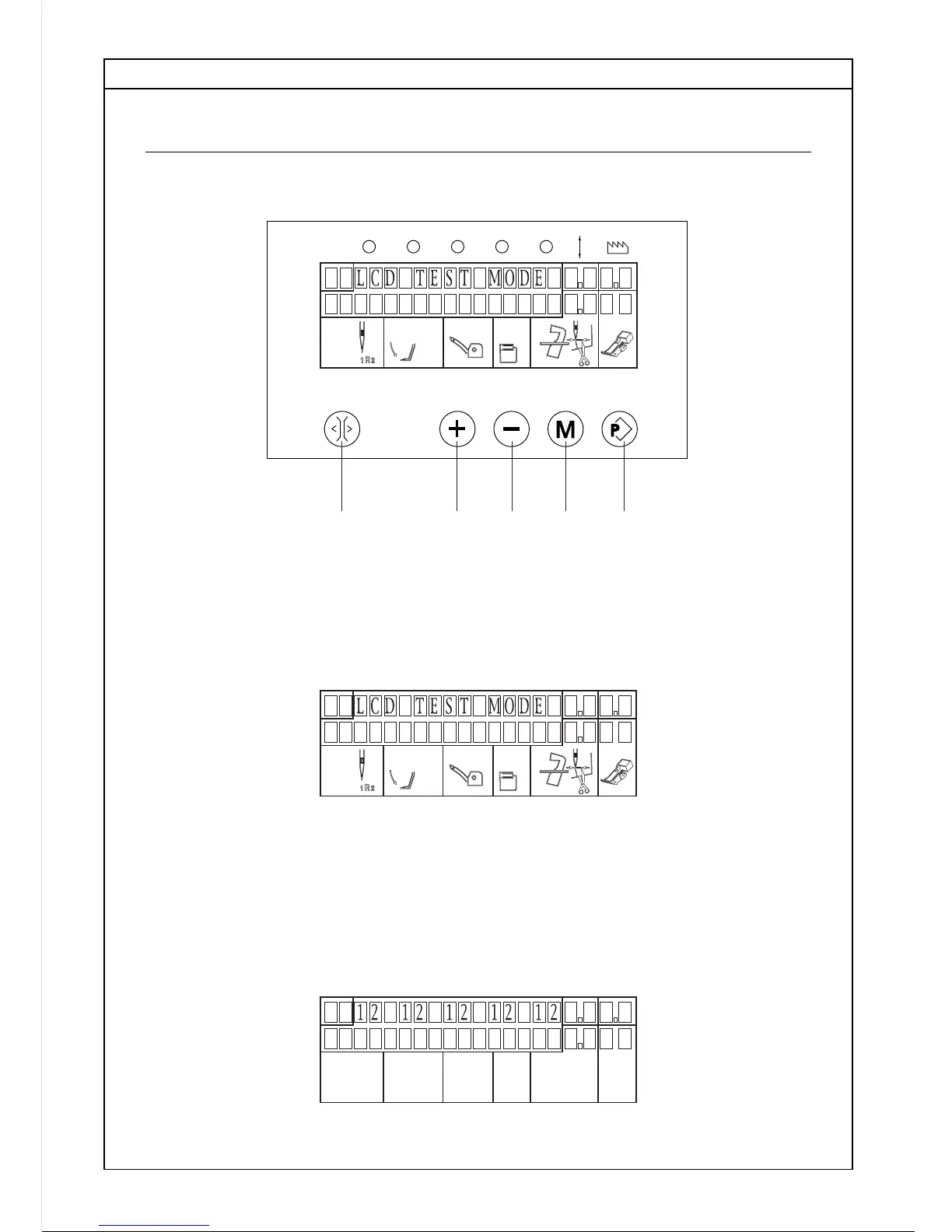

TEST PROGRAM - TEST OF LCD DISPLAY
D1
PROG.
1
2
3
4
5
Access to the test program
1.
Switch off the machine.
2.
While pressing key
"2"
and
"3"
simultaneously, switch on the machine.
3.
The matrix pattern turns to
"LCD test mode"
.
4.
Press
"1"
, the step motors will rotate to their minimum position and the number
"12"
will
appear on the display.
Tension value can be checked and adjusted as a manner shown in the page E1.
7
9
Table of Contents
Table of Contents
2
General Directions and Recommendations
4
C.1-2. Mechanical Sewing Disorders
6
G.1-3. Gauge for the after - Sales Service
16
Removing Back Cover
20
Removing Front Cover
21
A-B. Height and Alignment of Cloth Presser Bar
30
Height-Clearance-Angular Position of Lower Looper
34
Clearance of Needle Guards
35
A-B. Timing of Lower Looper
36
Angular Position of Upper Looper
38
Clearance and Timing of Upper Looper to Lower Looper 11
39
Chain Looper Thread Take up Rotary Cam
44
Height of Feed Dog
45
A-B. Moving Cutter and Vertical Feed Timing
46
Adjustment for Differential Feed Unit Operated with Stepping Motor
50
Position of Fixed Cutter and Cutting Width Dial Setting 18
51
Position of Loopers Threads Take up Lever
52
Position of the Stitch Width Finger
53
Lateral and Front Covers Safety Device
54
A-B. Adjustment of Setting Position for En-Sensor and Slit-Plate
56
Adjustment for Stitch Length Unit Operated with Step Motor
58
Timing Adjustment for Top Cover Triangle Thread Guide and Top Cover Hook
59
Adjustment of Threads Take up Lever for Top Cover and Deco Cover
60
Installing of Deco Unit
61
A-B. Adjustment for Deco Unit
62
Cover Hem Stitch Being Pulled
64
Cover Hem Stitch Formation (Narrow & Wide
68
Triple Cover Hem Stitch Formation
69
