.04.06 Needle rise, hook clearance, needle height and needle guard (on the PFAFF 591)
Requirement
In needle rise position 2.4 mm after B.D.C, and with the stitch length set at "0"
the hook point must be at needle centre with a hook-to-needle clearance of
0.05 to 0.1 mm;
the top of the needle eye must be 0.8 to 1.0 mm below the hook point;
the needle guard 6 must touch the needle lightly.
1.
2.
3.
Adjustment

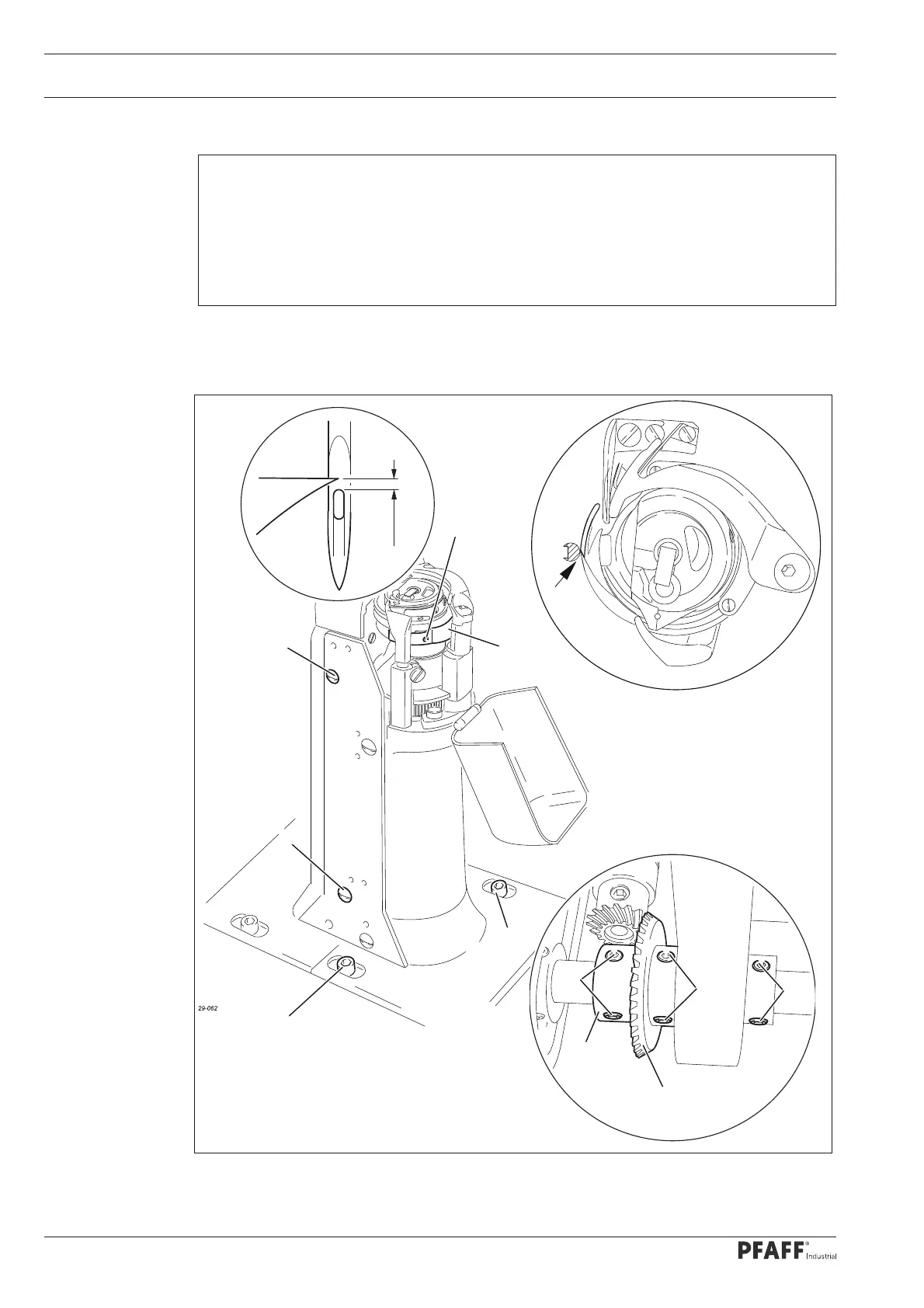

Fig. 1 - 06
6
9
4
5
5
0,8 - 1 mm
61-028
1
4
3
7
8
2
