.06.02 Position of the thread catcher holder
Requirement
There should be a minimum amount of play between toothed wheel 3 and toothed
segment 4.
Both in the neutral position and the foremost position of the catcher, the distance bet-
ween the toothed segment 4 and the outer edge of the thread catcher holder 1 should
be the same (see arrow).
1.
2.
Adjust the thread catcher holder 1 (screws 2) according to the requirements.
If requirement 2 cannot be fulfi lled, loosen screw 2 and move the toothed
segment 4 by one tooth.

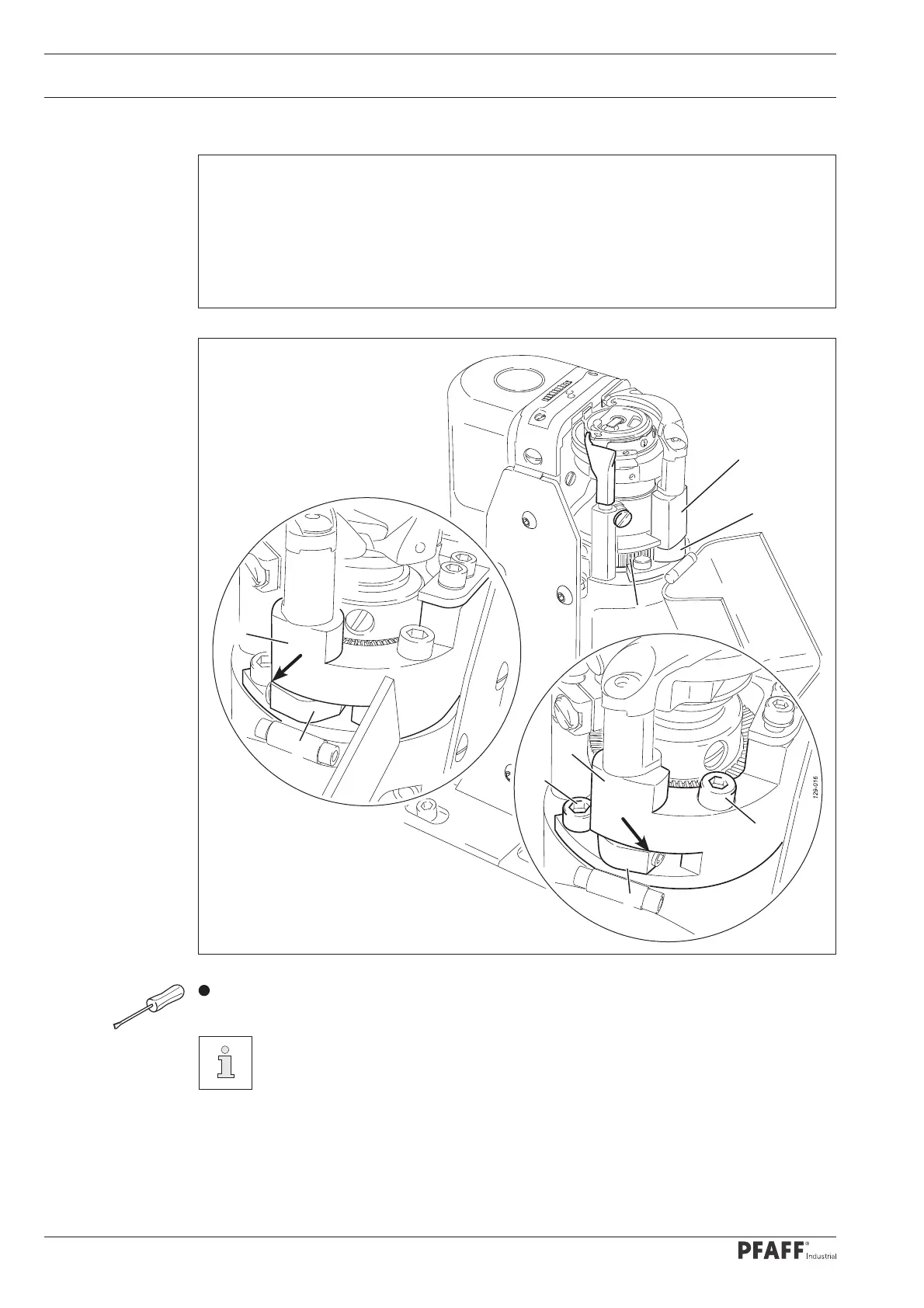

Fig. 1 - 39
1
3
4
510-921
4
1
2
1
2
4
Adjustment
