.05 Adjusting the edge trimmer -725/04
1
.05.01 Position of the knife holder (on model 571)
Requirement
When the thread trimmer is engaged and the adjusting wheel has been turned to its high-
est position
the knife holder 2 must be parallel to the post and
the top edge of the needle plate must be in the centre of the angular knife opening.
1.
2.
Turn the adjusting wheel 1 to its highest position and engage edge trimmer.
Adjust knife holder 2 (screw 3) according to the requirements.
61-050

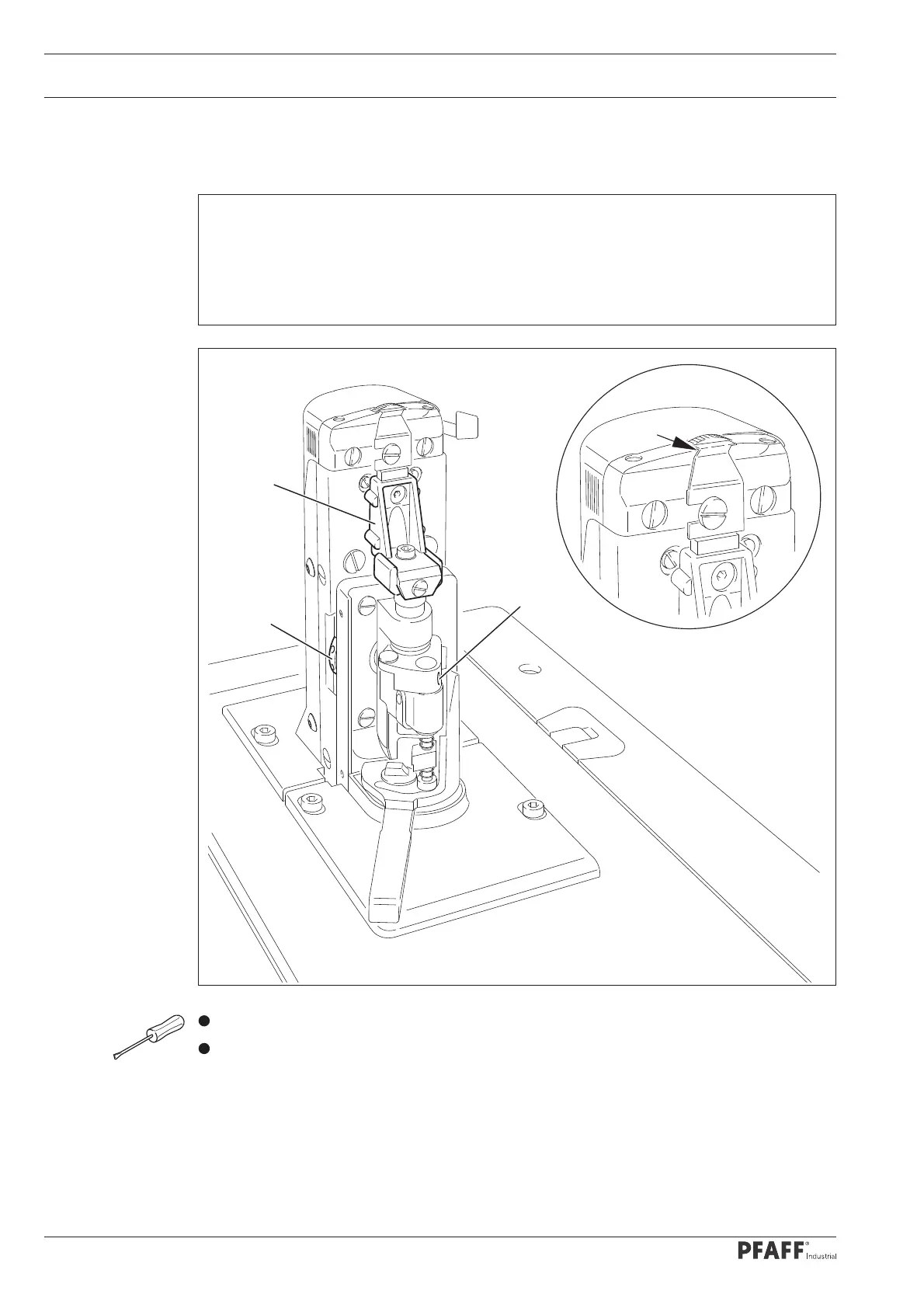

Fig. 1 - 31
3
2
1
61-051
Adjustment
