.04.22 Retainer (only on PFAFF 574)
Adjust retainer 1 (screw 2) according to requirement 3.
Adjust bracket 3 (screw 4) according to requirement 1.
Requirement
The retainer 1 must
at least be even with the right needle, as seen in the direction of sewing and
be as close as possible to the right needle, as seen crosswise to the direction of sewing.
When the roller presser is lo
wered, the space between retainer 1 and material must be
0,2-0,3mm. Spring 5 should press the material lightly.
1.
2.
3.
Adjust retainer 1 (screws 6) in accordance with requirement 2.

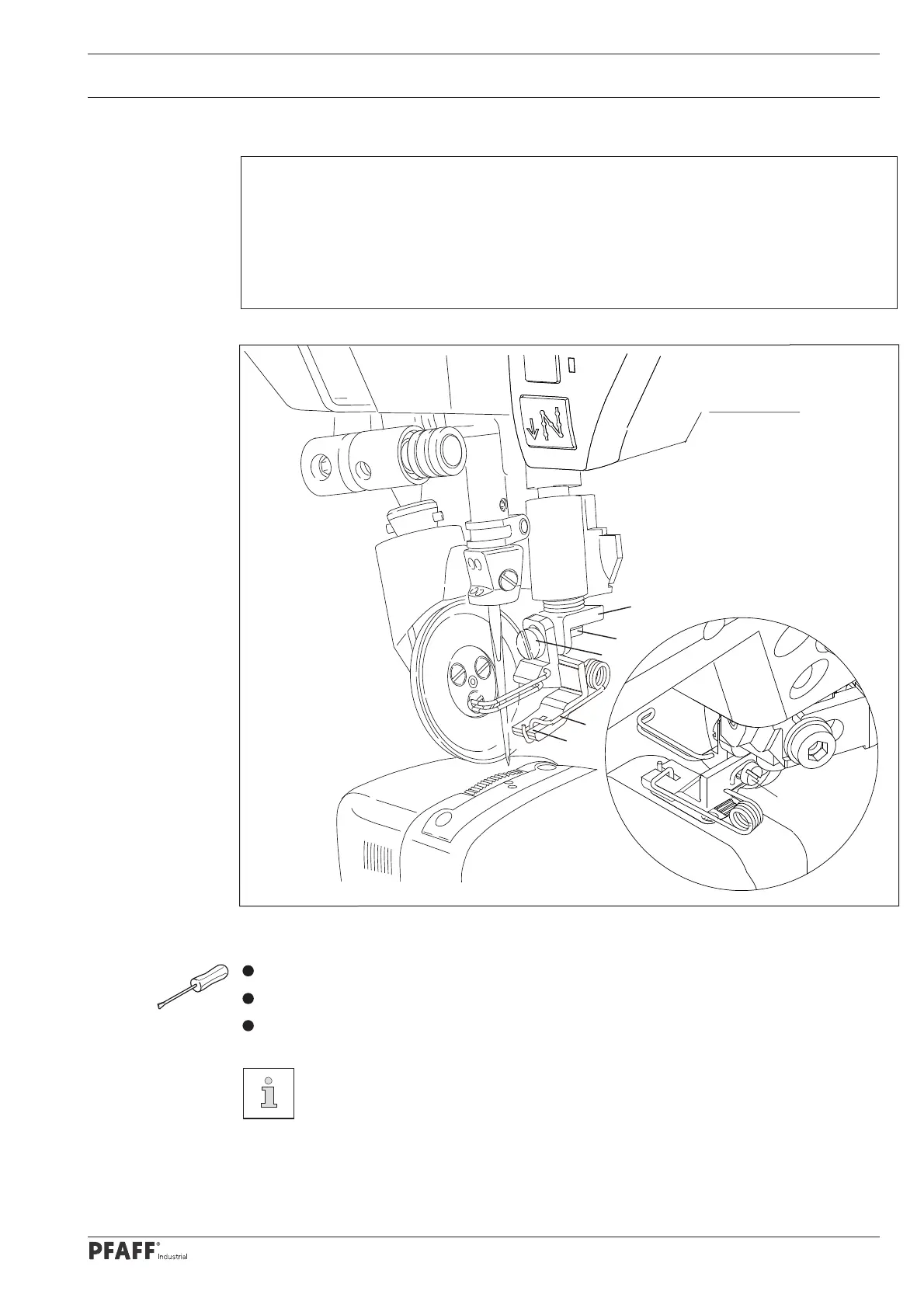

Fig. 1 - 22
6
5
2
3
4
1
If needed, bracket 1 can be adjusted in accordance with requirement 2.
