1.05.04 Knife stroke (on model 591)
Requirement
The knife stroke can be adjusted over a range from 2.0 to 3.5 mm, allowing the best
possible adaption to all materials used.
Adjust crank 1 (nut 2) in slotted lever 3 according to the requirement.

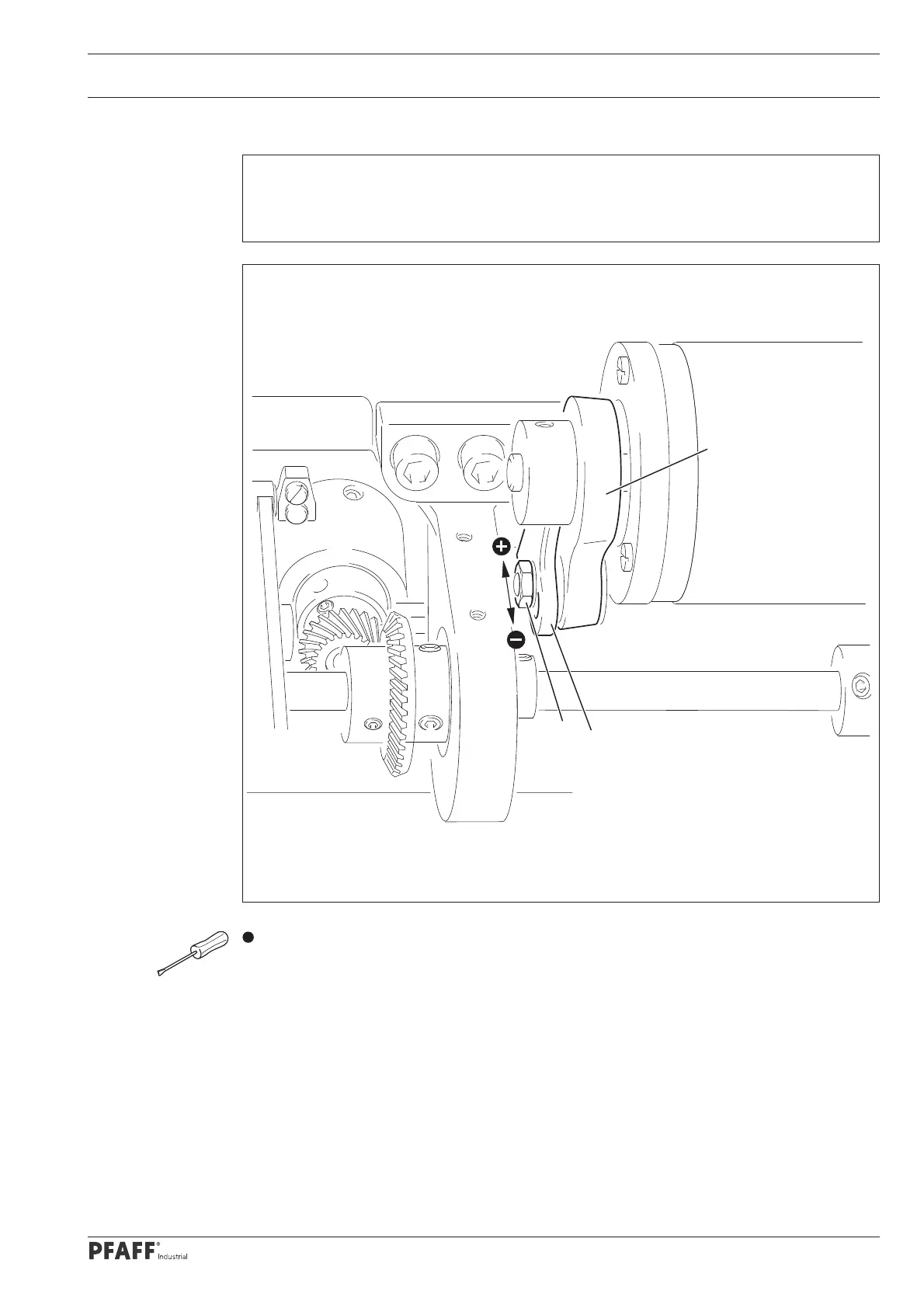

Fig. 1 - 34
1
2
3
Adjustment
