1414

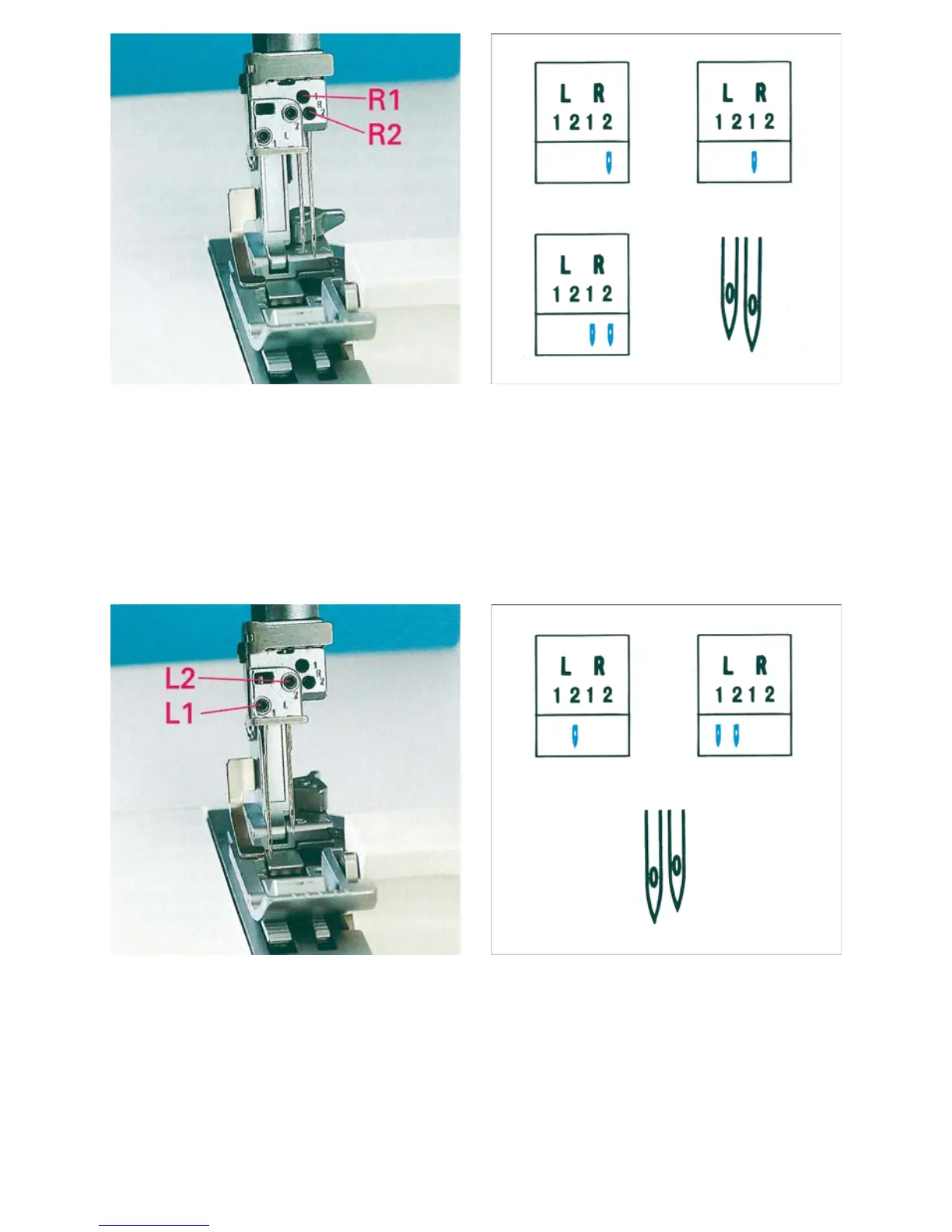

Needle position
This machine has 4 needle positions and can
sew with a maximum of two needles at any
one time. The needle positions are 1 1, L2,
R11 and R2. The fastening screw is located
directly above the corresponding needle.
The different needle positions are depicted
in a schematic drawing in the instruction
manual. Also refer to the examples above
and below. Insert the needle(s) as shown on
the program overview (see pages 40-43).
Note: If the needles R2 and 131 have been
inserted, the left needle will be somewhat
higher than the right needle.
Note: If the needles 1 11 and L2 have been
inserted, the left needle will be somewhat
lower than the right needle.
