1-8

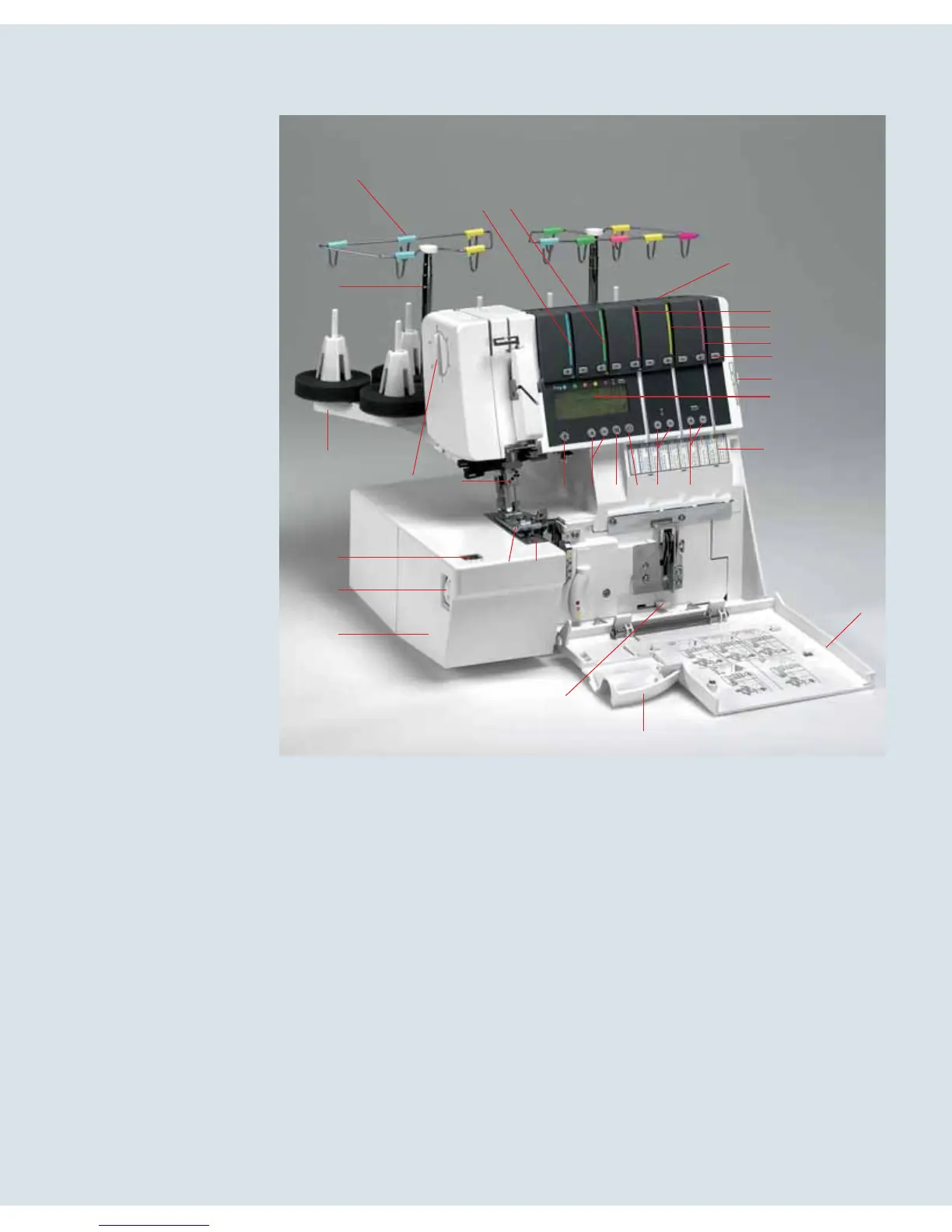

Parts of creative 4874
1 Needle thread tension
2 Needle thread tension
3 Carrying handle
4 Thread tension / upper
looper
5 Thread tension / lower
looper
6 Thread tension/ double
chain-stitch and cover-
stitch looper
7 Tension buttons + / –
8 Speed control
9 LCD Display
10 Tension release button
11 Stitch program selection
buttons + / –
12 Memory button M
13 Memory selection
button P
14 Stitch length adjustment
buttons + / –
15 Differential feed
adjustment buttons + / –
16 Front cover
17 Knife guard
18 Upper looper
disconnection lever
19 Needle plate
20 Standard presser foot
21 Swivel table
22 Seam width adjustment
knob
23 Viewer for seam width
24 Needle holder
25 Top/deco sewing
program sticker
26 Adjustment knob for
presser foot pressure
27 Detachable thread stand
28 Thread guide slide -
Top / deco cover
29 Color coded thread
guides -Top / deco cover
1
2
7
8
6
5
4
3
9
10
11 12 13 14 15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
