Pfaff powerline 2235 Adjusiment Manual

9
Adjustment
1.05.05 Lifting motion of the bottom feed dog
Requirement
When the balance wheel is positioned at 180°, the feed dog should be at t.d.c.
Adjust eccentric ● 1 (screws 2) in accordance with the requirement.
Use the kit with the Order No. 91-501 398-90
to deactivate the transporter lif-
ting movement.
Install assembly and adjust
Remove collar ● 3 (screws
4
) and crank 5 (screw 6, safety ring 7).

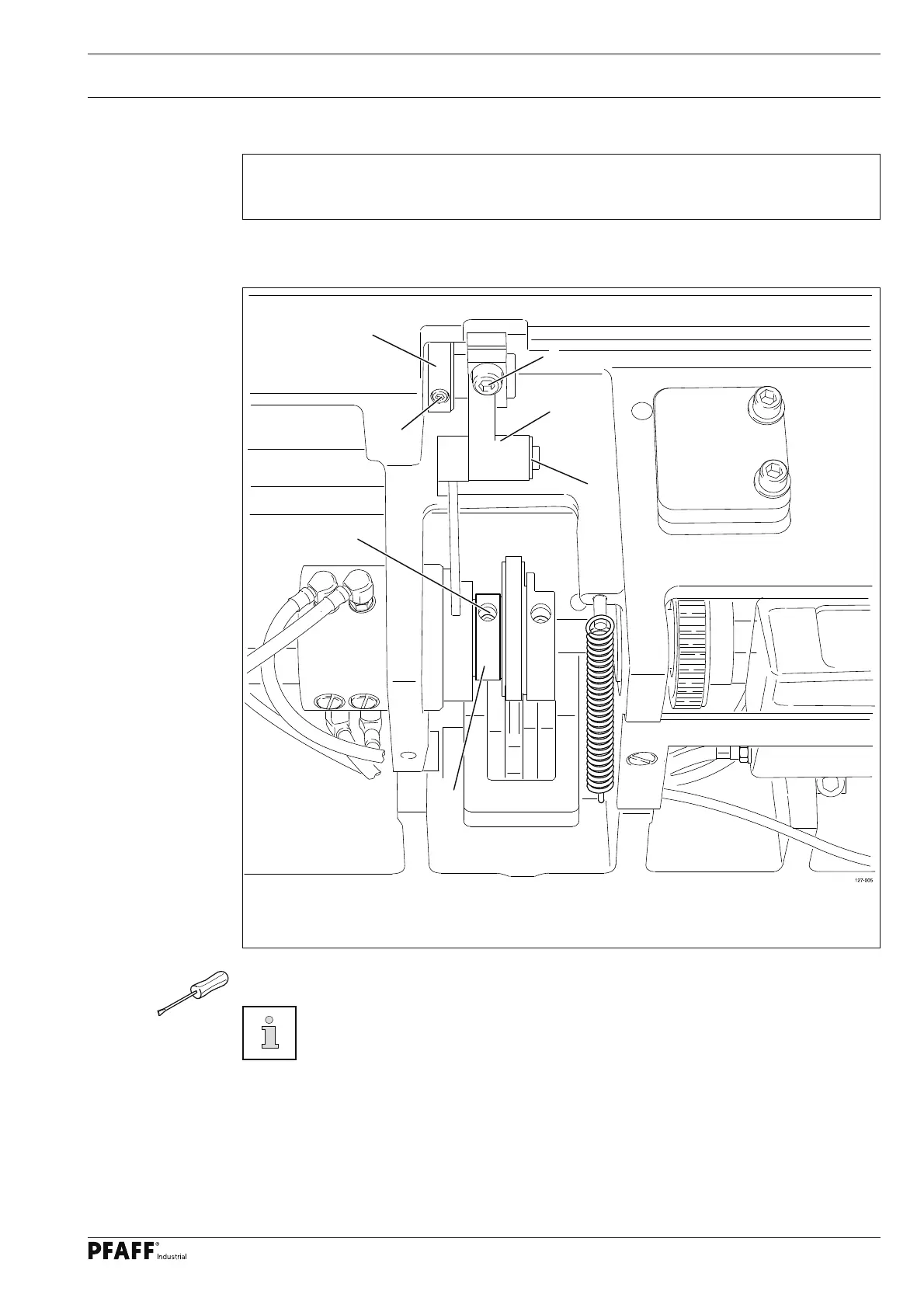

Mount the preassembled parts of the kit as shown in fi gures ● 1 - 05a.
Adjust bottom transporter height and stroke movement where required. ●
Fig. 1 - 05
1
2
3
4
6
5
7
