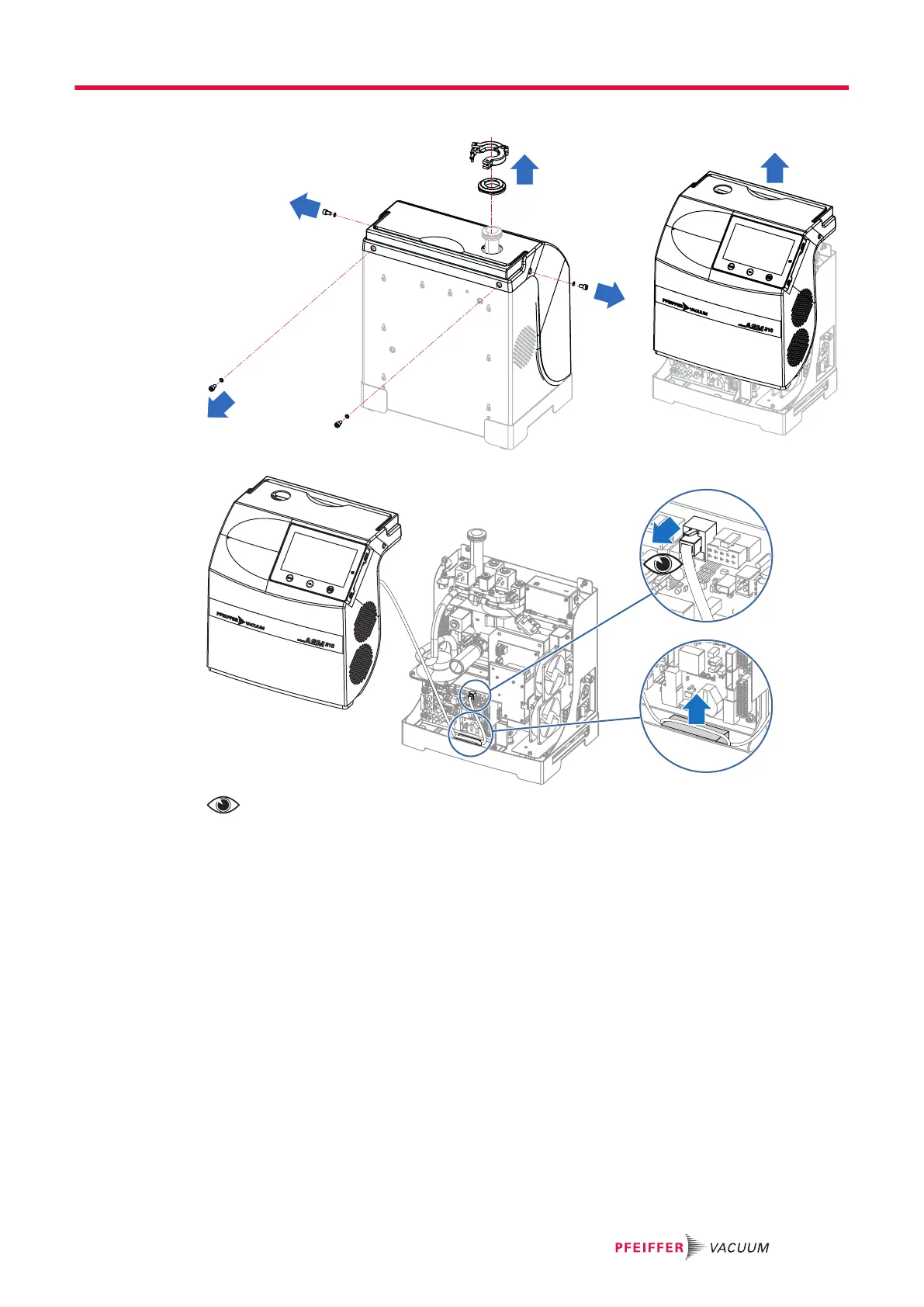

Disassembly
2
1
2
3
2
4
RJ9
5
6
RJ9 connector on the supervisor board: connecting the control panel cable
Reassembly
Follow the disassembly steps in reverse.
5.5 Cover replacement
Prerequisite
►
Remove the cover (see chapter “Cover disassembly/reassembly”).
