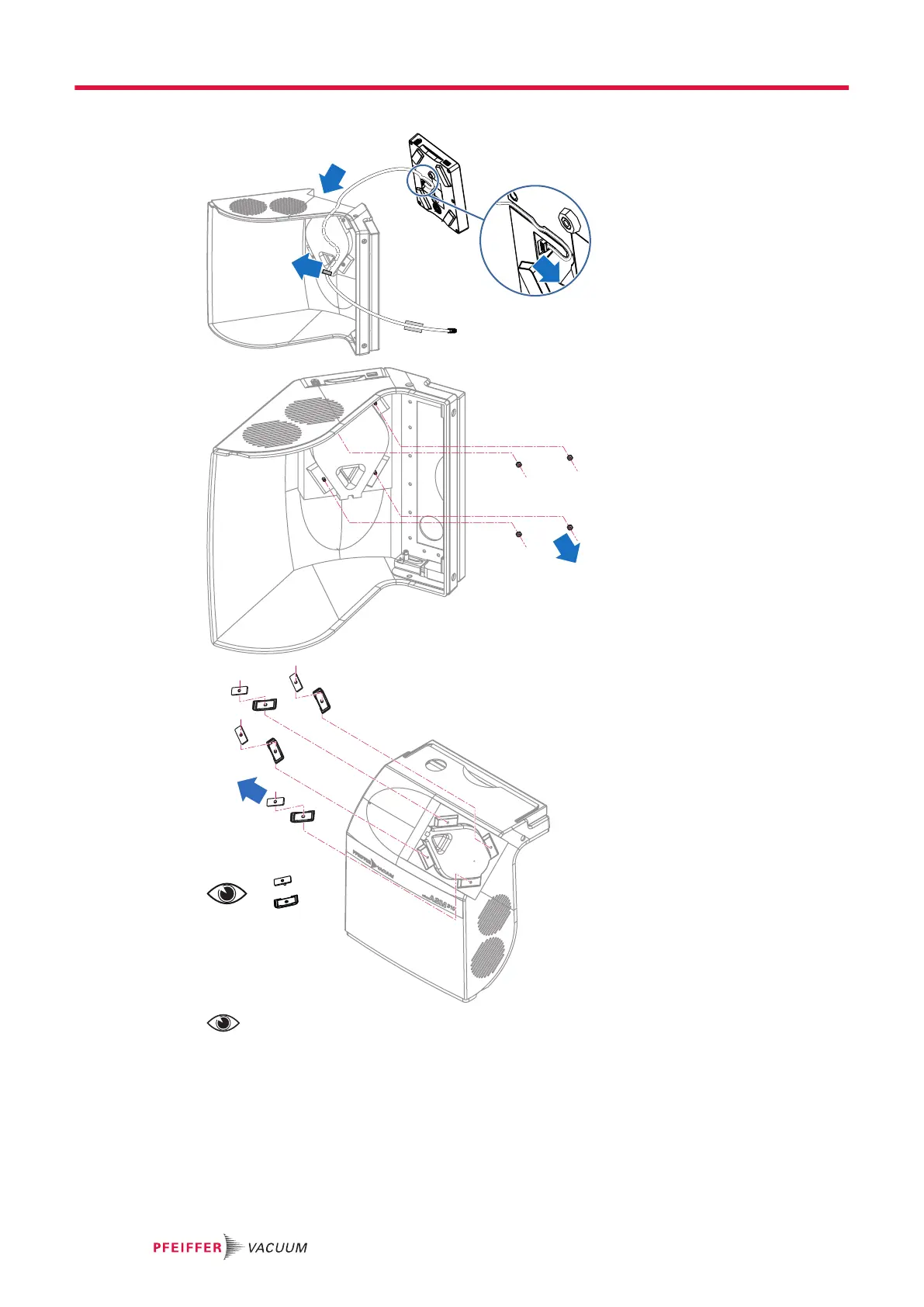

Disassembly
The 4 raise plates (studs and counterplates) are kept for reassembly.
Reassembly
Follow the disassembly steps in reverse.
5.6 Control panel cable and/or ferrite replacement
The control panel cable is fitted with a ferrite to meet EMC requirements.
The control panel cable, delivered as a spare part, is not fitted with the ferrite. The ferrite must be re-
moved from the faulty cable to be installed on the new cable.
Service - Maintenance
14/36
