Pfeiffer Vacuum ASM 310 - Handling

Prerequisite
►
Remove the cover (see chapter “Cover disassembly/reassembly”).

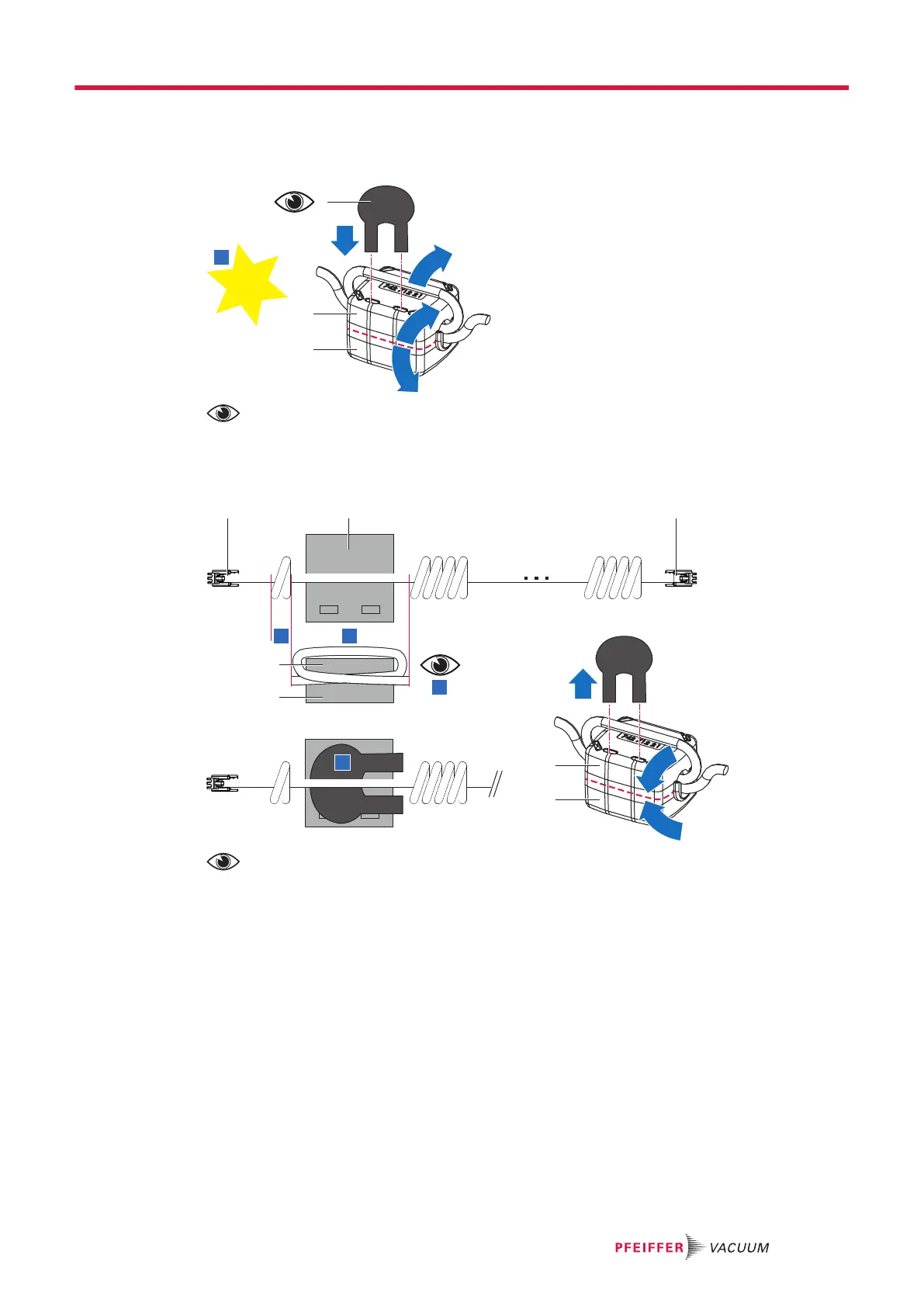

Ferrite disassembly
2
3
2
1
CLAC!
11
2
1
3
The special key is fastened with the ferrite.
1 Special key 3 Bottom part of the ferrite
2 Top part of the ferrite
Ferrite reassembly
A
4 53
1
2
2
2
3
1
1
2
B
4
4 to 5 turns of the cable are stretched to surround the ferrite and make a complete turn.
1 Top part of the ferrite 5 Control panel connector
2 Bottom part of the ferrite A 1 turn
3 Supervisor board connector B 4 to 5 turns
4 Ferrite
Service - Maintenance
15/36
