Safety
10 | 38
Operating instructions sample cleaner MLN | Revision 3
2.2 Interfaces at sample cleaner MLN

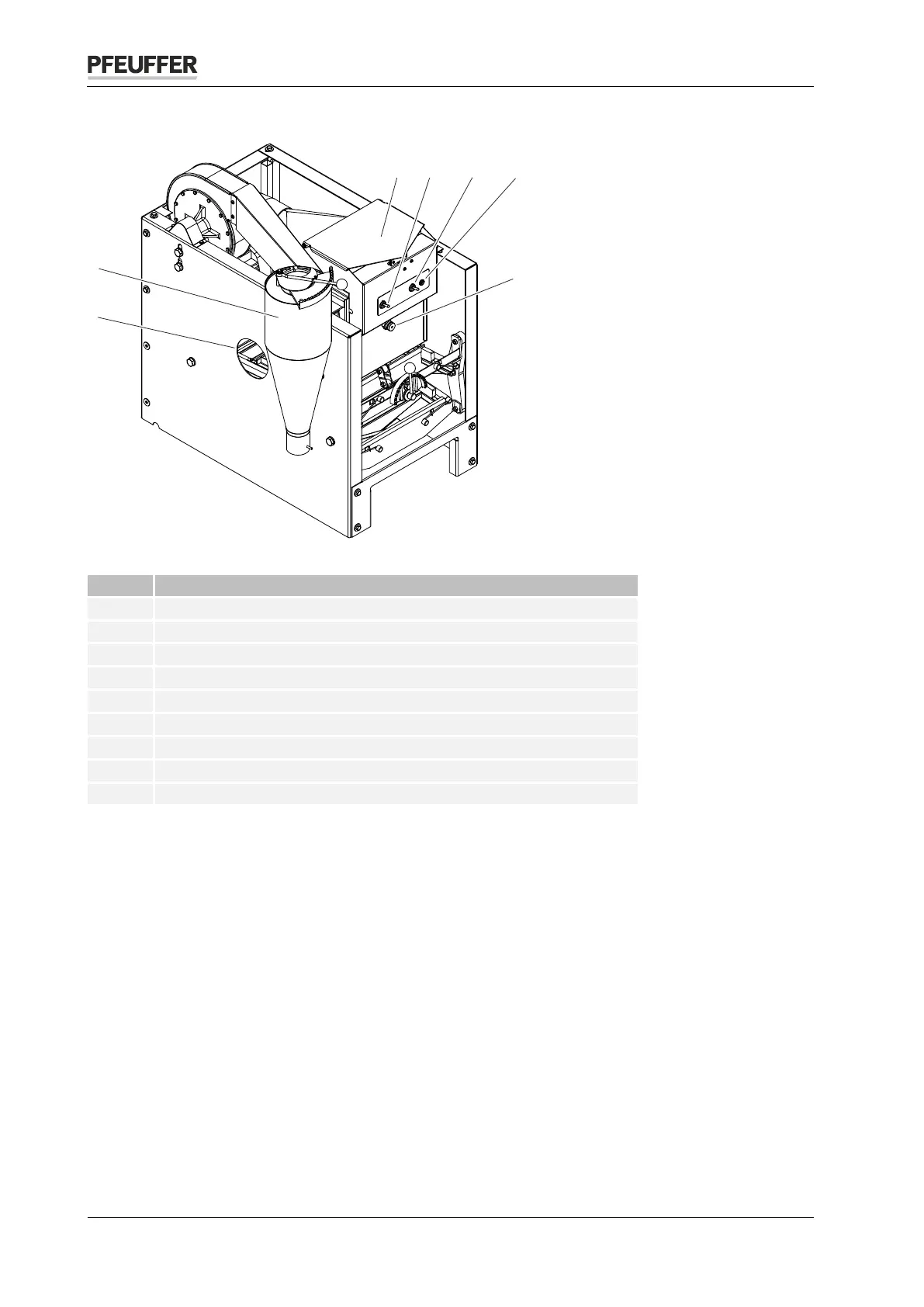

Figure 2: Interfaces
Item
Name
1
Filler hole
2
ON/OFF control switch
3
Control switch - Manually open the bottom of the deawner
4
Potentiometer - Deawner time
5
Locking lever for base of deawner
6
Outlet - Cleaned sample
7
Collection pan for sand, weeds and coarse dirt particles
8
Service holes (right and left on the casing)
9
Cyclone
2.3 Operating and hazard areas associated with the machine
Operating area
Ensure a sufficient working height (depending on the body size of the operating personnel) of approx.
60-65 cm. For this, a suitable base frame is necessary so that the operating personnel can access the
collecting pans ergonomically.
Hazard area
The entire area of one metre around the machine is dangerous during adjustment, maintenance and
repair work. The swivelling range of the self-opening door as well as of the filler cap must also be taken
into consideration.
 Do not keep any objects around the machine.
2
3 4
5
1
8
7
6
9
