7.4.1 Top sieve (straw sieve)
 Pull the sieve to be changed.
 Slide the new sieve on the sieving tray till the stop. It might have to be slightly lifted.
 Pay attention to the mounting position; refer to figure 15.

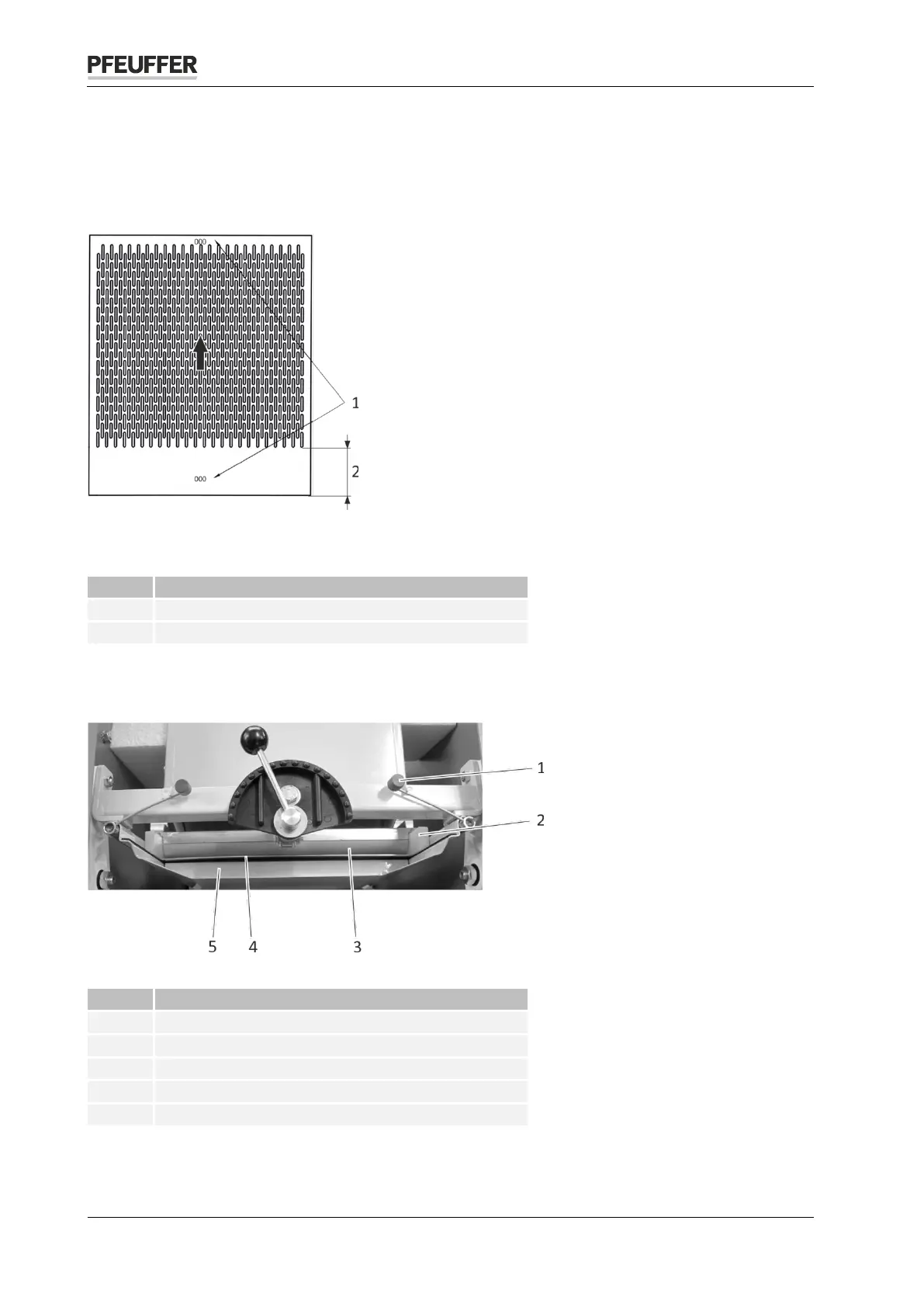

Figure 15: Straw sieve - mounting position
Dimensions: 300x350 mm
Item
Name
1
Engraved number
2
Surface not stamped
 The plastic sheet on the sieve holder must pull backwards in order to avoid the grains falling out after
the deawning.
Figure 16: Correct mounting - Straw sieve
Item
Name
1
Tension spring clamped
2
Sieve holder
3
Correct position of the plastic screen (backwards)
4
Sieve
5
Sieving tray
