Function
18 | 38
Operating instructions sample cleaner MLN | Revision 3
6 Function
6.1 Components of sample cleaner MLN

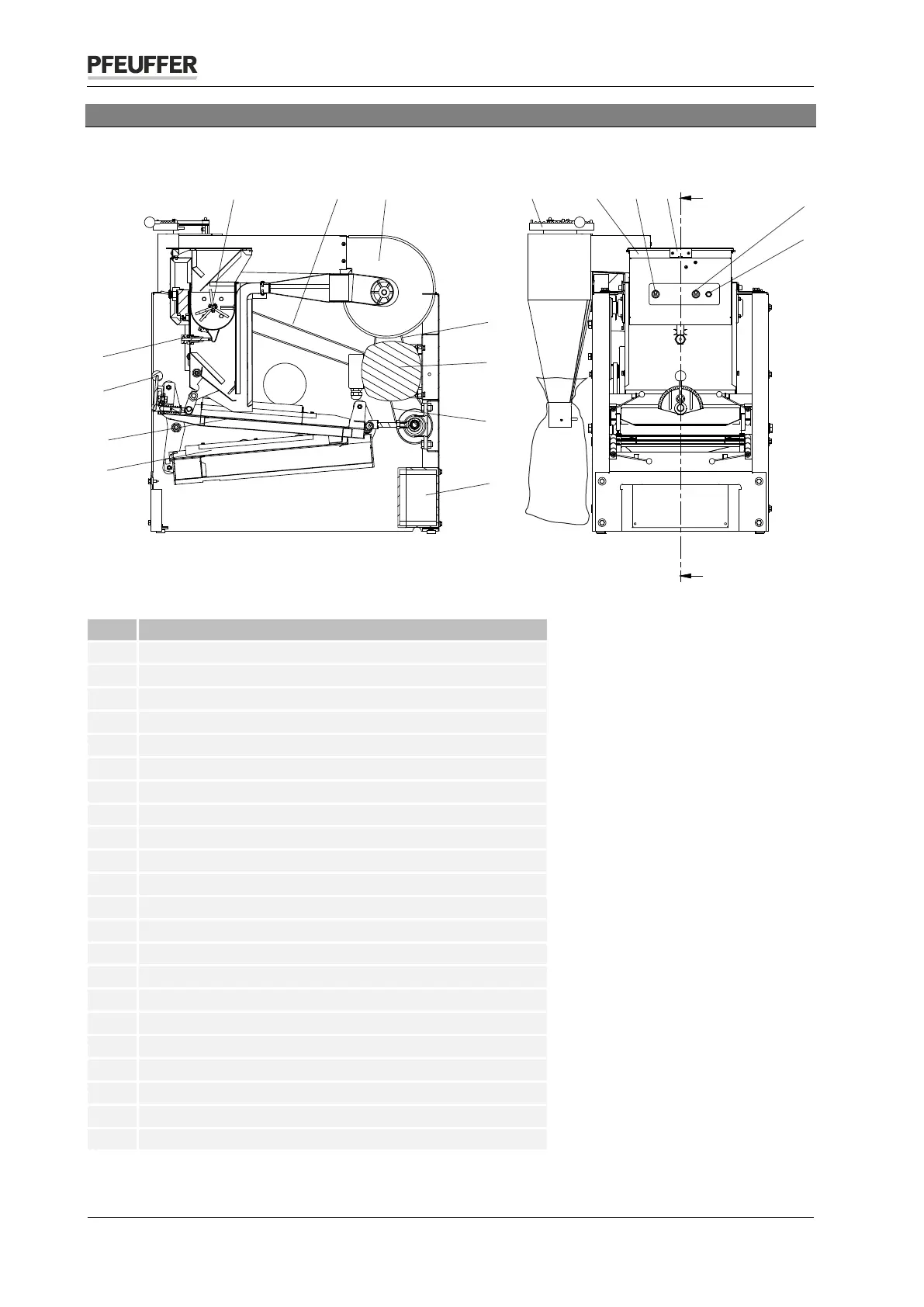

Figure 7: Overview
Item
Name
1
Dust collection bag
2
Cyclone
3
Air regulation
4
Filler cap
5
ON/OFF control switch
6
Locking latch for filler cap
7
Control switch - Open the bottom of the deawner
8
Potentiometer - Deawner time
9
Tension springs on sieving tray
10
Collection pan for cleaned sample
11
Collection pan for sand, weeds and coarse dirt particles
12
V-ribbed belt - Fan
13
Motor
14
V-ribbed belts for sieve drive
15
Switch box
16
Sand sieve (Bottom sieve)
17
Straw sieve (Top sieve)
18
Outlet regulation
19
Locking lever for base of deawner
20
Deawner
21
V-ribbed belt - Deawner
22
Fan
3
12
15
14
13
8
7
5
4
22
20
6
18
17
16
21
A
A - A
19
2
1
9
11
10
9
9
9
19
18
A
