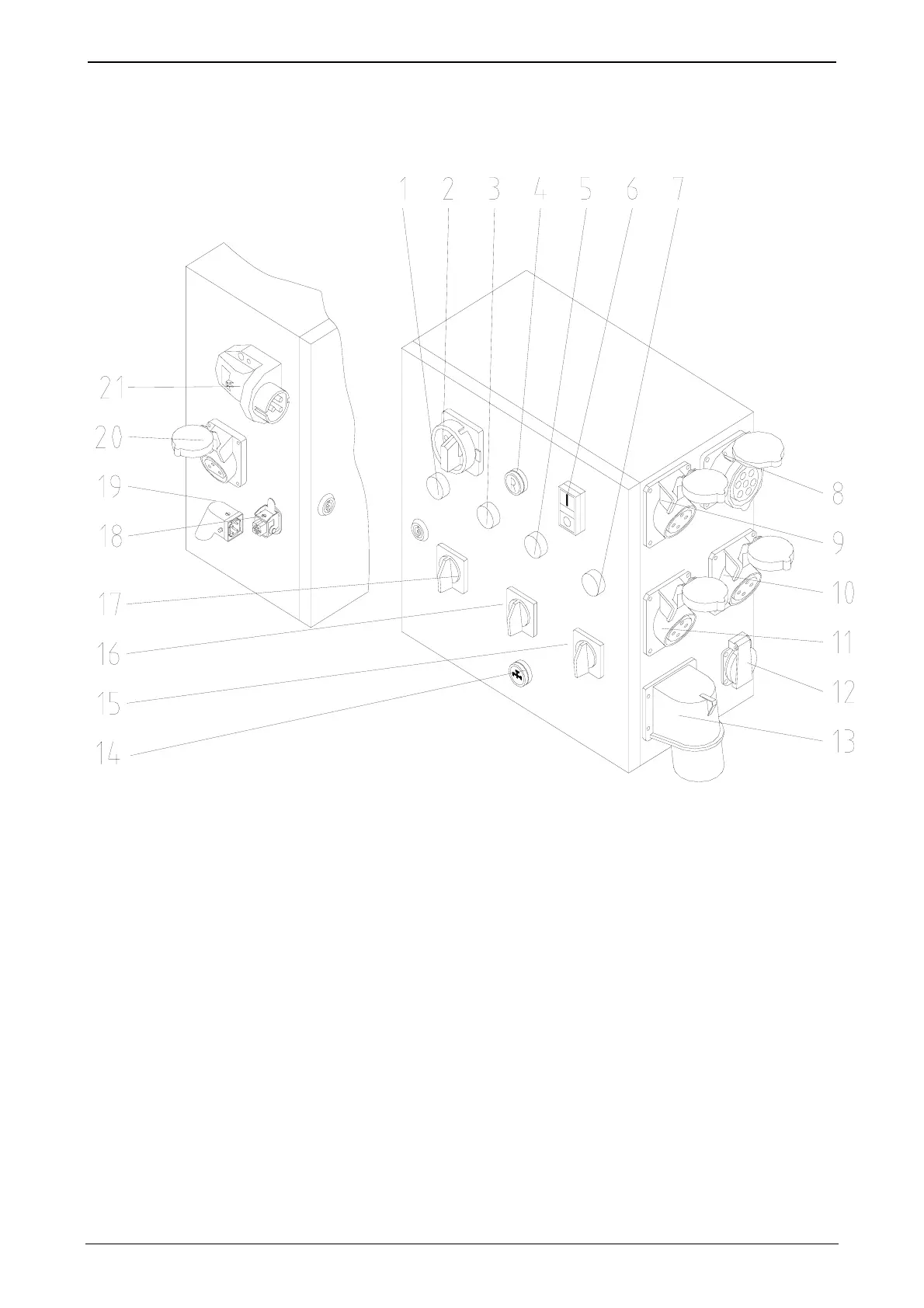

Overview of control box G 5 SUPER: ltem number 00 00 71 34
1. Display Lamp: Direction of Rotation 2. Main Reversing Switch
3. Display Lamp: Water Pressure 4. Blue Switch: Pump Motor:Reverse
5. Empty: No Material 6. Display Lamp: On / Off
7. Display Lamp: Fault in System 8. Socket: Mixing Pump
9. Socket: Vibrator 16A 10. Socket: Compressor 16A
11. Socket: Star Wheel 16A 12. Schuko-Socket 230V, 16A fuse
13. Socket for Mains 32A 14. Water Flow Button
15. Compressor selector switch 16. Water pump selector switch
17. Star wheel selector switch 18. Remote Control Socket 42V
19. Blind-Plug 4-pin 20. Socket 42V white for Level Sensor
21. Socket: Star Wheel 16A black
