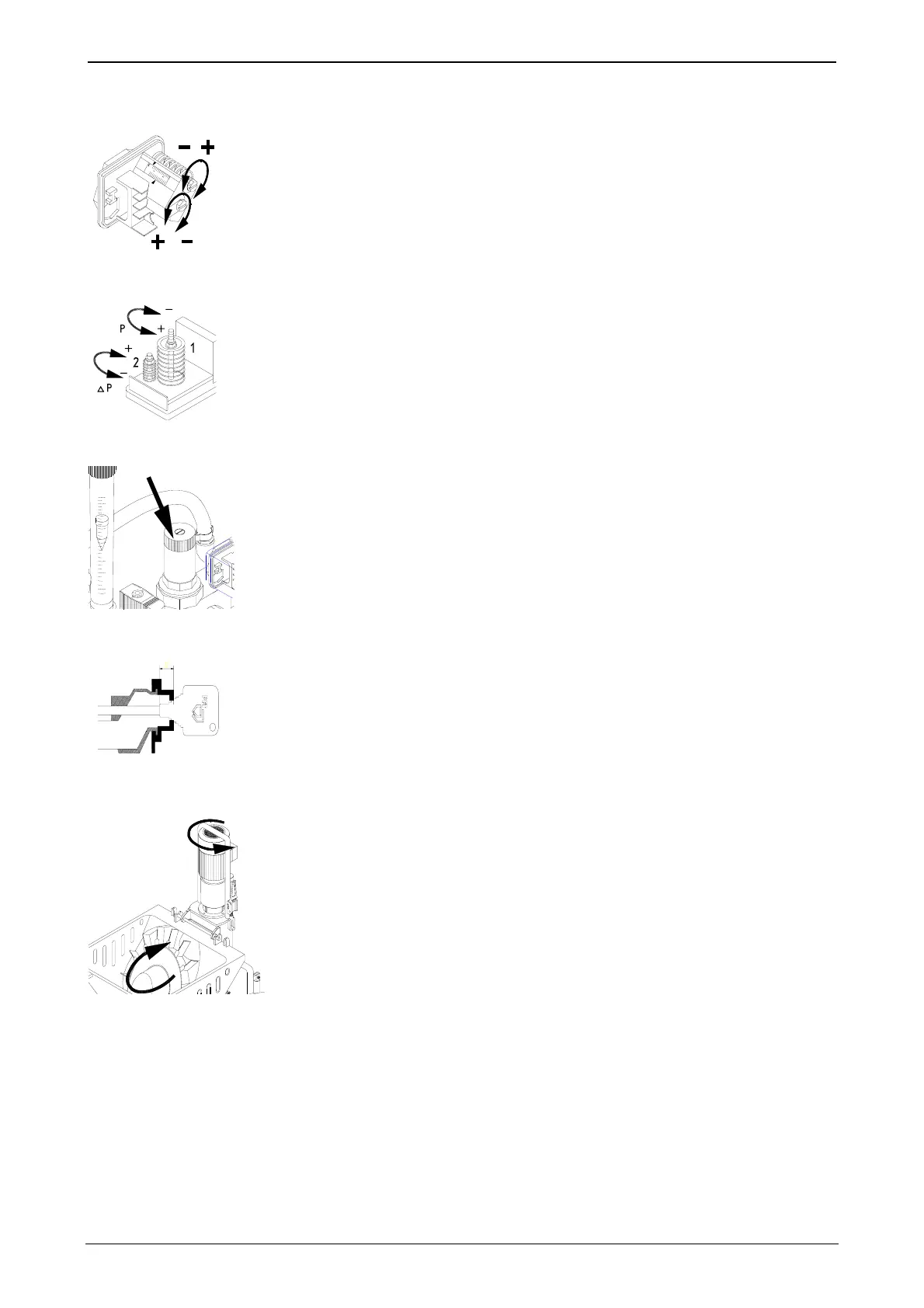

Settings
Safty switch
Machine on Machine off
Water 2,2 bar 1,9 bar
Air 1,5 bar 1,9 bar
Compressor 2,5 bar 3,1 bar
Compressor Safety Valve
Compressor on Compressor off
Compressor 2,5 bar 3,1 bar
Compressor Safety Valve
4,0 bar against completely closed air pipe (factory setting and secured with
knurled screw)
Pressure reducing valve:
1,9 bar at max. throughput
Gap : Air Nozzle Pipe
The gap between the air nozzle tube and spraying cap should correspond
to the diameter of the spraying cap.
e.g.: 14 mm spraying cap = 14 mm gap.
Direction of rotation of the star wheel motor
The star wheel usually works independently of the direction of rotation. If a
SILOMAT conveying system is being used, we recommend a clockwise
direction of rotation (factory setting). This ensures that the pump motor also
runs in the correct direction.
