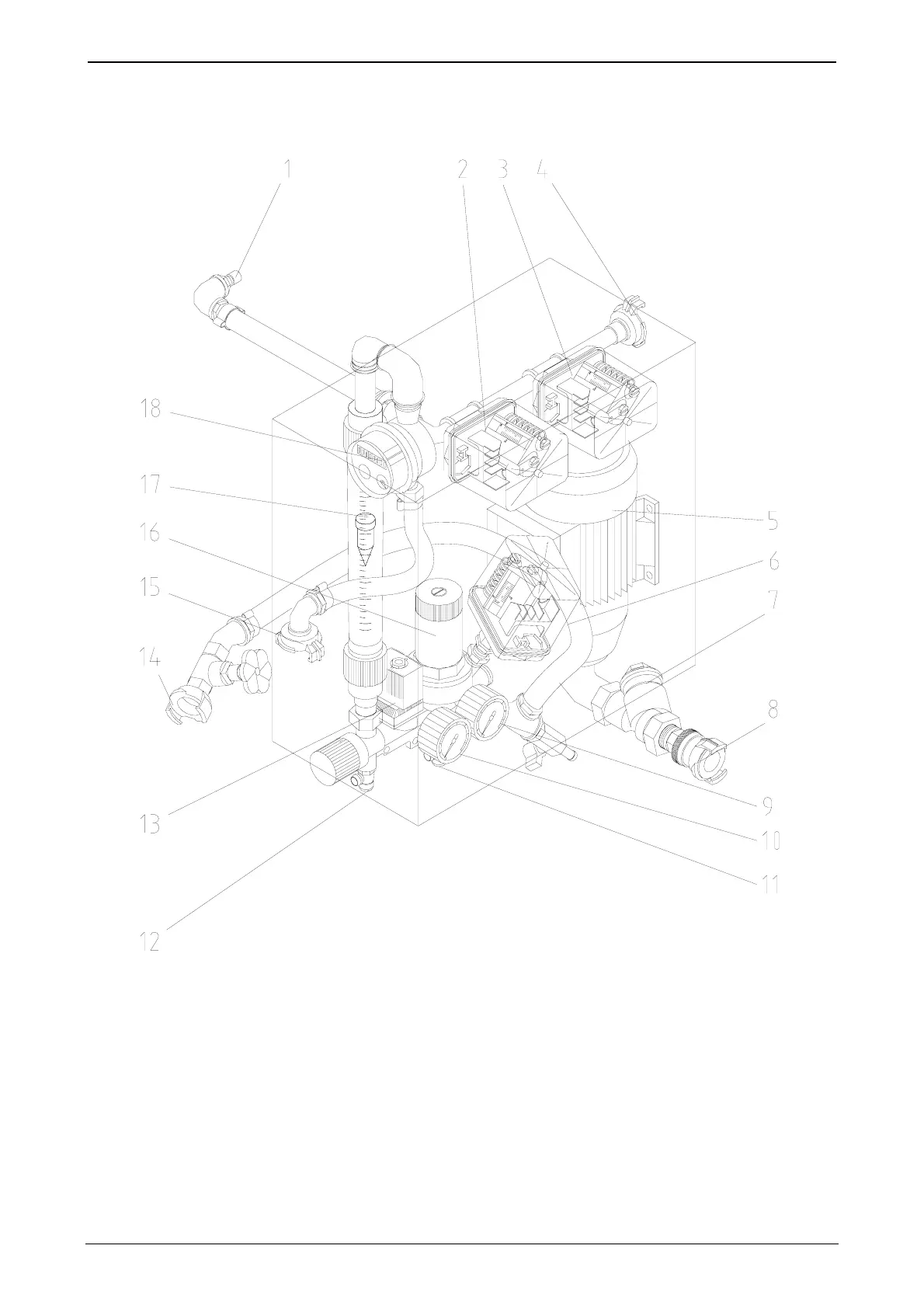

Overview of water / air manifold
1. Air from Compressor 2. Air-Pressure Saftey Switch
3. Compressor Switch 4. Air to Spraying Gun
5. High Pressure Pump AV 3 6. Water Saftey Switch
7. Water Inlet Filter 8. Water Connection form Mains or Tank
9. Pre-valve Pressure 10. Pre-valve Pressure
11. Water Outlet 12. Water Outlet
13. Solenoid Valve 14. Water Outlet Valve
15. Water to Mixing Tube 16. Pressure Reducing Valve
17. Water Flow Meter 18. Water counter max. 10bar
