13 Structure RITMO L plus
13.1 Overview RITMO L plus
11 10 9 8 7

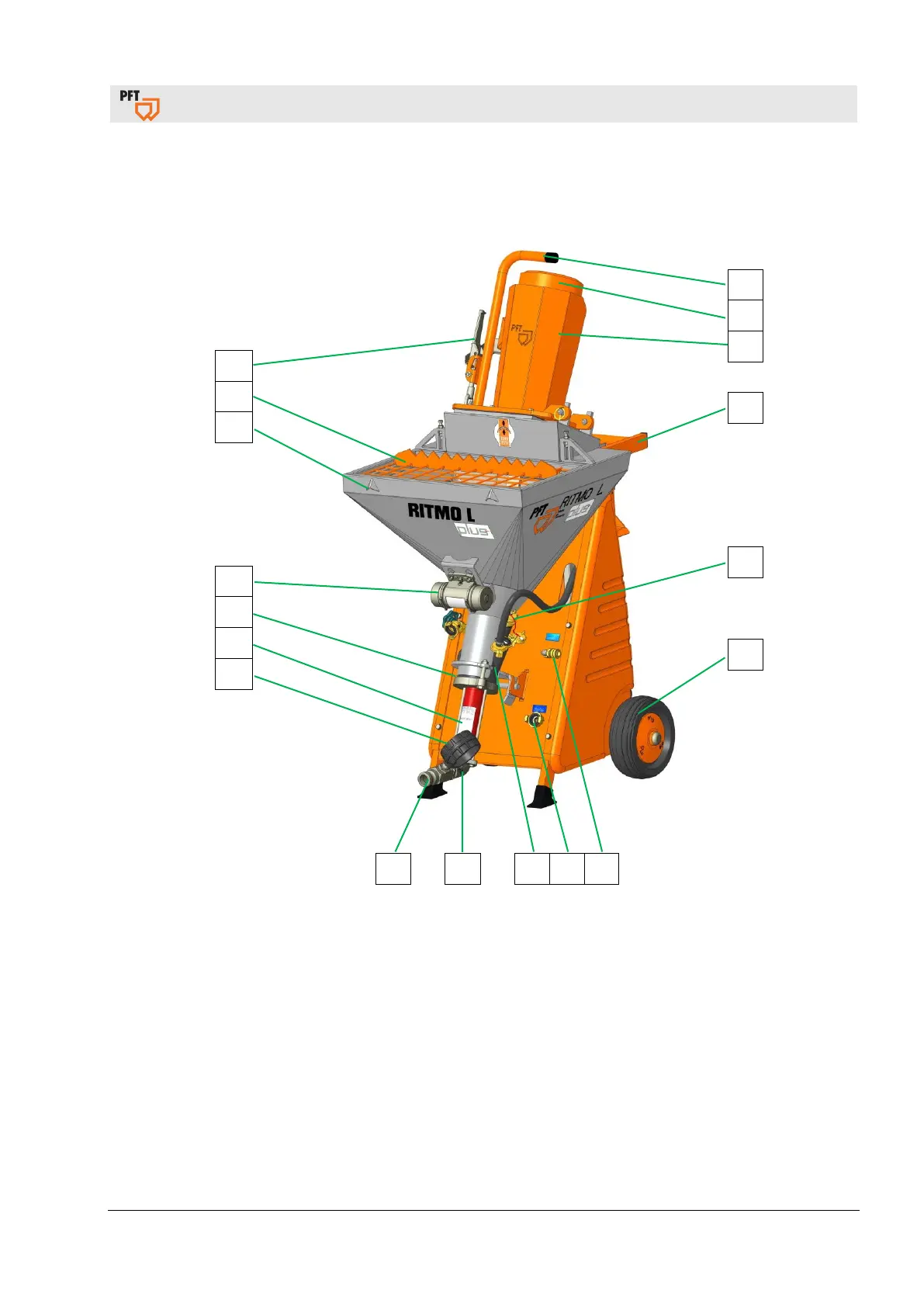

Fig. 5: Overview RITMO L plus
1 Engine guard
2 Gear motor
3 Motor guard plate
4 Push handle
5 Water supply to mixing tube / rubber mixing zone
6 Wheel
7 Compressed air from air compressor to spray gun
8 Water inlet, water connection from water supply
9 rubber mixing zone
10 Pressure flange
11 Mortar hose connection
12 Mortar pressure gauge
13 Pump unit B4-2wf / SD6-3
14 Suction flange
15 Vibrator
16 Material hopper
17 Protective grille with bag opener
18 quick fastener
1
2
3
4
5
6
18
17
16
15
14
13
12
