Mixing pump RITMO L plus FC-230V Overview – Operation
Connection to the 230V power supply
2020-11-09 33
33 Connection to the 230V power supply
33.1 Connection to power distributor
1 3 2

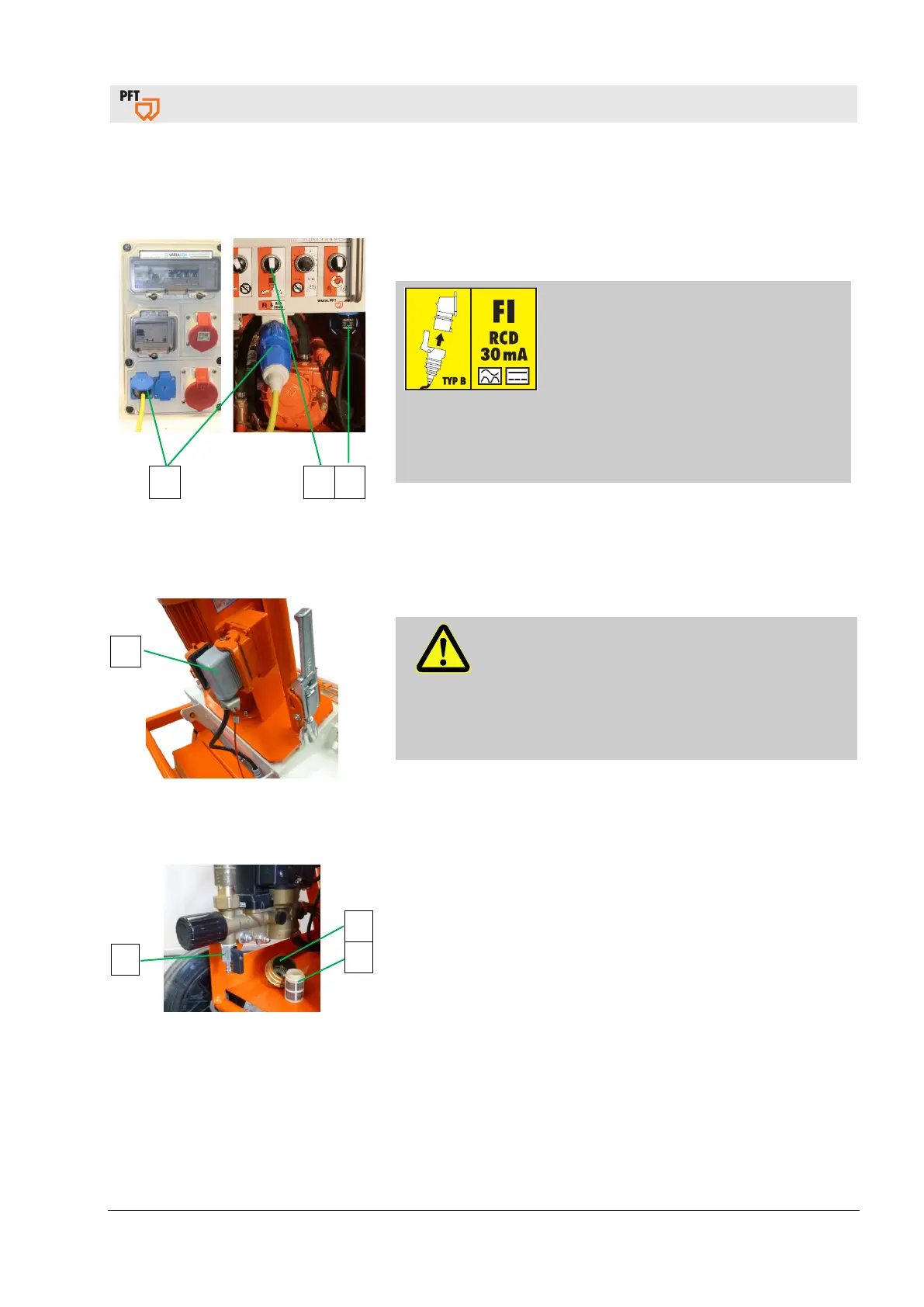

Fig. 52: Power connection
1. Only connect machine (1) to power distributors that conform to
regulations.
DANGER!
Danger of death due to electric current!
The electrical connection must be
fused correctly:
For the operation of frequency converters,
only connect the machine to a power
source with an approved FI circuit
breaker (30mA RCD - residual current
device) of type “B” that is sensitive to
all currents.
2. Pull connector plug of the air compressor (2) off the control box.
3. Selector switch (3) at the middle position.
33.2 Motor connecting cable for pump motor
Fig. 53: Motor connection cable
WARNING!
Danger of death due to rotating parts!
Improper operation can lead to serious injuries
or equipment damage.
The respective drives (motors) may only be
operated via the corresponding control box of
the machine.
1. Connect motor connecting cable (1) to gear motor.
33.3 Checking the dirt trap screen
Fig. 54: Dirt trap screen
1. Unscrew the brass screen cup (1) with outlet tap from
the pressure reducer.
2. Check whether the dirt trap screen (2) in the pressure reducer
is clean.
Screen for pressure reducer: Item number 20156000
3. Screw in brass screen cup (1) again.
4. Close all water outlet taps (3).
1
2
1
3
