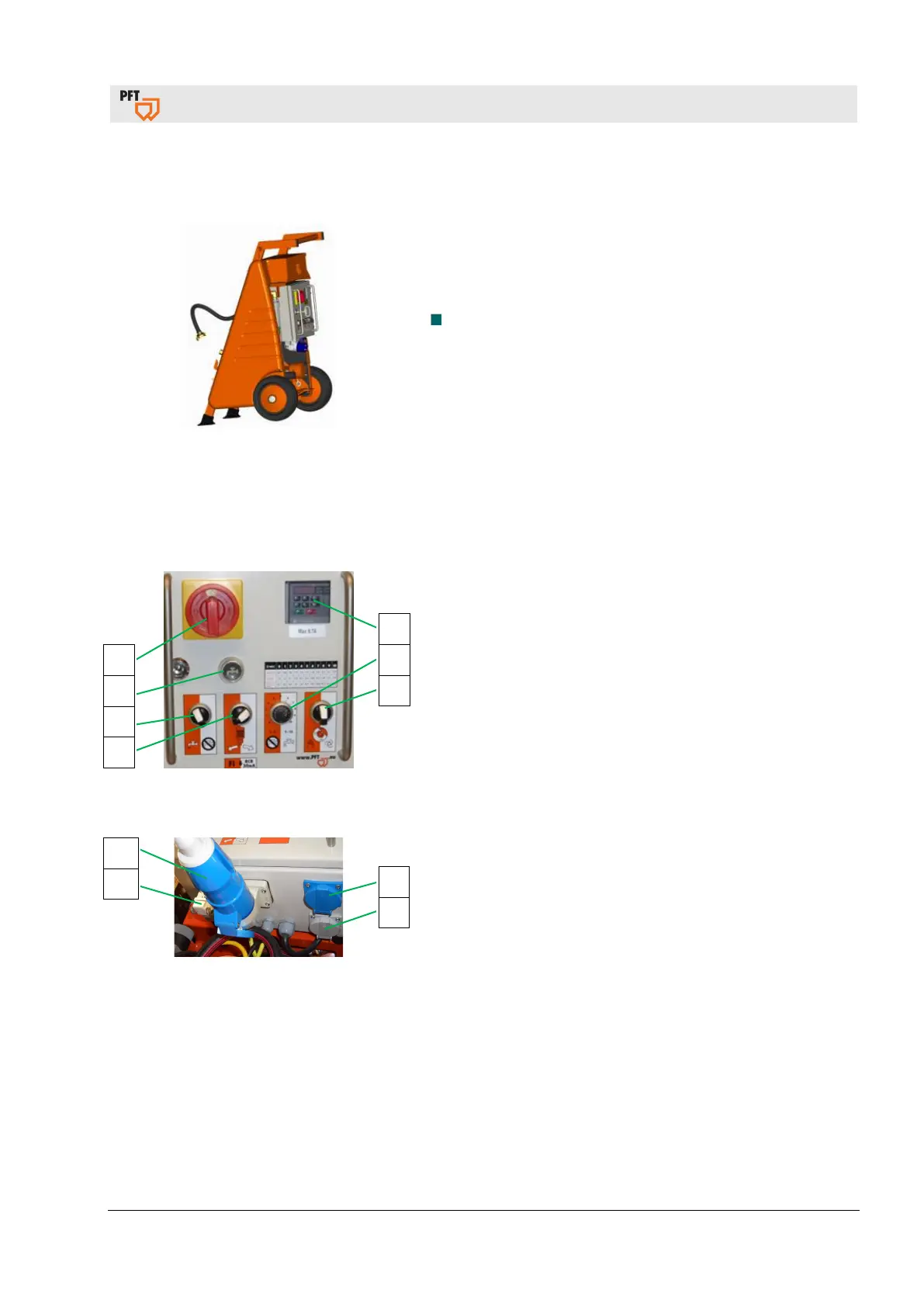

14.3 Chassis with compressor and control box
Fig. 9: Frame
Chassis with water manifold and control box.
Weight: 64.2 kg.
15 Description of assemblies
15.1 Overview of control box RITMO L plus
Fig. 10: Control box module
Fig. 11: Control box connections
1. Sight glass for frequency converter.
2. Potentiometer for motor speed / material volume.
3. Selector switch Vibrator “ON / OFF”.
4. Selector switch Pump.
5. Selector switch Operation with water (as mixing pump),
without water (only as pump).
6. Push button Water supply push
7. Main switch, also functions as Emergency OFF switch
.
8. Connection for air compressor 230 V
(socket blue continuous current).
9. Connector for vibrator 230 V (socket grey controlled).
10. Dummy plug / remote control connection.
11. Connection for main current 230 V, 1Phase, 16 A.
