Mixing pump RITMO L / RITMO M Overview - Operation
Connections RITMO L / RITMO M
18
2016-02-17

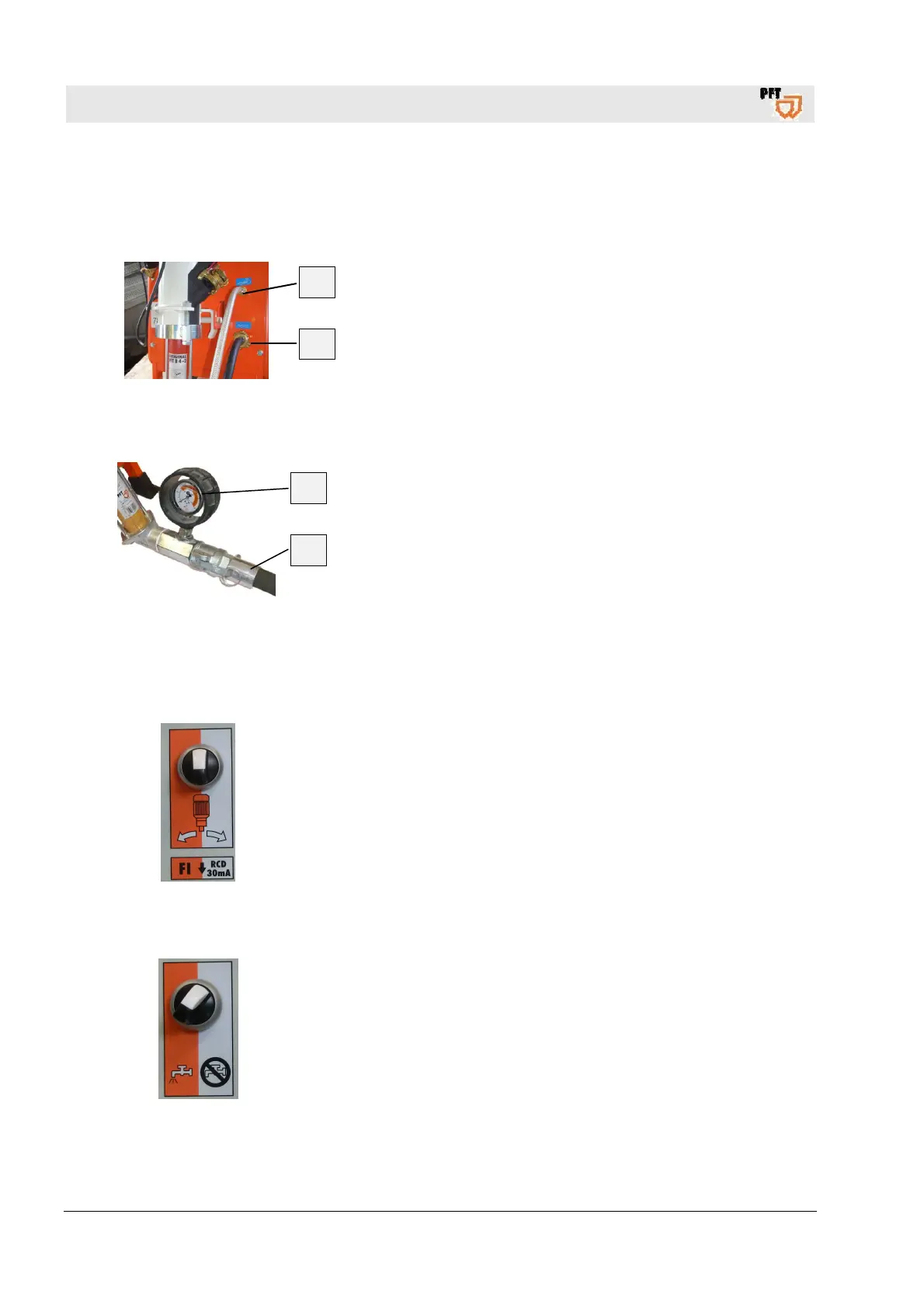

9 Connections RITMO L / RITMO M
9.1 Water and air connections
Fig. 15: Connection Water and Air
1. Connection Air to spray gun (1).
2. Connection water supply from mains (2).
9.2 Connection Mortar hose
Fig. 16: Connection Mortar hose
1. Connection mortar hose (1) at the mortar pressure gauge (2).
10 Operating modes
10.1 Selector switch pump motor
Fig. 17:
Operating modes pump motor
The pump motor has three operating modes:
Selector switch position “0”:
The machine is switched off.
Selector switch right (toggle):
The machine starts when the main switch is switched on.
Selector switch left (momentary contact):
The pump motor runs backwards, thus the pump is relaxed while
all other functions are locked.
10.2 Selector switch water
Fig. 18:
Selector switch Water
The RITMO has two fields of application:
Selector switch right (toggle):
The machine is operated without water.
Can be used as pump.
Selector switch left (toggle):
The machine is operated with water.
Can be used as mixing pump.
1
2
2
1
