Mixing pump RITMO L / RITMO M Overview - Operation
Preparing the machine
32
2016-02-17
25.1 Connecting the power supply 230 V

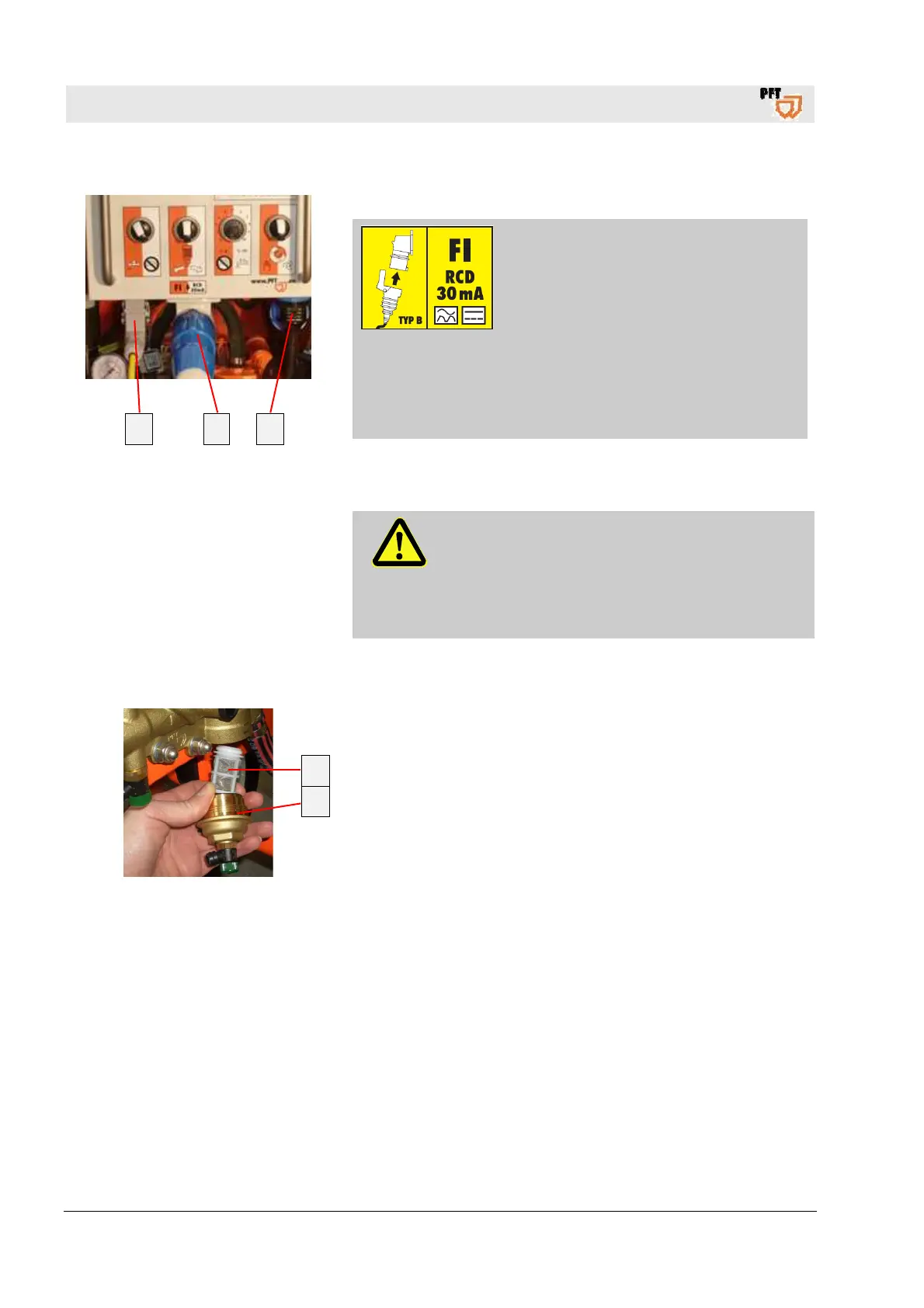

Fig. 36: Power connection
1. Connect machine (1) only to a 230V AC network.
DANGER!
Danger of death from electric current!
The connection line has to be fused
properly:
Connect the machine only to a power
source with permissible 30 mA FI
protection switch RCD (residual current
operated device) of type “B” that is
sensitive to all currents that are required
for the operation of frequency
converters.
2. Interrupt the control circuit by removing the plugs (2) from the
control cabinet.
3. Remove connector Air compressor (3) from control cabinet.
WARNING!
Danger to life from rotating parts!
Improper operation may lead to serious damage to
persons or property.
The respective drive (motors) must be operated
only with the control cabinet of the machine.
25.2 Connecting the water supply
Fig. 37: Strainer screen
1. Unscrew brass sieve cup (1) with drain tap from pressure
reducer.
2. Check whether the strainer screen (2) in the pressure reducer is
clean.
Screen for pressure reducer: Article number 20156000
3. Screw the brass sieve cup (1) again.
4. Close all water drain taps.
2 1
3
2
1
