Mixing pump RITMO L / RITMO M Overview - Operation
End of work / Cleaning
2016-02-17
57
44.5 Clean mortar hose

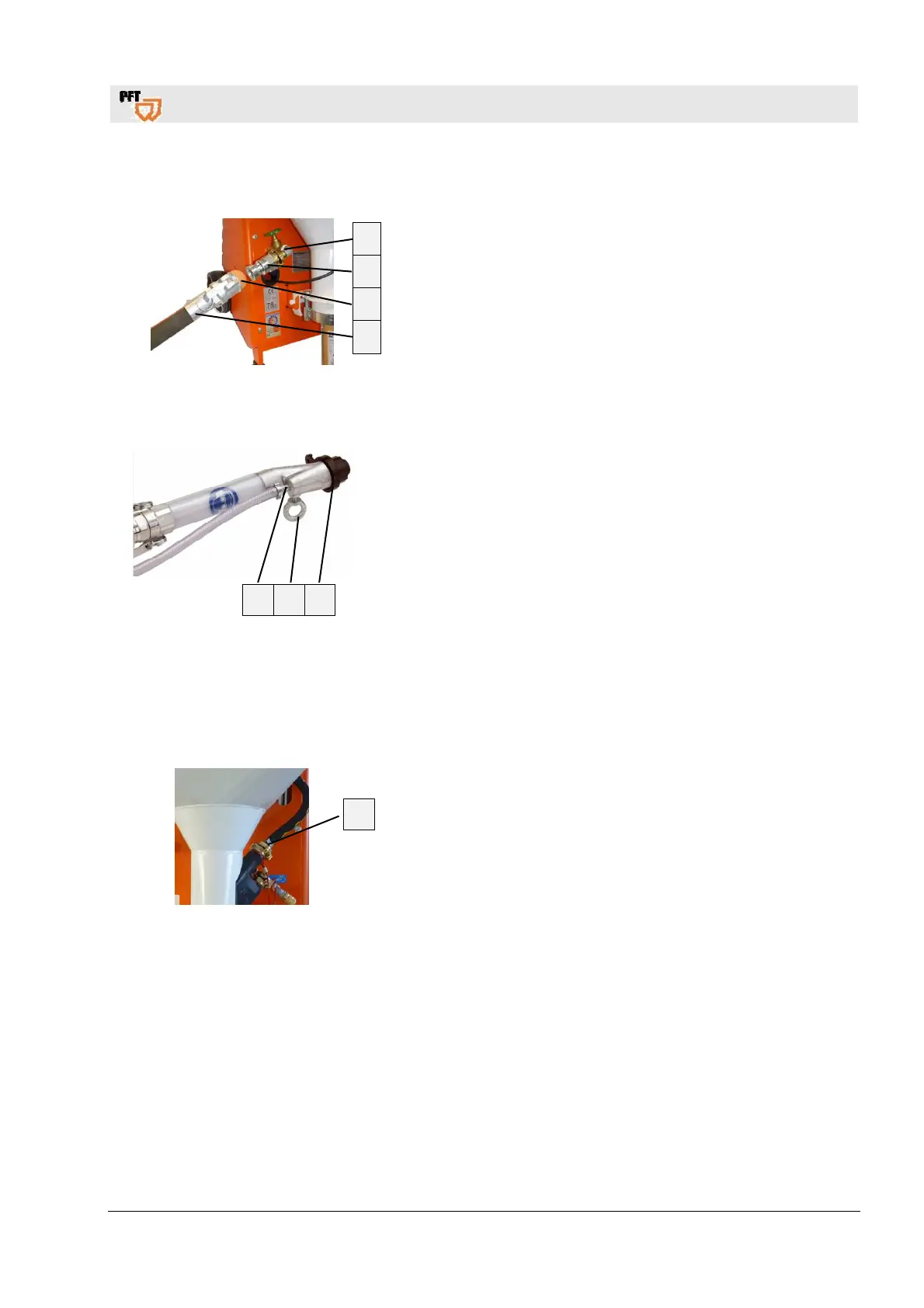

Fig. 88: Connect the cleaner coupling
1. Connect the cleaner coupling (1) at the water extraction valve
(2).
2. Press the water saturated sponge ball (3) into the mortar hose
(4).
3. Connect the mortar hose (4) with the sponge ball to the cleaner
coupling (1).
7 6 5
Fig. 89: Cleaning the spraying gun
4. Remove the fine plaster spraying nozzle (5) from the spraying
gun.
5. Loosen the ring screw (6) and pull the air nozzle tube (7) out of
the spray head.
6. Open the water extraction valve
Pos. 2 Fig. 88
until the sponge
ball exits the spraying device.
7. In case of strong soiling repeat this process again and again.
8. In case of different hose diameters, the mortar hoses have to be
cleaned separately with the matching sponge balls.
9. Hose the spraying gun with a water jet.
10. Clear the air nozzle tube (7) from the front using a round file.
11. Switch on the compressor and purge the air nozzle tube.
12. Reassemble the spraying gun.
44.6 Remove the water hose
Fig. 90: Water hose
1. Remove the water hose (1) from the mixing tube.
2
1
3
4
1
