PFT RITMO M - Cleaning Rubber Mixing Section; Insert Agitator; Clean the Hopper

Mixing pump RITMO L / RITMO M Overview - Operation
End of work / Cleaning
60 2016-02-17
44.11 Cleaning rubber mixing section

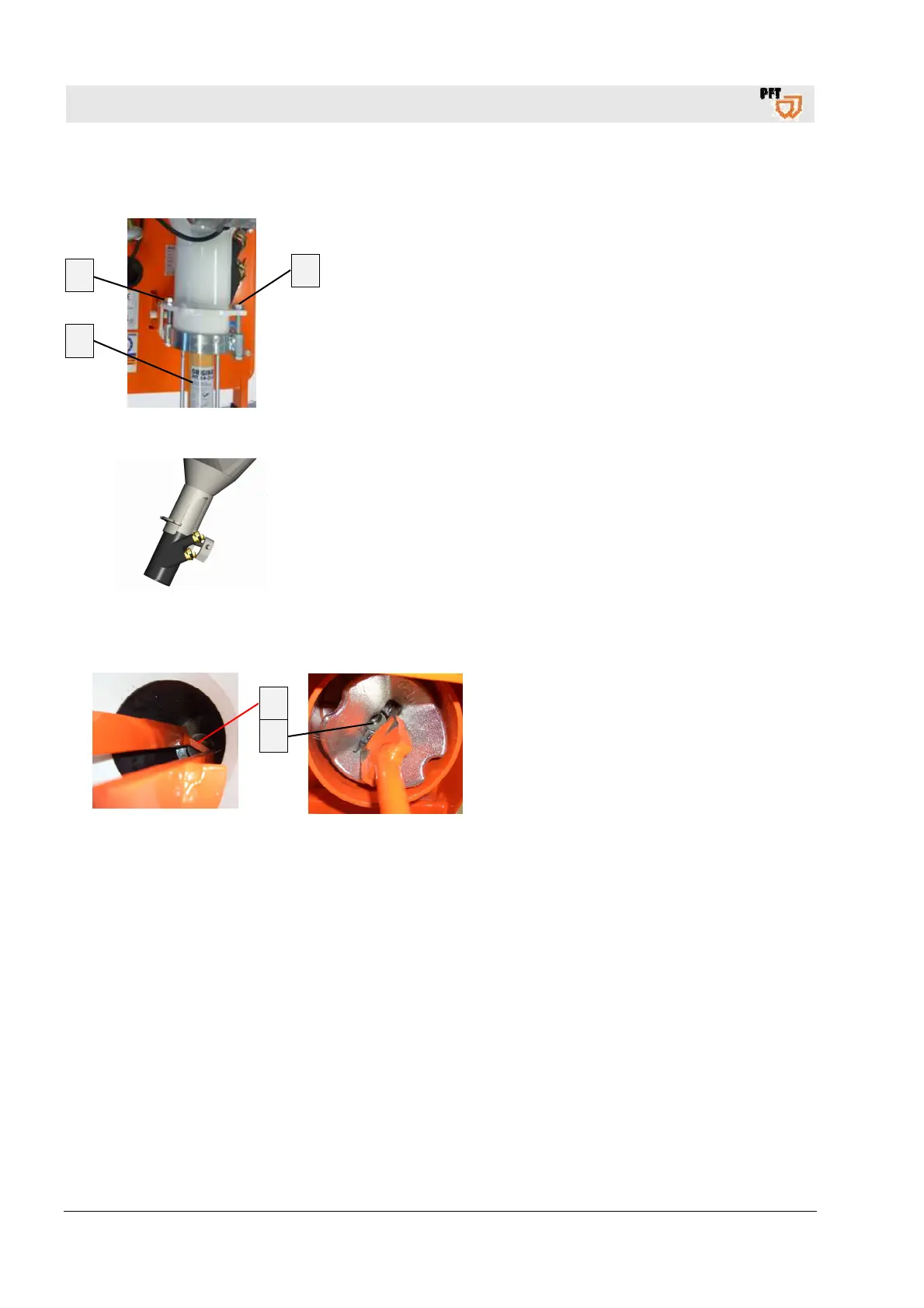

Fig. 97: Remove pump unit
1. Loosen the nuts (1).
2. Remove the pump unit (2) with mortar pressure gauge and clean
it.
Fig. 98: Cleaning rubber mixing section
4. Remove the rubber mixing section from the material container
and clean it.
5. Insert and attach the rubber mixing section and pump unit after
cleaning.
6. Ensure correct position of the parts.
44.12 Insert agitator
Fig. 99: Rotor position
Fig. 100: Drive dog position
1. Pay attention to wear at the agitator (1)
and at the drive dog (2).
2. Insert agitator and ensure correct
position at the rotor ( Fig. 99 ) and in the
drive dog ( Fig. 100 ).
3. Close the motor flange.
44.13 Clean the hopper
 The inside of the hopper can be cleaned with a water hose after
having been emptied completely.
