PG DRIVES TECHNOLOGY S-DRIVE - INSTALLATION
SK76745/10
45
7 Batteries
The controller is designed for operation with 24V lead acid batteries. The batteries may be wet or gel electrolyte types.
8 Mounting

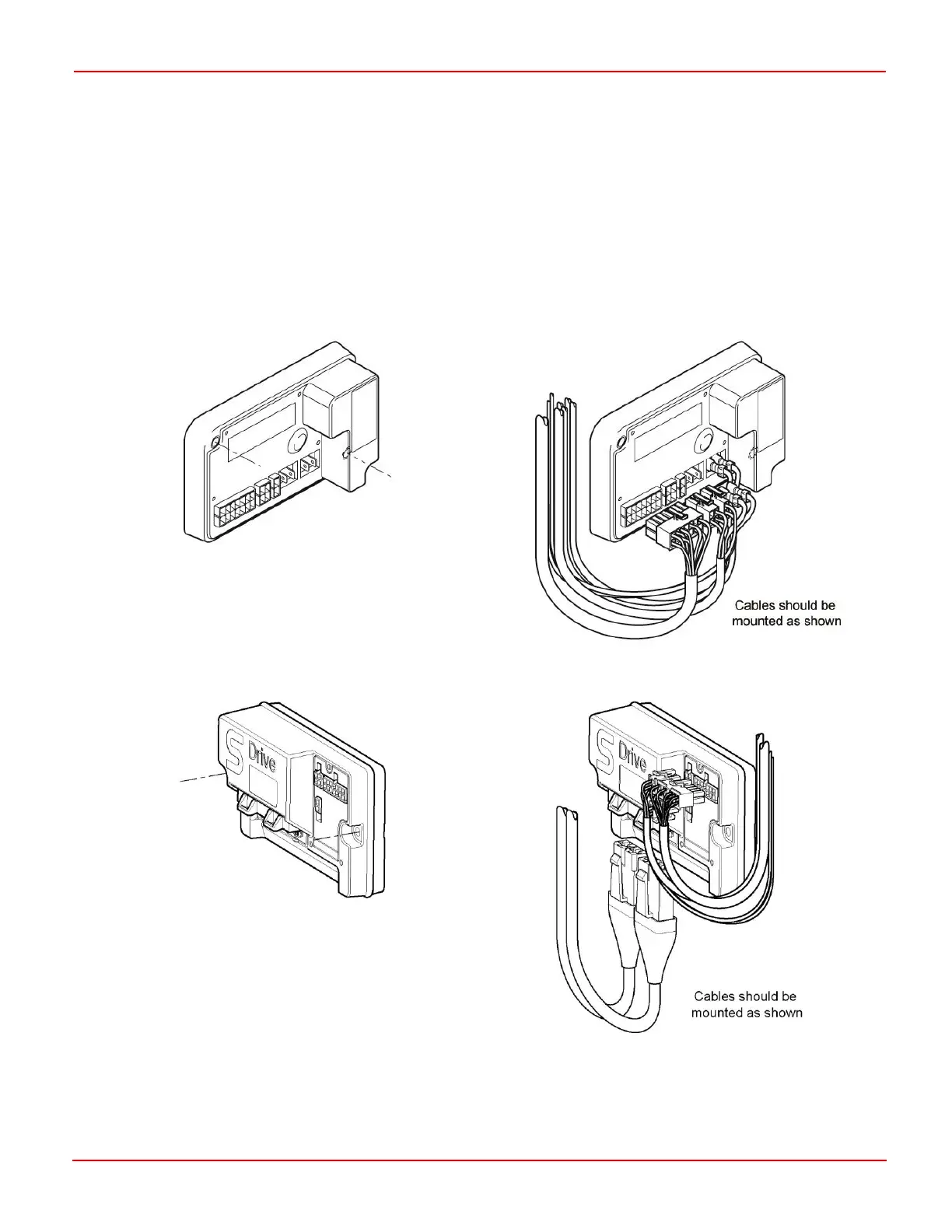

8.1 Mounting of the S-Drive
8.1.1 S45A, S70A & S90A
8.1.2 S120A + S140A
