PG DRIVES TECHNOLOGY S-DRIVE TILLER MODULE
SK76745/10
75
3.2.2 Sealing

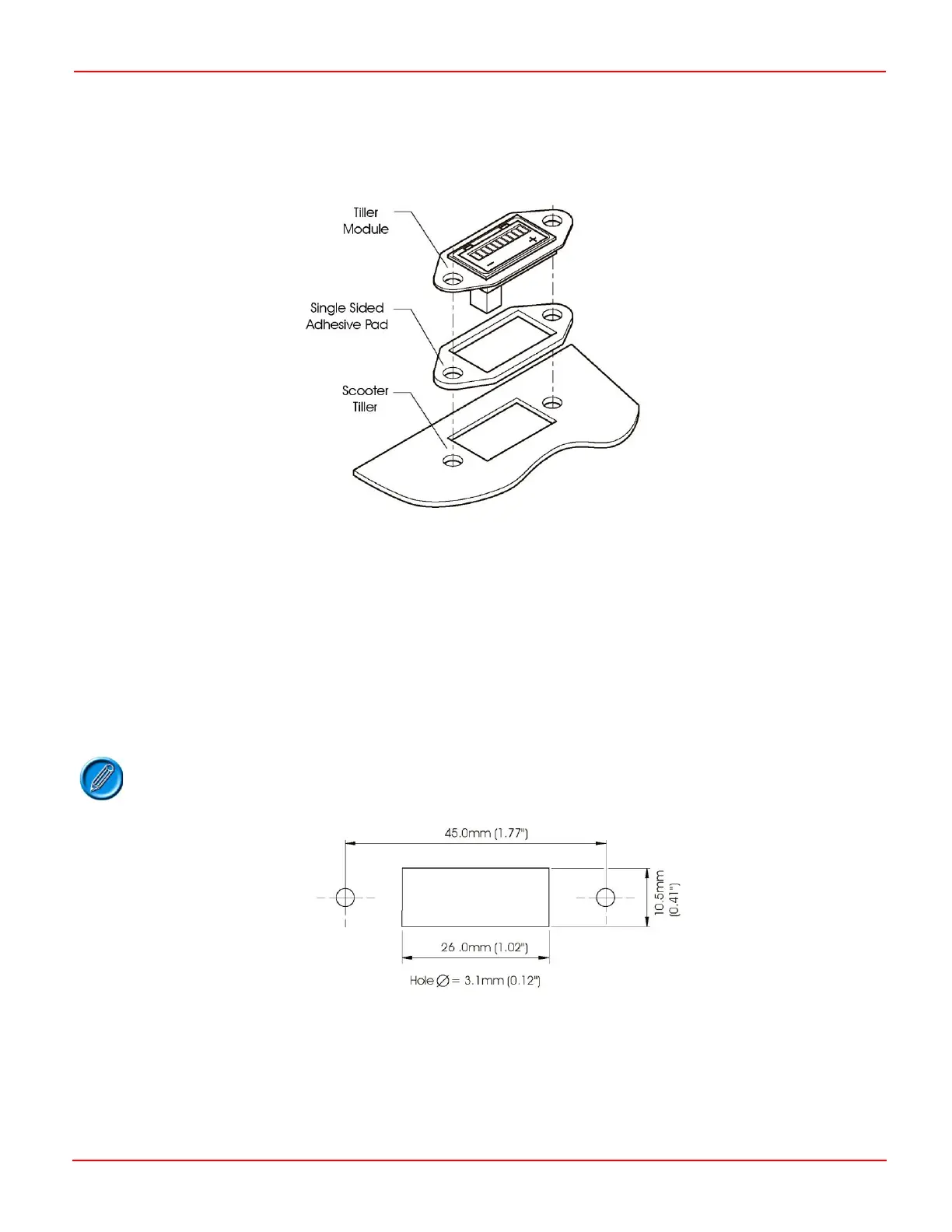

The supplied single-sided adhesive gasket should be used to create a seal between the Tiller Module and the scooter’s control
panel. See the following illustration
When correctly fitted this arrangement will give the Tiller Module an IPX5 ingress protection rating.
3.3 Inset Variant
3.3.1 Fixing
The scooter’s control panel should be fitted with holes as suggested in the diagram below.
The supplied double-sided adhesive pad should be used to secure the Tiller Module to the scooter’s control panel. See the
following illustration.
If the Adhesive pad is being used to attach the Tiller Module then the screw holes either side of
the central rectangle will not be required.
Alternatively M3 (4-40 UNC) hardware can be used. The height of the display from the printed circuit board is 8.0mm (0.31").
Suitable spacers should be used so that the display is fixed slightly below the scooter’s control panel. Ensure that the metallic
fixing hardware (nuts, washers etc.) do not touch the conductive tracks on the printed circuit board.
