PG Drives Technology S70A - S120 A & S140 A + S-Cover; S200 A + S-Cover; Orientation

S-DRIVE - INSTALLATION PG DRIVES TECHNOLOGY
SK76745/10
48

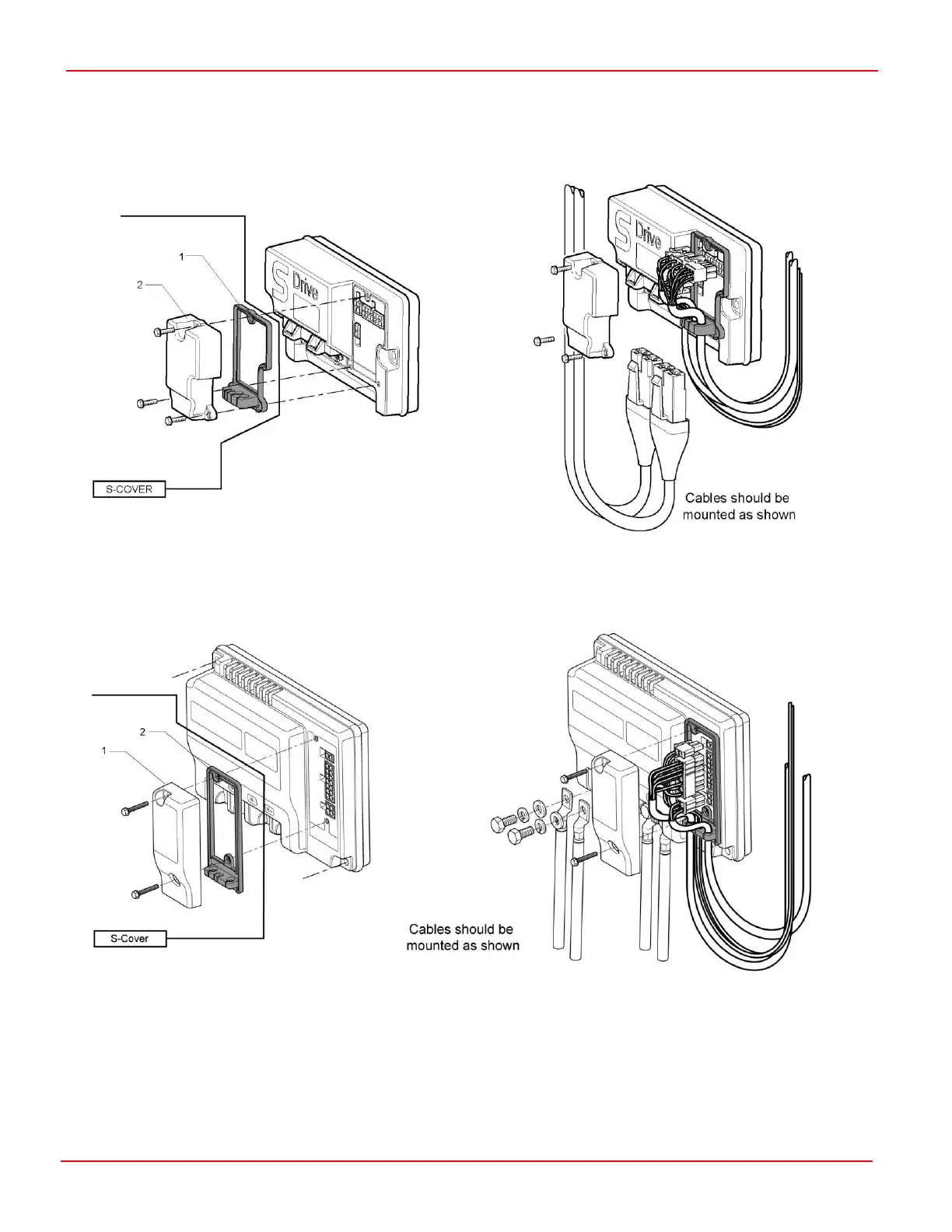

8.2.2 S120A & S140A + S-cover
8.2.3 S200A + S-cover
8.2.3 Orientation
The recommended mounting orientation is such that the connectors must be uppermost. The function of the controller is not
sensitive to mounting orientation. The electronics compartment of the controller has an IPX5 ingress protection rating.
