PGO BR-500 - Page 182

The injection controller manages the indicatornegative. The indicator should turn off after the initial check. The
indicatorturns on again when the controller auto-diagnosis detects a failure. When thefailure is fixed, the indicator
turns off again, but the relevant functionalchecks must be carried out. The indicator may turn on regardless of the
engineoperation.
PGO BR-500 ENGINE
1
- Set the switch to "ON". Set the emergency switch to "RUN". Keep the side stand raised.
Check whether the indicator turns on for 5 seconds
YES go to 2 NO go to 3
2
- The system is in good working order.
3

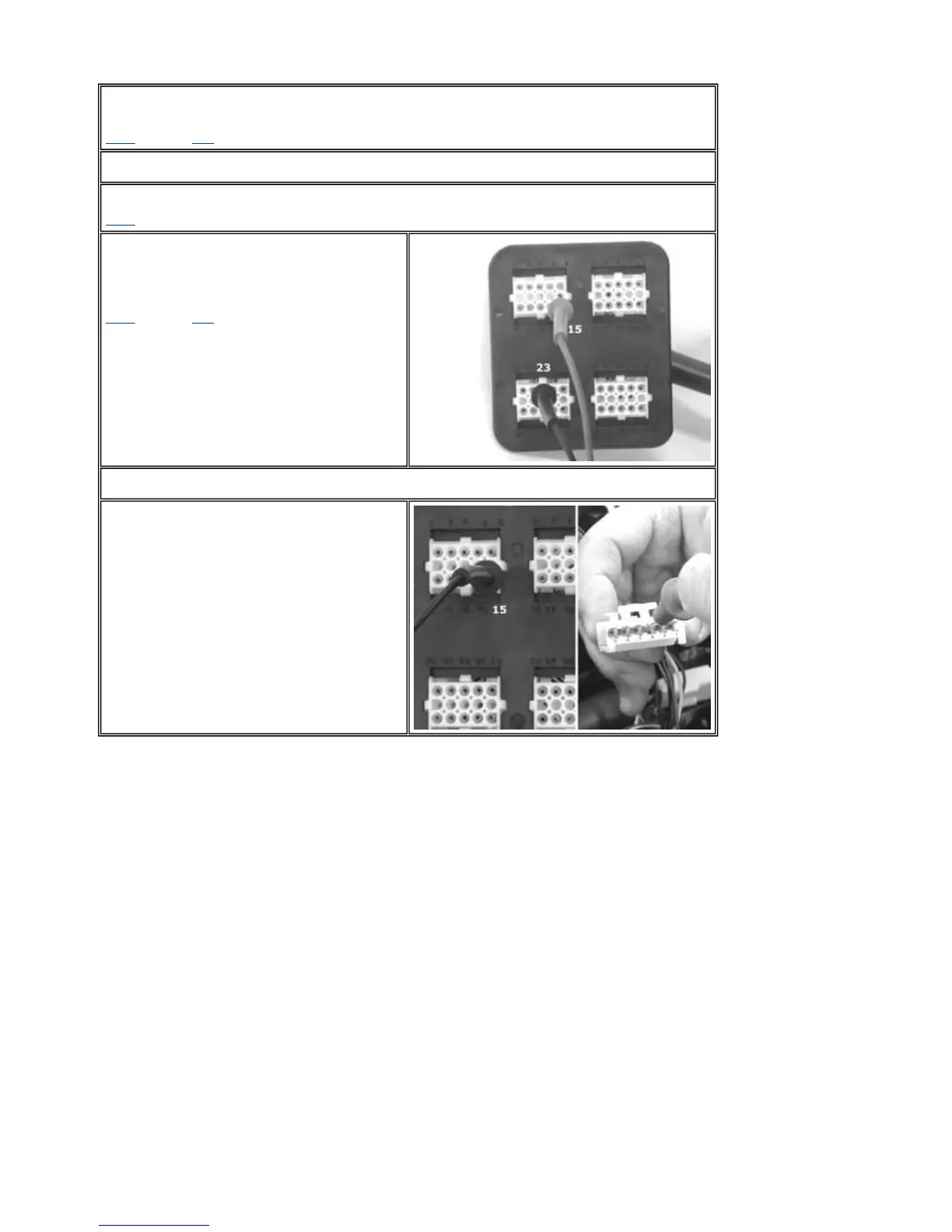

- Place the specific tool dwg. 020481Y between controller and system.
YES go to 4
4
- Switch set to "ON".
Emergency switch set to "RUN".
Side stand raised. Wait more than 5 seconds.
15 ?23 = battery voltage
YES go to 5 NO go to 6
5
- Check the controller connector. Check the controller.
6
-Check the continuity between pin 15 of
the controller and brown ?black of the 6-input
connector of the instrument unit.
P.9-35
Injection indicator circuit
