PGO BR-500 - Rear Brake Caliper and Pad Service

C. Rear brake caliper & pads

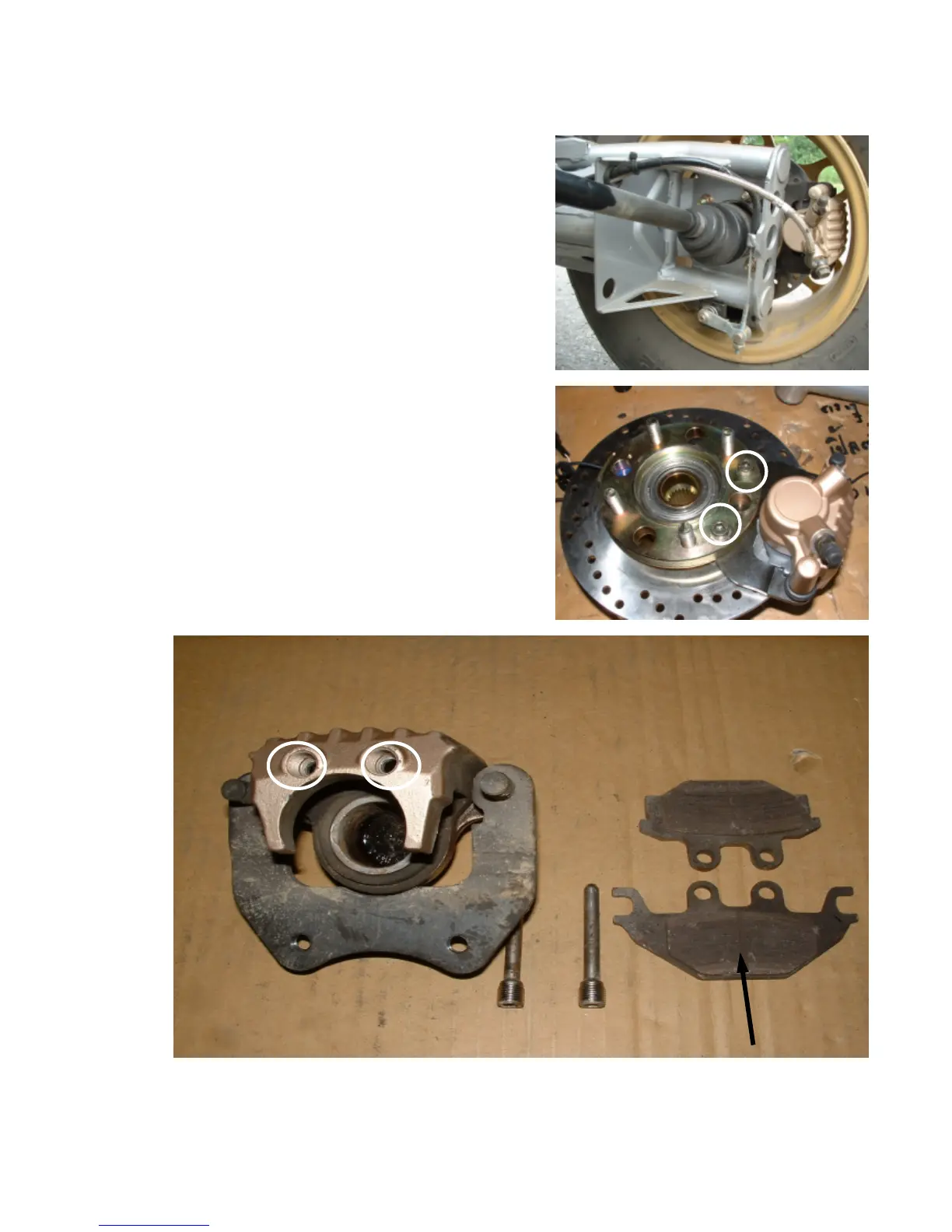

 Dismantle:
1. Dismantle the rear wheel & rim assembly.
2. Loosen the 4 nuts with the rear swing arm,
dismantle the rear caliper & brake disk assembly.
3. Loosen the 2 bolts of caliper bracket with the rear
brake hub.
4. Loosen the 2 socket bolts of caliper’s pads.
5. Press the bracket of caliper to the cylinder side.
6. Withdraw the brake pads.
 Inspect
If the pads almost reach the grove bottom, or less
than 1.5mm, you have to replace a new pairs.
 Install
1.
Reverse the dismantle procedure to install the pads.
