D. Hand park caliper & pads
Dismantle:
1. Dismantle the rear wheel & rim assembly.
2. Loosen the adjusting nut of hand brake cable.
3. Loosen the 2 bolts with the rear swing arm, withdraw the hand park caliper.

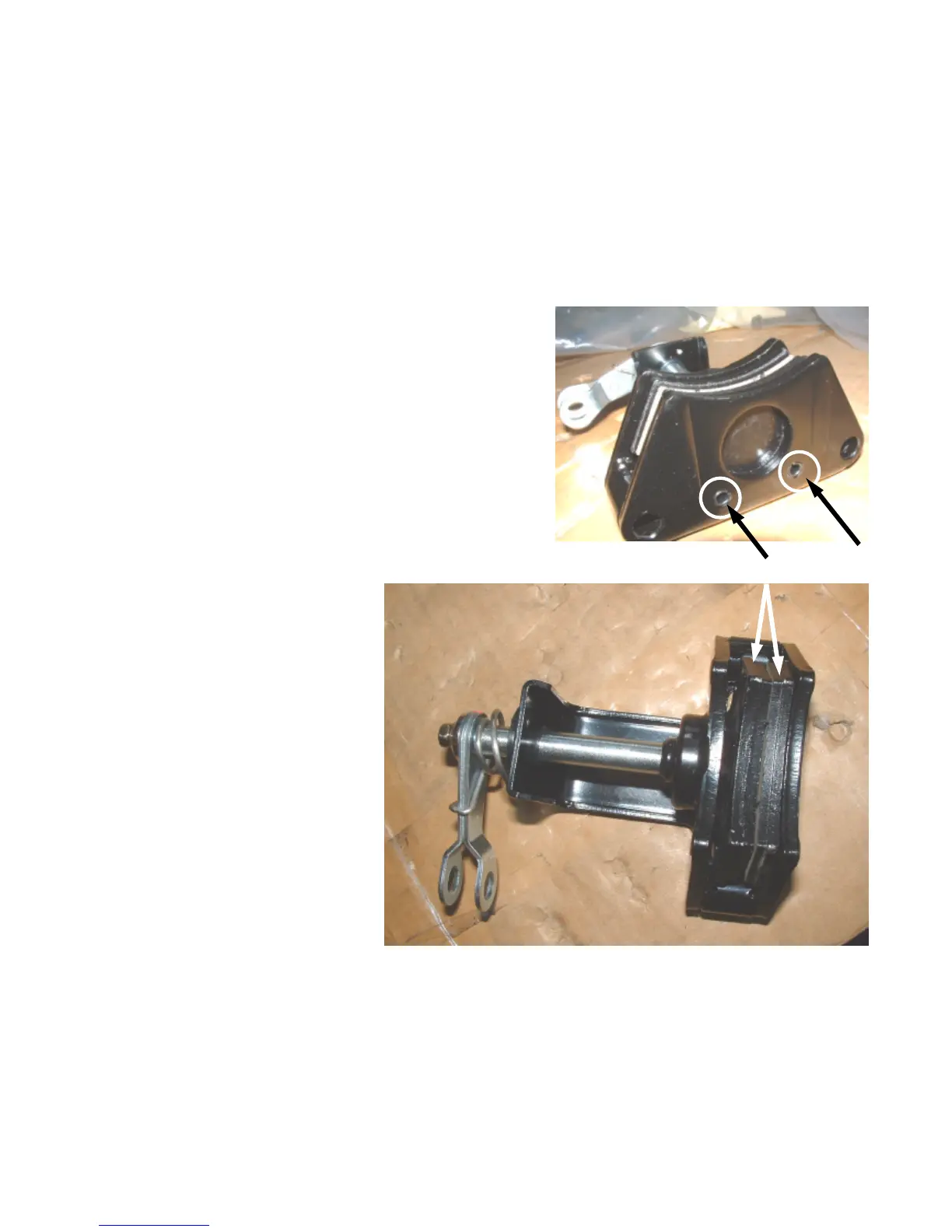

4. Punch the 2 lock pin(~6mm diameter) according to the figure shown direction.
5. Withdraw the pads.
Inspect
If the pads almost reach the bottom, or less than 1.5mm,
you have to replace a new pairs.
Install
1.
Reverse the dismantle procedure to install the pads.
P.8-5
PGO BR-500 ENGINE
