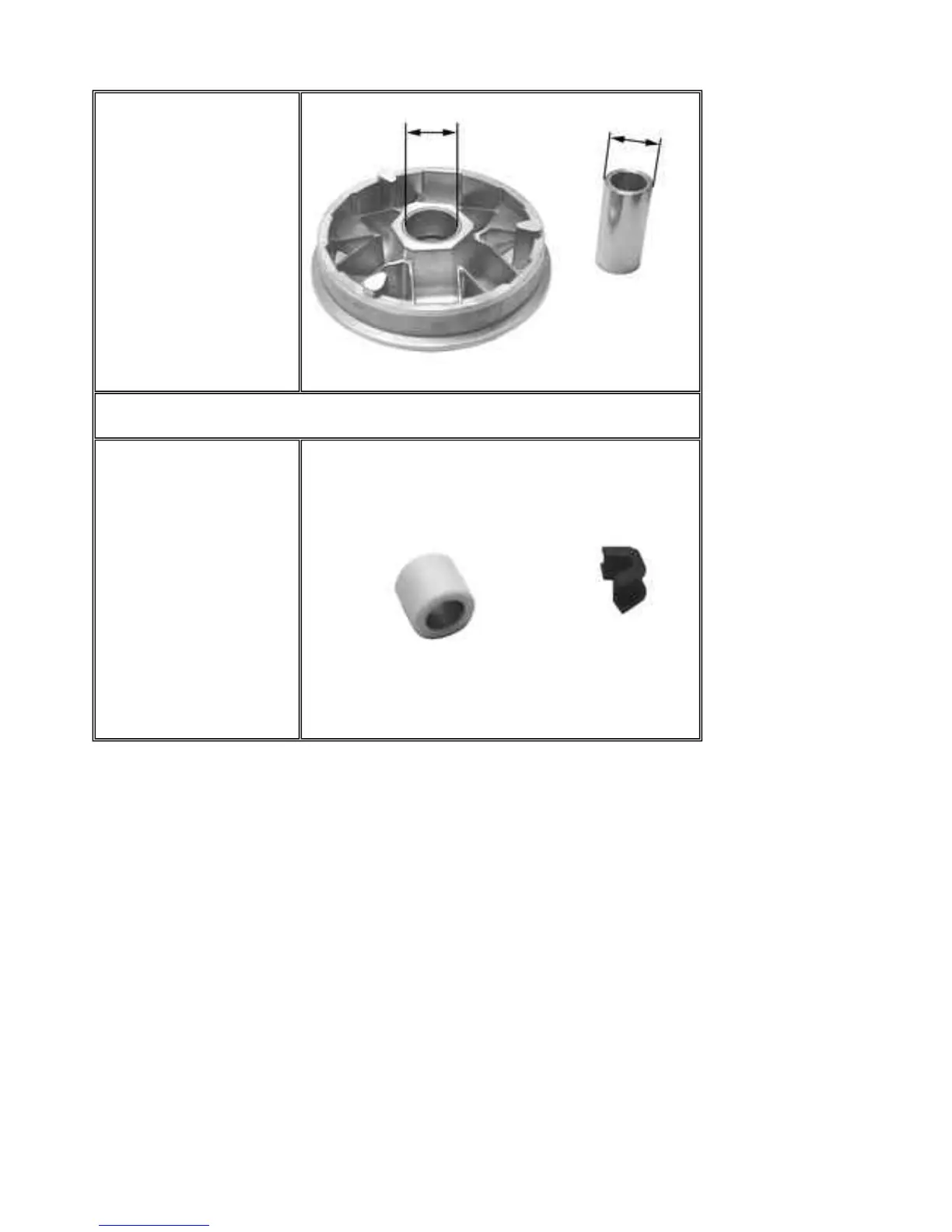

- Check that the inside
brasses shown in the figure
are not worn and measure the
inside diameter.
Maximum admissible
diameter: 30.12 mm
Standard diameter:
30.021 mm
Caution
:Do not lubricate or
clean the brasses
- Measure the pulley sliding
bushing outside diameter
shown in the figure.
Minimum admissible diameter: 29,95 mm.
Standard diameter: 29,959 mm.
- Check that the rollers are not
damaged or worn.
Minimum admissible
diameter: 24,5 mm
Standard diameter:
24,9 mm
- Check that the roller contrast
plate slide blocks are not
damaged.
- Check the wear of the roller
housings and of the belt
contact surfaces on both half-
pulleys.
PGO BR-500 ENGINE
P.10-12
Automatic Transmission
