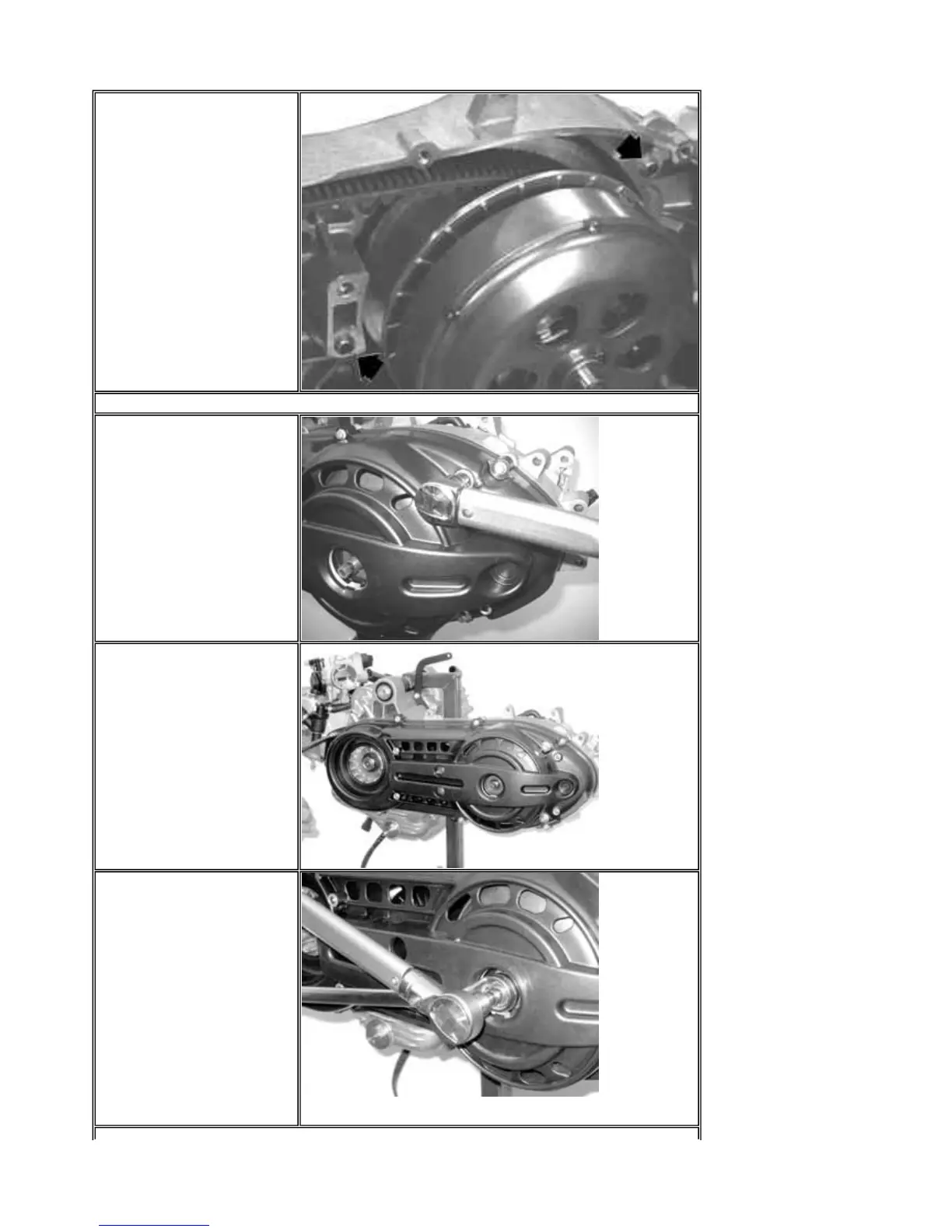

- Make sure that the 2
centering dowels are properly
inserted into the crankcase.
- Insert the transmission cover with the bearing and install the relevant attachments.
- Lock the four M8 screws.
Tightening torque:
M8 screws: 23 ~26 Nm
- Lock the M6 screws.
Tightening torque:
M6 screws: 11 ~13 Nm
- Insert the washers on the
driven pulley shaft.
N.B.: Insert the larger
washer first.
- Insert the flanged nut.
- Prepare the dynamometric
wrench for LH locking using a
machine hexagon wrench.
- Tighten the driven pulley
shaft fastening nut using a
misaligned wrench.
Tightening torque:
Driven pulley nut: 92 ~
100 Nm
