Phanteks ENTHOO PRO II - Installing Water Cooling; Radiator Locations and Sizes

17
120 FORM FACTOR
120 FORM FACTOR
max 135x530x32mm
120
240
360
480
SIDE
120 FORM FACTOR
max 120x450mm
120
240
360
BOTTOM
120 FORM FACTOR
max 145x530mm
140 FORM FACTOR
max 145*x530mm
120
140
240
280
360
480
420
FRONT
REAR
140 FORM FACTOR
120
140
TOP
120 FORM FACTOR
max 120x460mm
120
240
360

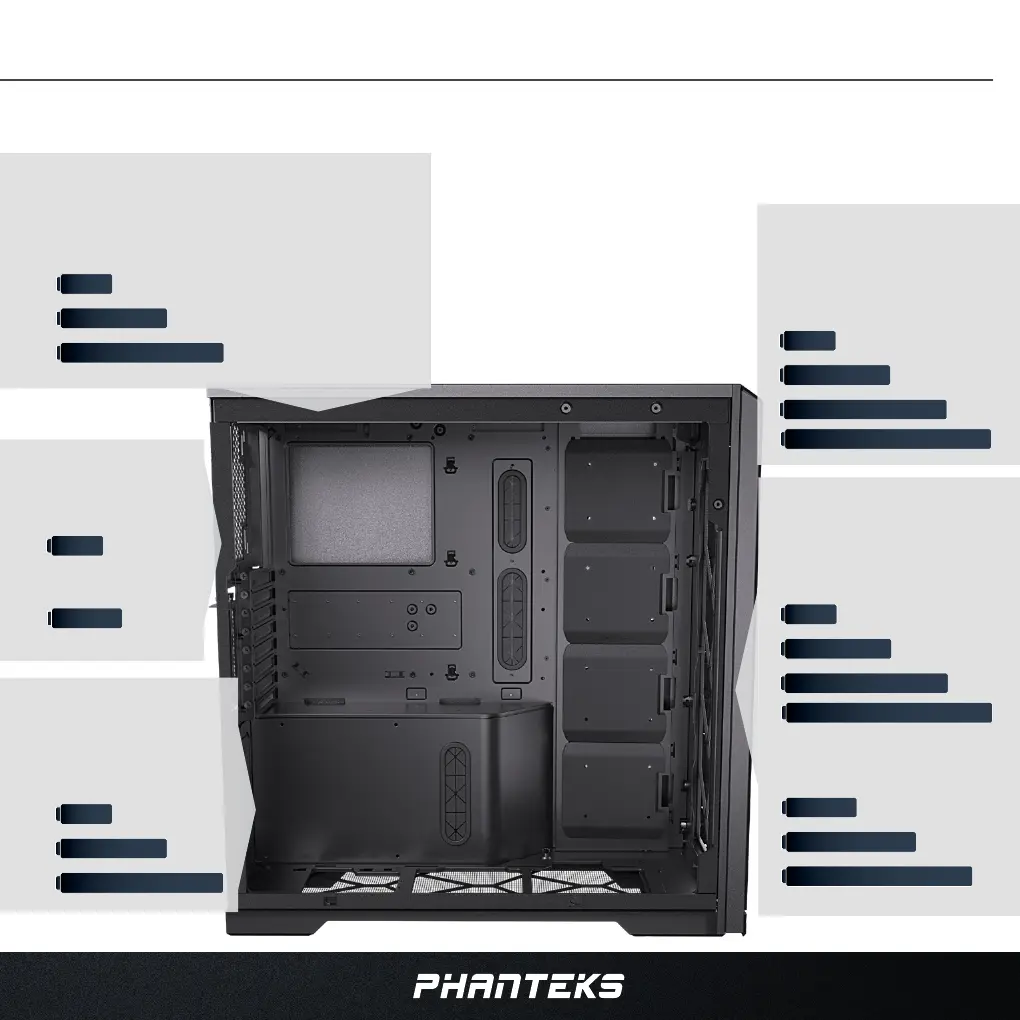

This overview shows all possible radiator form-factors, locations and clearances.
*max motherboard component height: 55mm
*160mm when SSD Covers rotated
INSTALLING WATER COOLING ENTHOO PRO II
