Phanteks Enthoo Series User Guide

11
IntA P2_D+
IntA P2_D-
GND
IntA P2_SSTX+
IntA P2_SSTX-
GND
IntA P2_SSRX+
IntA P2_SSRX-
Vbus
No Pin
ID
IntA P1_D+
IntA P1_D-
GND
IntA P1_SSTX+
IntA P1_SSTX-
GND
IntA P1_SSRX+
IntA P1_SSRX-
Vbus
USB 3.0
USB Power
Power supply
USB Power
USBP2-
USBP3-
USBP2+
USBP3+
GND
GND
NC
Internal LED strip (upgrade)
USB 2.0

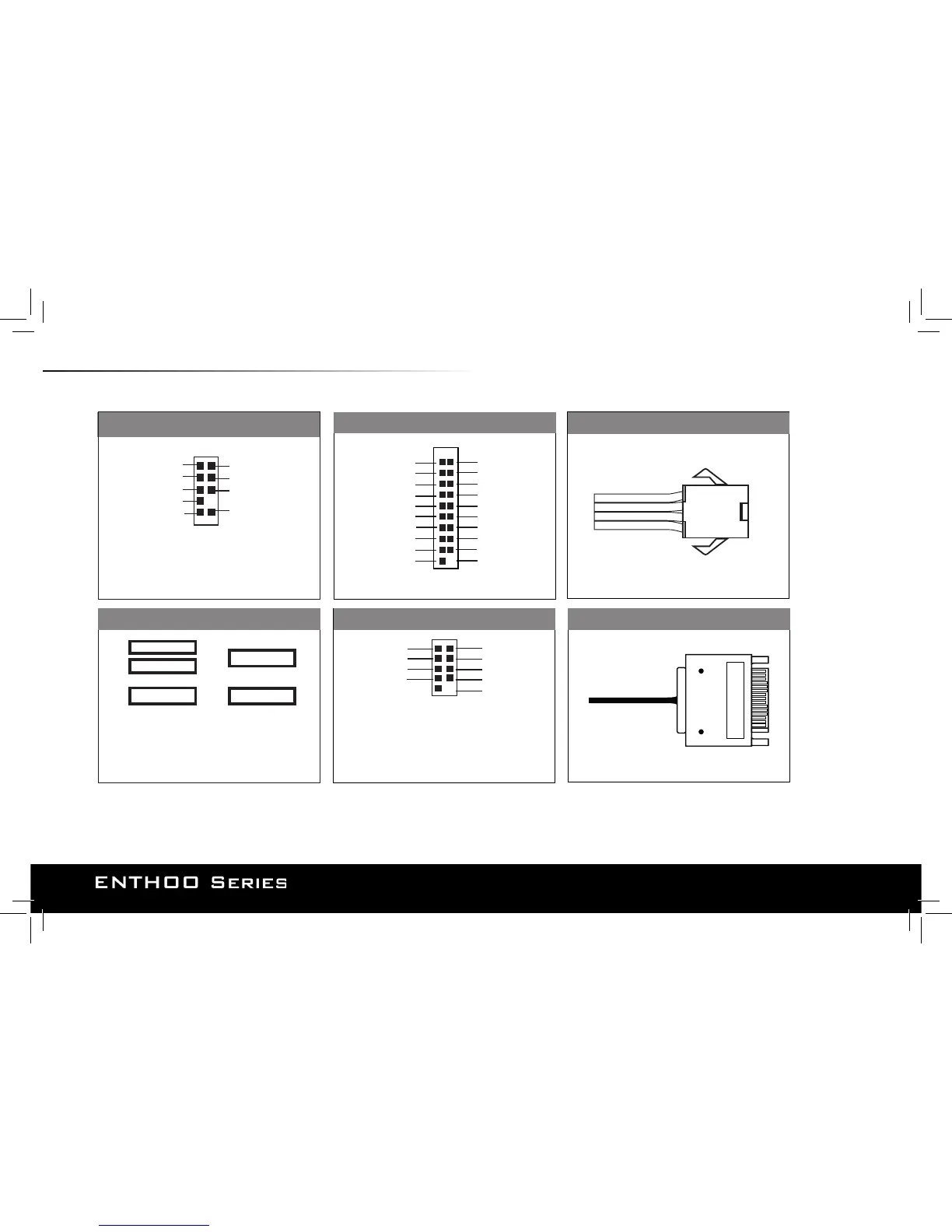

6. CONNECTIONS
AUDIO
AGND
AVCC
MIC2_JD
LINE2_JD
MIC2 L
MIC2 R
FRO-R
F_IO_SEN
FRO-L
PANEL
Power SW
Power LED +
Reset SW
H.D.D LED
Power LED -
SATA 12V POWER INPUT LIGHTING
LED 4PIN CONNECTOR LIGHTING

Phanteks Enthoo Series Specifications

General

Motherboard Support	ATX, E-ATX, Micro-ATX, Mini-ITX
Front Ports	USB 3.0, USB 2.0, Audio I/O
Material	Steel
Side Panel	Windowed
Case Type	Full Tower
