Phanteks EVOLV SHIFT XT User Manual

24
EVOLV SHIFT XTCABLE MANAGEMENT

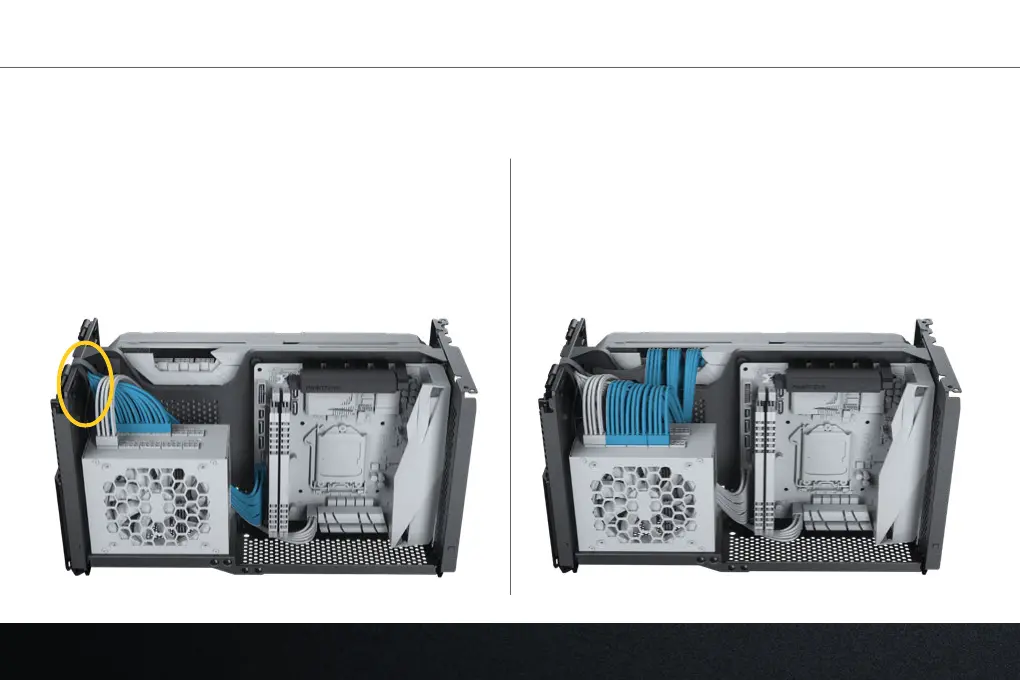

2. Install the 24-pin Motherboard cable like pictured below.
By making this loop around the 8-pin CPU cable,
less excessive cable needs to be stored behind the PSU.
3. Use the velcro tie to bind the 24-pin cable to the corner
of the chassis.
4. Install the 6/8-pin GPU cables like pictured below.
The excessive cable can be pushed behind the PSU like
the picture below.

Phanteks EVOLV SHIFT XT Specifications

General

Form Factor	Mini-ITX
Expansion Slots	2
CPU Cooler Height Support	Up to 72 mm
PSU Support	SFX, SFX-L
Material	Aluminum, Steel
Front I/O Ports	2x USB 3.0, 1x USB Type-C
Cooling Support	Up to 240mm Radiator
GPU Length Clearance	Up to 324 mm
Drive Bays	2x 2.5"
