29
EVOLV SHIFT XT

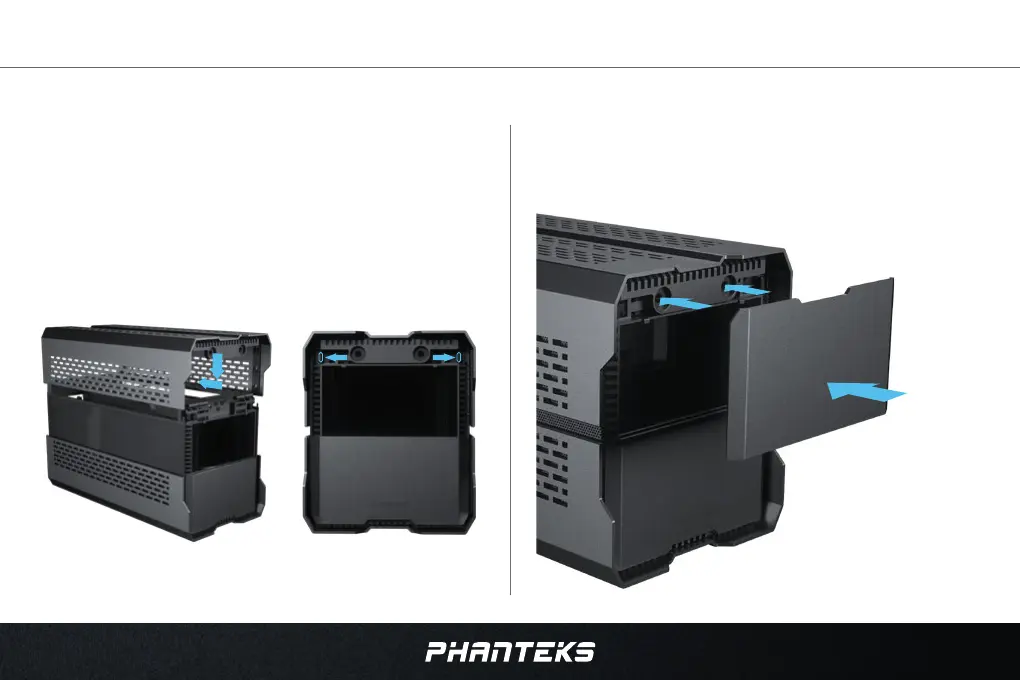

Re-install the top panel on the chassis
1. Place the top panel on the chassis
2. Slide the top panel to the rear
3. Secure the locks on the front
RE-INSTALLING EXTERNAL PANELS
Install the front cover
1. Place the magnetic aluminum front cover back on the front
panel.
3 3
1
2
