Using WinHC

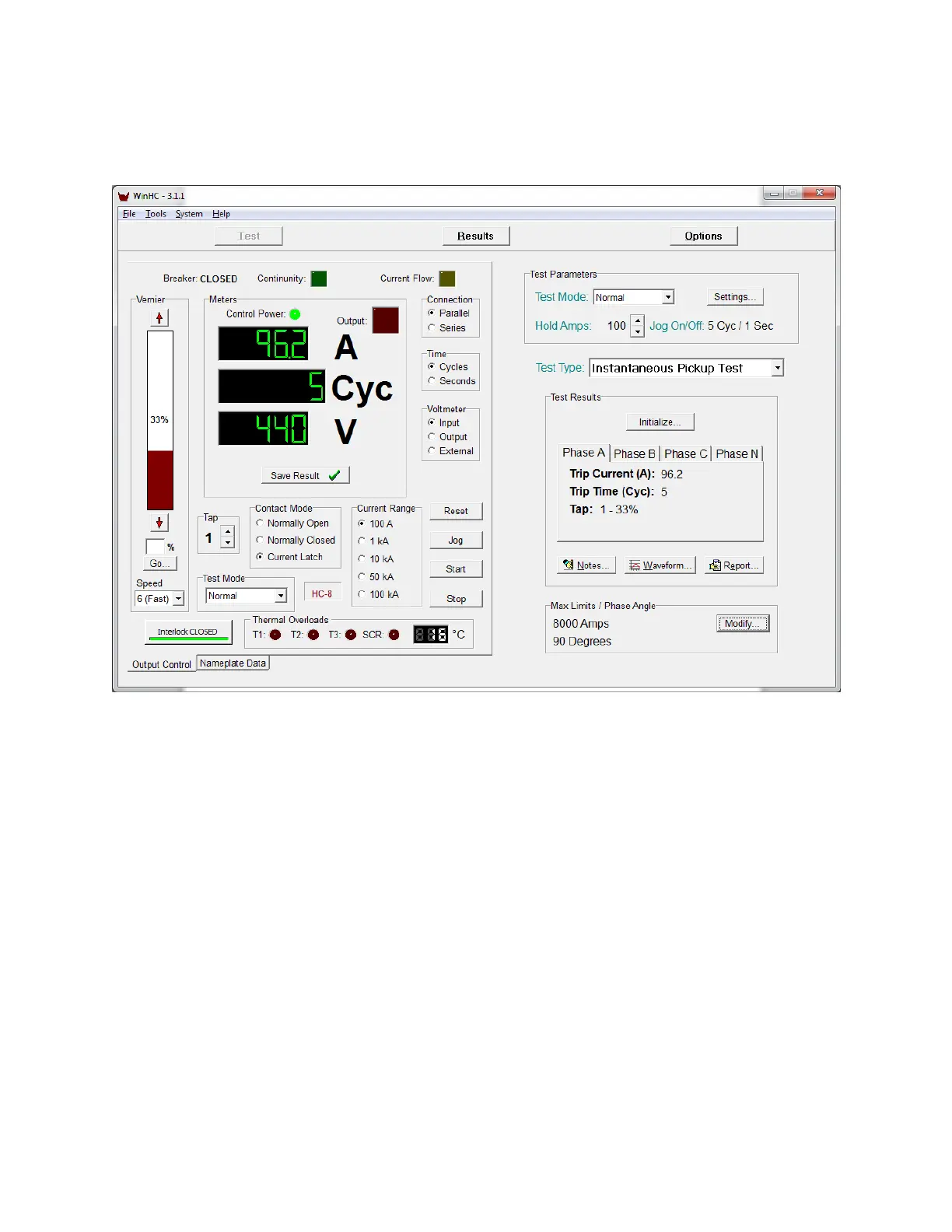

WinHC main screen
Navigating WinHC is made easy by the navigation buttons. These buttons are always accessible and
located on the heading bar of every screen. These buttons provide access to the major areas of WinHC:
Test, Results, and Options.
Test: The starting point for all circuit breaker tests. Shows the nameplate data, test parameters and test
results.
Results: Shows a list of your test history. From here you can generate test reports and view your history
of tests.
Options: Contains your system configuration and customization.
Output Control
The output control screen allows you to completely control the individual functions of the high current test
set: adjusting the vernier, selecting an output tap and current range, turning on the output, etc.
Vernier Control: The position of the vernier determines the level of the output voltage and current of the
WinHC. Click the up/down arrows to change the position of the vernier, or enter a vernier position and
click Go...
