Philips 2 Series - 7. Installation

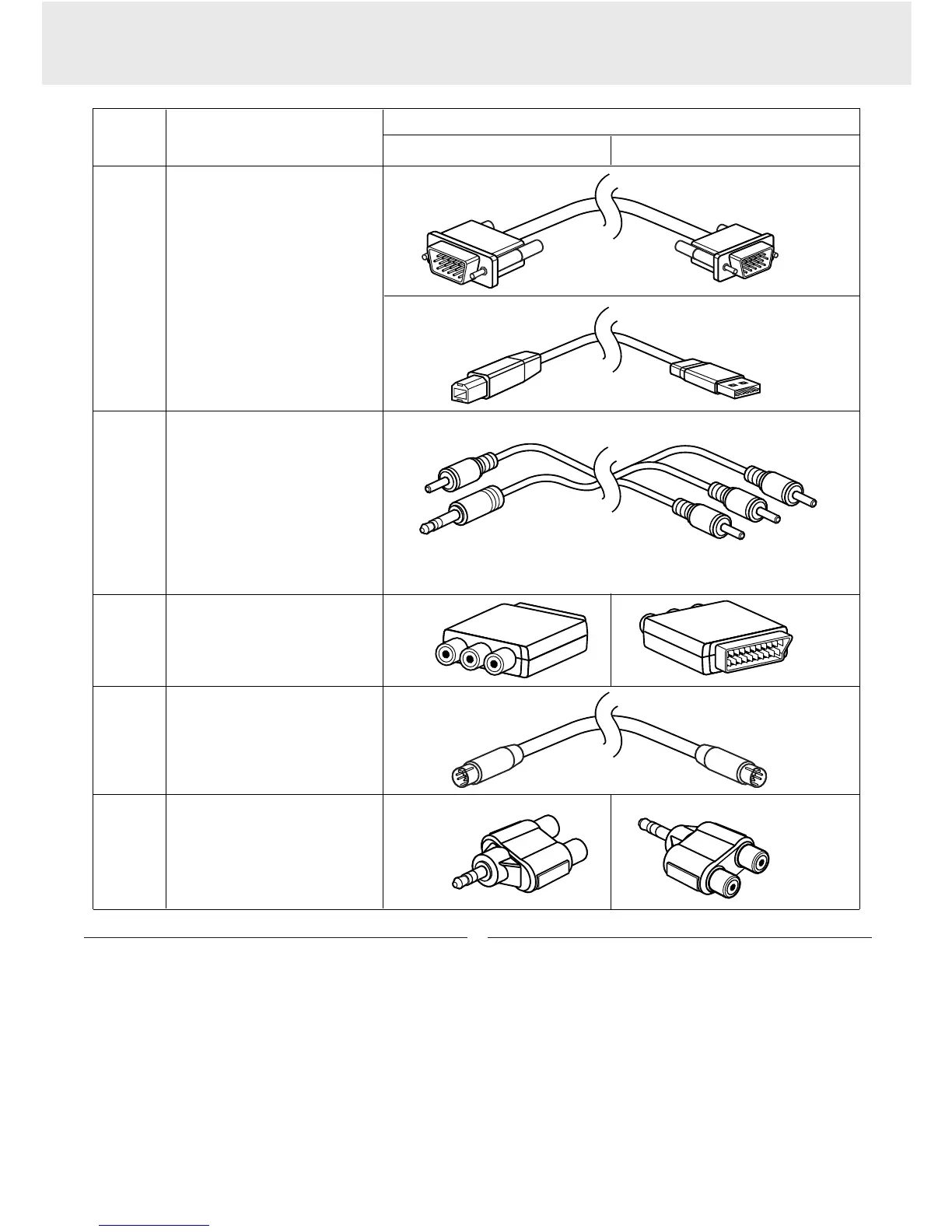

Video/computer cables and adapter
These accessories (1 to 5) are supplied with the product for
connecting the projector to computer/AV equipment.
The numbers in the left-hand column correspond with the
numbers in the connection diagrams on the following pages.
Optional accessories:
• LCA3111/00 – 200 W replacement lamp;
• LCA4117/00 – trackerball remote control;
• LCA4119/00 – RS-232 mouse receiver;
• LCA2210/00 – ceiling mount;
• LCA5300/00 – VGA extension cable (15 m);
• LCA5311/00 – component/HD input cable
(5 x RCA to 15p D-sub);
• LCA5312/00 – SCART/RCA adapter (SCART to 4 x RCA);
• LCA9000/20 – Easy Pad;
• Programmable VGA/MAC adapter (available via your support
centre as item 4822 263 2120 1)
7. Installation
10
CONNECTORS
Computer/AV product sideProjector side
Integrated VGA/USB Cable
CABLE/ADAPTER
Mini D-Sub
15P (male)
Stereo audio plug
(male) x 1
Mini D-Sub
15P (male)
RCA pin
(male) x 3
3
RCA Audio Video Cable
1
2
Scart/RCA-AV Adapter
USB connector
4P (male)
USB connector
4P (male)
(depending on region)
4 S-Video cable
Mini Din
(male) x 4
Mini Din
(male) x 4
5 RCA/Jack adapter
No.
RCA pin
(male) x 1
Video/computer cables and adapter
