Philips 220E1SB/00 - Electrical Block Diagram

Meridian 1
18

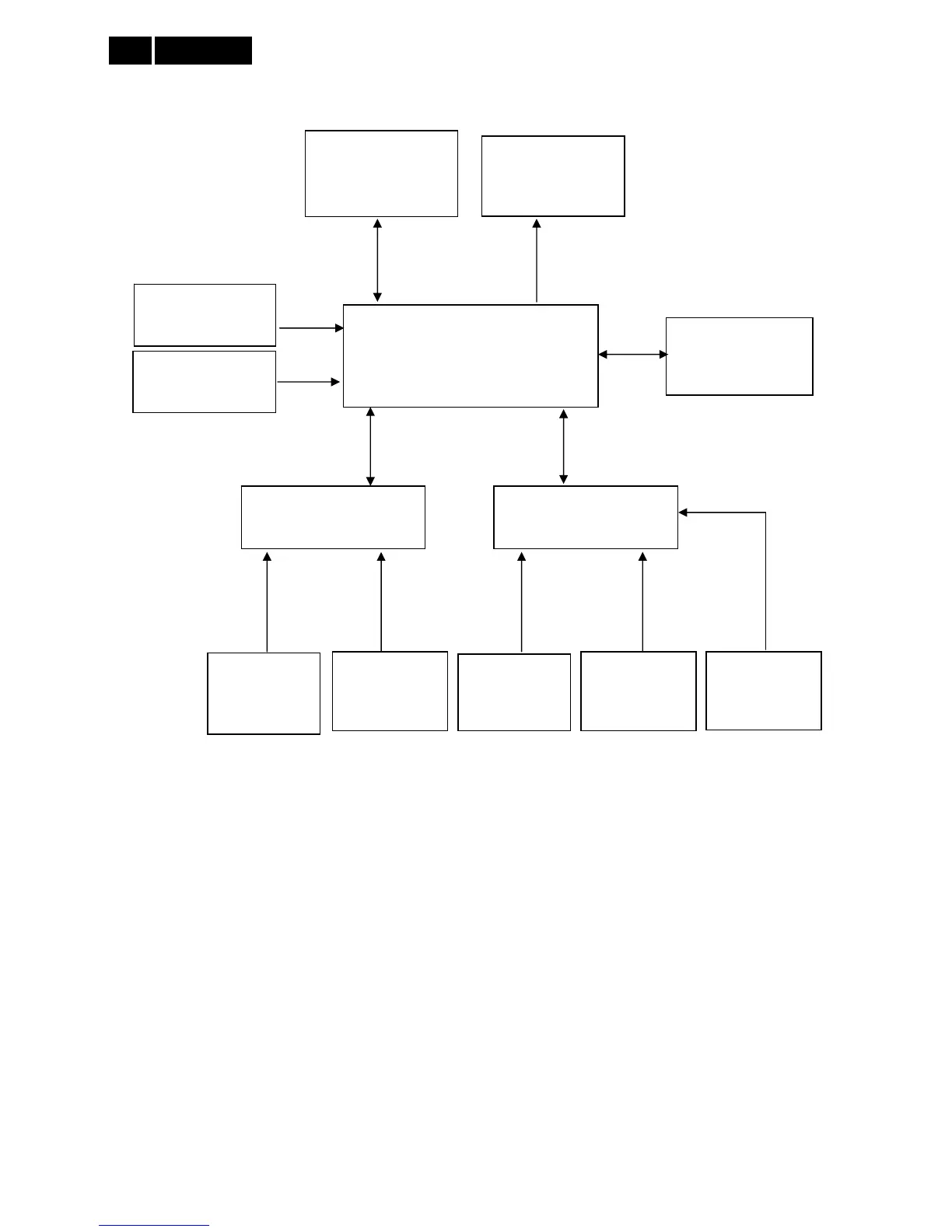

5.2 Electrical Block Diagram
5.2.1 Main Board
Flash Memory
PM25LV010A
(U402)
Panel Interface
(CN301)
Crystal 12MHz
(X401)
Keypad Interface
(CN402)
Scalar IC NT68667UFG/C
(Include MCU, ADC, OSD)
(U401)
D-Sub Connector
(CN101)
ESD
AZC099-04S
(U103)
H sync
V sync
RGB
ESD
AZC099-04S
(U104)
VGA_R+
VGA_G+
VGA_B+
H_Sync
V_Sync
DSUB_SCL
DSUB_SDA
EEPROM M24C16
(U403)
DVI Connector
(CN102)
ESD
AZC099-04S
(U105)
ESD
AZC099-04S
(U106)
DAT0+/-
RXCP
RXCN
DAT2+/-
RX1N
RX1P
DVI_SCL
DVI_SDA
ESD
AZC199-04S
(U107)
HPD
DVI_HPD
